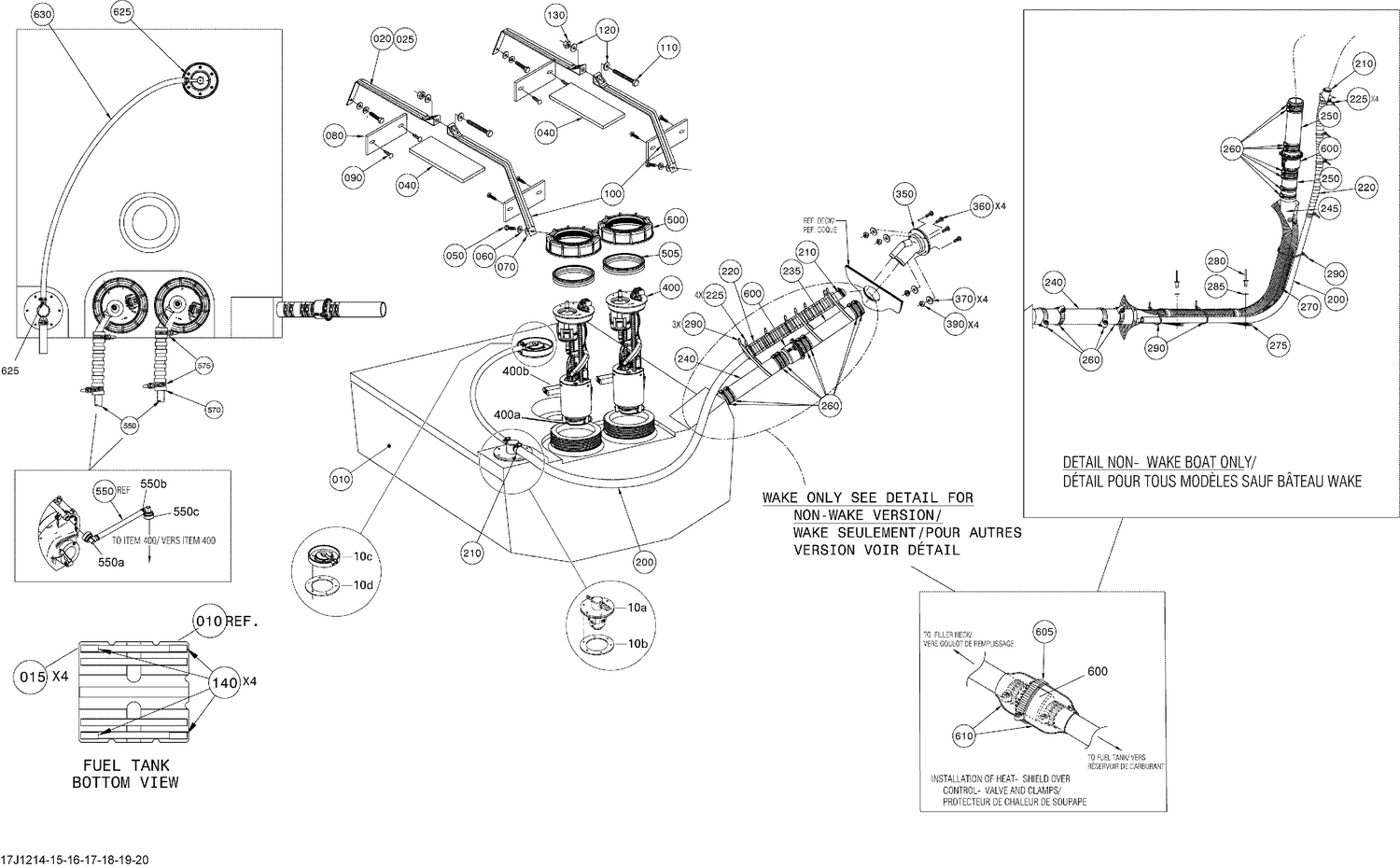

| Ref | Part Number | Description |
|---|
| 10a |
275500863 |
Fuel Limit Vent Valve |
| 10b |
204560439 |
Gasket |
| 10c |
275500838 |
Fuel Grade Valve |
| 10d |
204560440 |
Gasket |
| 15 |
204560115 |
PROTECTOR PAD - Call your local BRP dealership |
| 20 |
204560235 |
FUEL TANK STRAP - Call your local BRP dealership |
| 25 |
293830044 |
PROTECTOR PAD - Call your local BRP dealership |
| 40 |
204560191 |
NEOPRENE PAD - Call your local BRP dealership |
| 50 |
207183060 |
Hex. Screw M8 X 30 |
| 60 |
234181601 |
Lock Washer 8 mm, Stainless |
| 70 |
234082600 |
Flat Washer 8 mm, Stainless |
| 80 |
204060702 |
MUFFLER RUBBER PAD - Call your local BRP dealership |
| 90 |
293730006 |
Black, Dart |
| 100 |
204560181 |
FUEL TANK STRAP - Call your local BRP dealership |
| 110 |
207188060 |
HEX. SCREW M8 X 80 - Call your local BRP dealership |
| 120 |
234082600 |
Flat Washer 8 mm, Stainless |
| 130 |
232581600 |
Hex. Elastic Nut M8 |
| 140 |
202000024 |
NEOPRENE, METER - Call your local BRP dealership |
| 200 |
204560358 |
HOSE 16 MM - Call your local BRP dealership |
| 210 |
293650069 |
NORMA CLAMP - Call your local BRP dealership |
| 220 |
204130176 |
SLIT CONDUIT 1 - Call your local BRP dealership |
| 225 |
414115200 |
Tie-Rap 180 mm |
| 235 |
XXX |
Not Available As Spare Parts |
| 240 |
204560401 |
FILLER NECK HOSE - Call your local BRP dealership |
| 245 |
204560435 |
FILLER NECK HOSE - Call your local BRP dealership |
| 250 |
204560401 |
FILLER NECK HOSE - Call your local BRP dealership |
| 260 |
275500823 |
NORMA CLAMP - Call your local BRP dealership |
| 270 |
204130408 |
SPLIT CONDUIT - Call your local BRP dealership |
| 275 |
204560375 |
CLAMP - Call your local BRP dealership |
| 280 |
293150043 |
Pop Rivet 3/16" |
| 285 |
234052600 |
Flat Washer 5 mm, Stainless |
| 290 |
293750008 |
Tie Wrap 368 mm |
| 350 |
204560453 |
FILLER NECK ASS'Y - Call your local BRP dealership |
| 360 |
208642560 |
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership |
| 370 |
234040600 |
Flat Washer 4 mm |
| 390 |
232541600 |
Elastic Stop Nut M4 |
| 400a |
270600113 |
Fuel Filter This part replaces 270600108. |
| 400b |
275500780 |
Sensor Lever |
| 500 |
204100257 |
SPECIAL NUT M150 - Call your local BRP dealership |
| 505 |
293250173 |
Gasket |
| 550 |
204560396 |
HOSE 5/16 - Call your local BRP dealership |
| 550a |
275500700 |
Quick Attach 90° |
| 550b |
293650084 |
Norma Clamp |
| 550c |
293710105 |
Elbow Fitting 90° |
| 570 |
204550028 |
SLIT CONDUIT, METER - Call your local BRP dealership |
| 575 |
293750002 |
Tie Wrap 142 mm |
| 600 |
275500836 |
FILLER HOSE INLET CONTROL VALVE - Call your local BRP dealership |
| 605 |
293650179 |
Tridon Clamp |
| 610 |
204560444 |
HEAT SHIELD - Call your local BRP dealership |
| 625 |
293650084 |
Norma Clamp |
