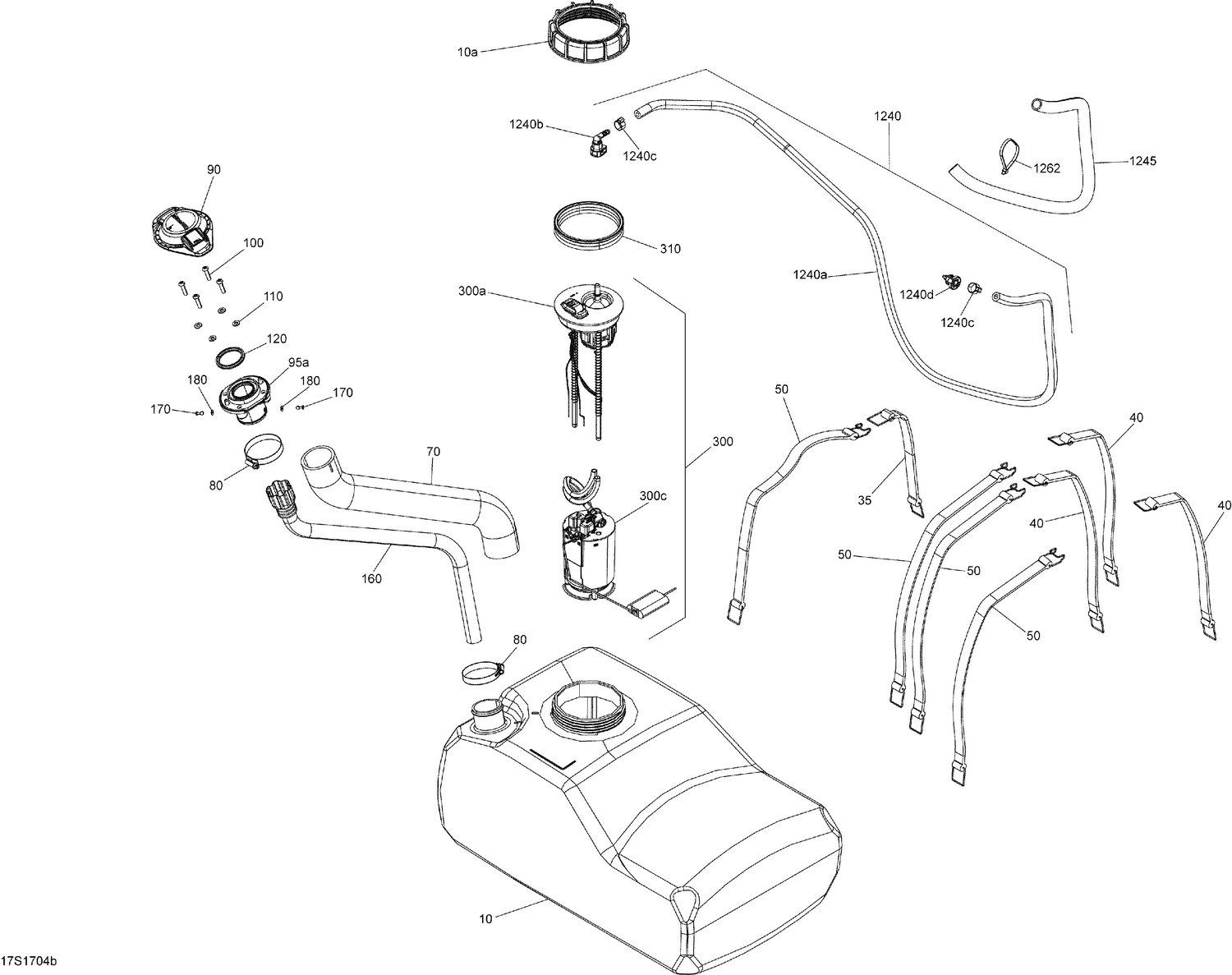

02- Fuel System - All Models
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 250100062 | Special Nut M130 |
| 35 | 293850087 | Fuel Tank Strap |
| 40 | 293850093 | Fuel Tank Strap |
| 50 | 293850101 | Fuel Tank Strap |
| 70 | 275500917 | HOSE - Call your local BRP dealership |
| 80 | 293650081 | Norma Clamp |
| 90 | 275500832 | Fuel Cap Ass'y |
| 95a | 275500848 | Fuel Filler Neck |
| 100 | 250000328 | Torx Screw M6 X 25, Scotch Grip |
| 110 | 234061600 | Stainless Flat Washer M6 |
| 120 | 293300139 | X-Ring |
| 160 | 275500757 | FILLER NECK, INTERIOR - Call your local BRP dealership |
| 170 | 293150032 | RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 300a | 275500780 | Sensor Lever |
| 300c | 270600113 | Fuel Filter This part replaces 270600108. |
| 310 | 293250173 | Gasket |
| 1240a | 219704395 | HOSE I.D. 7.9MM 3000MM LONG - Call your local BRP dealership |
| 1240b | 275500921 | Quick Disconnect |
| 1240c | 293650053 | Crimp Clamp |
| 1240d | 293710105 | Elbow Fitting 90° |
| 1245 | 219704408 | Tubing 16 Mm 1000Mm Long |
