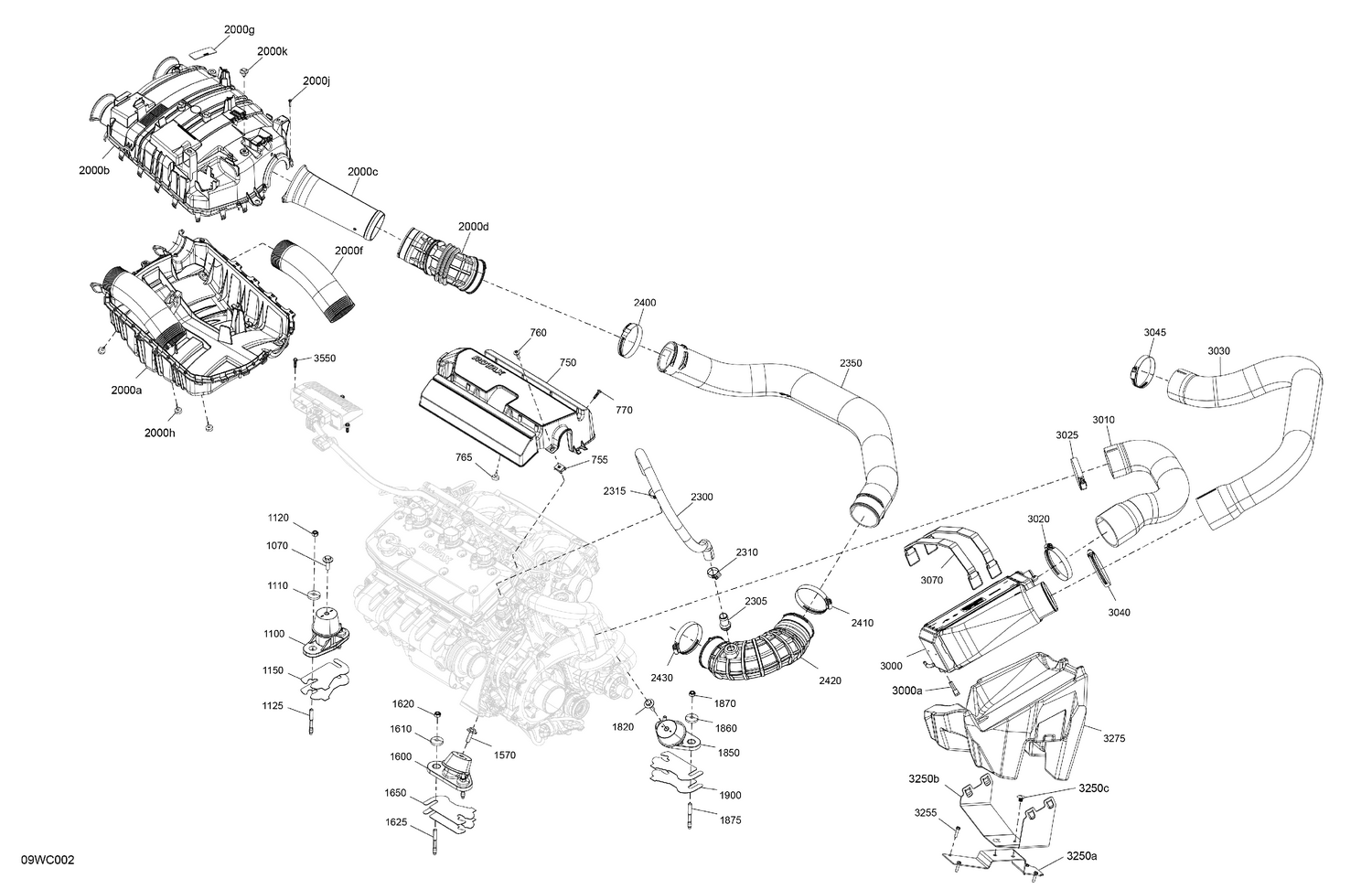

02- MECHANICS - Engine
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 750 | 270001174 | Engine Cover |
| 755 | 420942108 | Panel Nut M6 X 1 |
| 760 | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 765 | 708000759 | Rubber Stopper |
| 770 | 241152060 | Hex. Flange Screw K50 X 20 |
| 1070 | 250000933 | Hex Sems Screw M8 X 30 S.Grip |
| 1100 | 270001096 | Engine Support Ass'y |
| 1110 | 250200018 | Cone Washer |
| 1120 | 232581200 | Hex. Elastic Nut M8 Brass |
| 1125 | 250001156 | Stud M8X1.25X70.5 S.GRIP |
| 1150 | 270000762 | Shim 1.3 mm |
| 1570 | 250000933 | Hex Sems Screw M8 X 30 S.Grip |
| 1600 | 270001081 | Engine Support Ass'y |
| 1610 | 250200018 | Cone Washer |
| 1620 | 232581200 | Hex. Elastic Nut M8 Brass |
| 1625 | 250001156 | Stud M8X1.25X70.5 S.GRIP |
| 1650 | 270000762 | Shim 1.3 mm |
| 1820 | 250000933 | Hex Sems Screw M8 X 30 S.Grip |
| 1850 | 270001081 | Engine Support Ass'y |
| 1860 | 250200018 | Cone Washer |
| 1870 | 232581200 | Hex. Elastic Nut M8 Brass |
| 1875 | 250001156 | Stud M8X1.25X70.5 S.GRIP |
| 1900 | 270000762 | Shim 1.3 mm |
| 2000a | 273000342 | Airbox Base |
| 2000b | 273000394 | Intake Silencer Cover |
| 2000c | 273000359 | Intake Hose |
| 2000d | 273000375 | Hose Connector |
| 2000f | 273000290 | Air Silencer Hose |
| 2000g | 219903177 | Air Silencer Notice Decal |
| 2000h | 708000759 | Rubber Stopper |
| 2000j | 250000287 | Flange Torx Screw K40 X 16 |
| 2000k | 710008294 | Mount Dart |
| 2300 | 270001070 | Formed Hose |
| 2305 | 273000234 | Breather Valve |
| 2310 | 293650284 | Gear Clamp |
| 2315 | 293650285 | Clamp Gear |
| 2350 | 273000376 | Central Intake Duct |
| 2400 | 293650179 | Tridon Clamp |
| 2410 | 293650179 | Tridon Clamp |
| 2420 | 273000417 | Molded Hose |
| 2430 | 293650179 | Tridon Clamp |
| 3000a | 271001942 | Anode Zinc |
| 3010 | 273000399 | Formed Hose |
| 3020 | 293650244 | Tridon Gear Clamp |
| 3025 | 293650179 | Tridon Clamp |
| 3030 | 273000400 | Formed Hose |
| 3040 | 293650244 | Tridon Gear Clamp |
| 3045 | 293650179 | Tridon Clamp |
| 3070 | 293850093 | Fuel Tank Strap |
| 3250a | 270001113 | Intercooler Support |
| 3250b | 270001114 | Intercooler Support |
| 3250c | 293730113 | Christmas Tree Anchorage |
| 3255 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 3275 | 292002341 | Foam Support |
