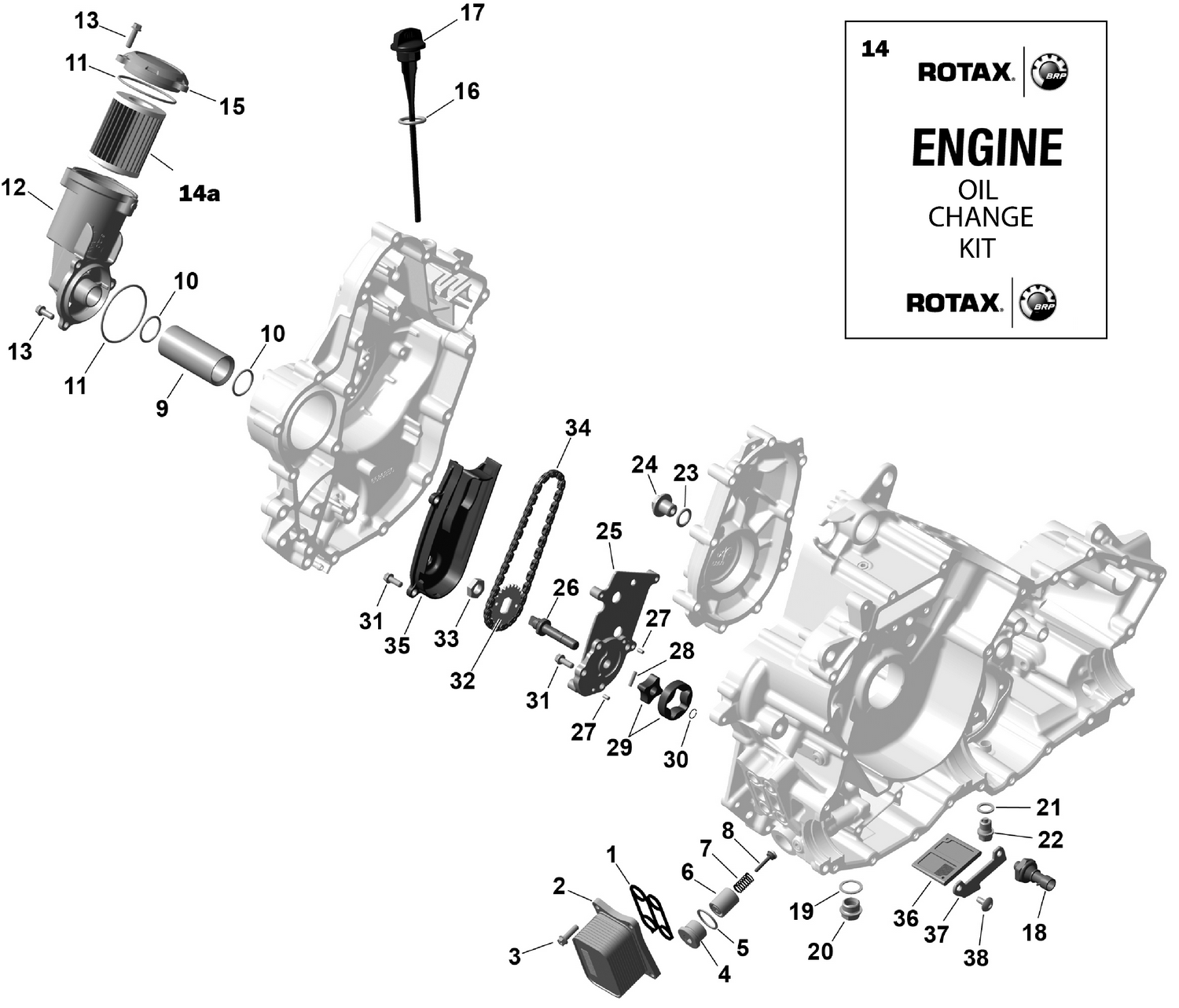

01- ROTAX - Engine Lubrication
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420890181 | Radiator |
| 3 | 420440164 | Torx Flange Screw M6 X 16 |
| 4 | 420640271 | Plug Screw |
| 5 | 420650465 | Gasket Ring |
| 6 | 420256487 | Housing |
| 7 | 420939485 | Compression Spring |
| 8 | 420656370 | Pressure Relief Valve |
| 9 | 420856880 | Oil Pipe |
| 12 | 420611210 | Oil Filter Housing |
| 13 | 420440207 | Torx Flange Screw M6 X 20 |
| 14 | 9779480 | Can-Am Oil Change Kit 5W40 ACE 650C |
| 14a | 420256188 | Oil Filter |
| 15 | 420612135 | Oil Filter cover |
| 17 | 420256821 | Oil Lever Tube |
| 18 | 420256915 | Oil Pressure Switch |
| 20 | 420840278 | Drain Plug M18 X 1.5 This part replaces 420840277. |
| 22 | 420241787 | Magnetic Drain Plug M12 |
| 24 | 420241662 | Plug Screw M14 X 1.5 |
| 25 | 420210655 | Oil Pump Cover |
| 26 | 420220862 | Oil Pump Shaft |
| 27 | 420929075 | Needle Pin |
| 28 | 420232731 | Needle Pin |
| 29 | 420256355 | Oil Pump Rotor Set |
| 31 | 420440164 | Torx Flange Screw M6 X 16 |
| 32 | 420254441 | Drive Gear 25 Teeth |
| 33 | 420642059 | Hexagonal Nut M12 X 1 |
| 34 | 420297055 | Silent Chain |
| 35 | 420251341 | Chain Guide |
| 36 | 420256585 | Oil Sieve |
| 37 | 420612072 | Cover Sieve |
