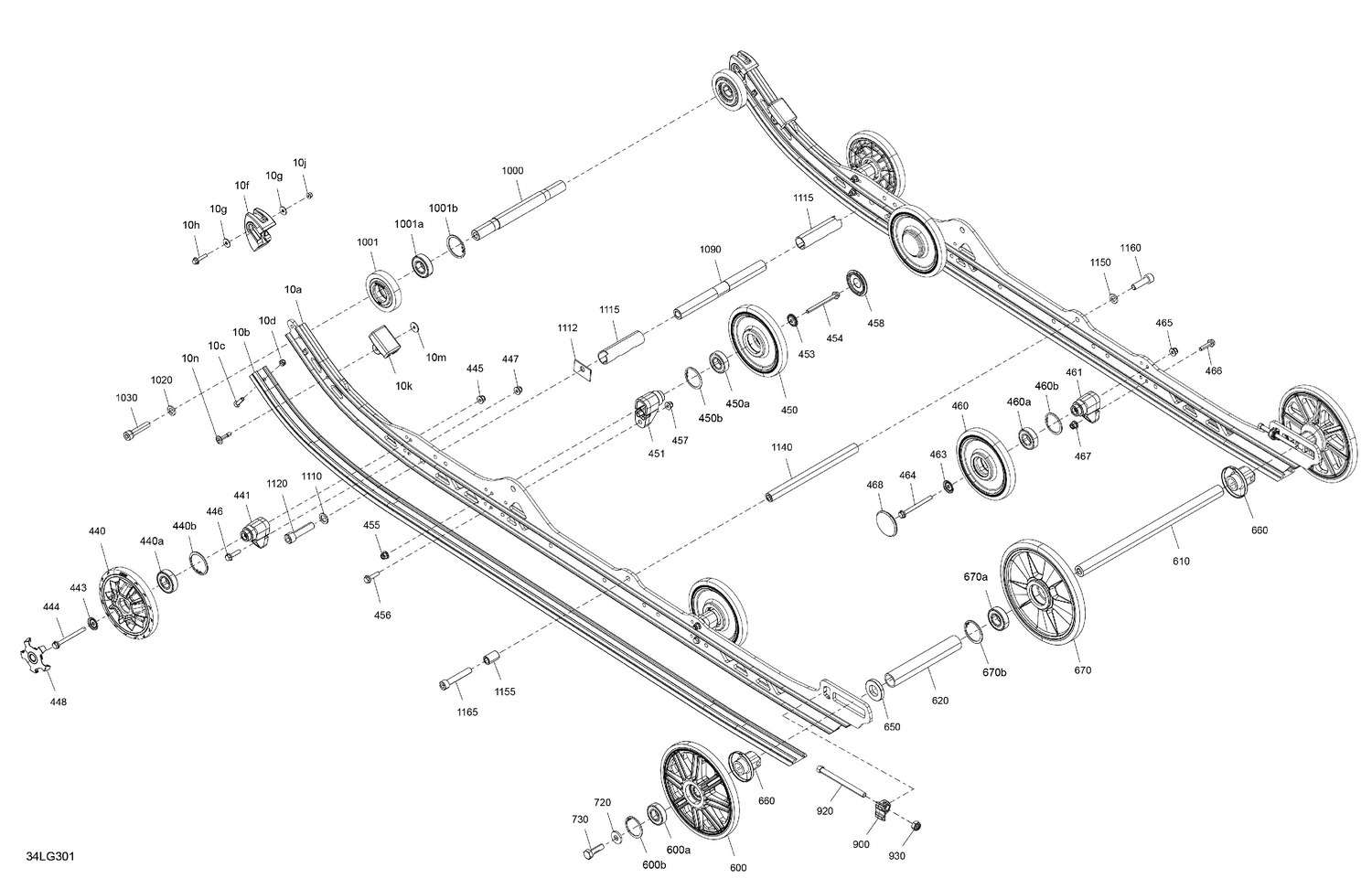

05- Suspension - Rear - Lower Section
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 503196534 | Rail Suspension 154 |
| 10b | 503193199 | Slider 154 |
| 10c | 208562531 | Phillips Screw M6 X 25 |
| 10d | 232561414 | Elastic Stop Nut M6 |
| 10f | 503196874 | Rail Protector |
| 10g | 250200140 | Washer |
| 10h | 207652544 | Hex. Flange Screw M5 X 25 |
| 10j | 233251434 | Flanged Elastic Nut M5 This part replaces 233251414. |
| 10k | 503190576 | Rubber Stopper |
| 10m | 503191273 | Washer |
| 10n | 293150256 | Rivet Ornit 4.8 X 27.5 |
| 440a | 503190396 | Ball Bearing |
| 440b | 415129371 | Retaining Ring |
| 441 | 503193894 | Casted Support |
| 443 | 503191820 | Wheel Cup M6 |
| 444 | 250000944 | Hex. Flange Screw M6 X 70 |
| 445 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 446 | 250000945 | Hex. Flange Screw M6 X 25 |
| 447 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 448 | 503198173 | Deep Black, Wheel Cap |
| 450a | 503190396 | Ball Bearing |
| 450b | 415129371 | Retaining Ring |
| 451 | 503193894 | Casted Support |
| 453 | 503191820 | Wheel Cup M6 |
| 454 | 250000944 | Hex. Flange Screw M6 X 70 |
| 455 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 456 | 250000945 | Hex. Flange Screw M6 X 25 |
| 457 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 458 | 503192771 | Black, Wheel Cap |
| 460a | 503190396 | Ball Bearing |
| 460b | 415129371 | Retaining Ring |
| 461 | 503193894 | Casted Support |
| 463 | 503191820 | Wheel Cup M6 |
| 464 | 250000944 | Hex. Flange Screw M6 X 70 |
| 465 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 466 | 250000945 | Hex. Flange Screw M6 X 25 |
| 467 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 468 | 503192771 | Black, Wheel Cap |
| 600a | 503190396 | Ball Bearing |
| 600b | 415129371 | Retaining Ring |
| 610 | 503196754 | Axle Rear |
| 620 | 503196317 | Spacer |
| 650 | 503190432 | Washer |
| 660 | 503196246 | Rear Wheel Support |
| 670a | 503190396 | Ball Bearing |
| 670b | 415129371 | Retaining Ring |
| 720 | 503190439 | Washer |
| 730 | 250000817 | Hex Screw With Nilon Patch, M10 X 35 |
| 900 | 503194266 | Tensioner |
| 920 | 503194267 | Hex. Cap Screw M8 X 95 |
| 930 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1000 | 503197877 | Front Wheel Shaft |
| 1001a | 503190396 | Ball Bearing |
| 1001b | 415129371 | Retaining Ring |
| 1020 | 503192496 | Washer |
| 1030 | 205505054 | Socket Screw |
| 1090 | 503195775 | Shock Lower Shaft |
| 1110 | 503192491 | Washer |
| 1112 | 605449294 | Support Plate |
| 1115 | 503197324 | Sleeve |
| 1120 | 205525554 | Socket Screw |
| 1140 | 503191260 | Axle Strap |
| 1150 | 503192496 | Washer |
| 1155 | 503195837 | Limiter Bussing |
| 1160 | 205503554 | Socket Head Screw M10 X 35 |
