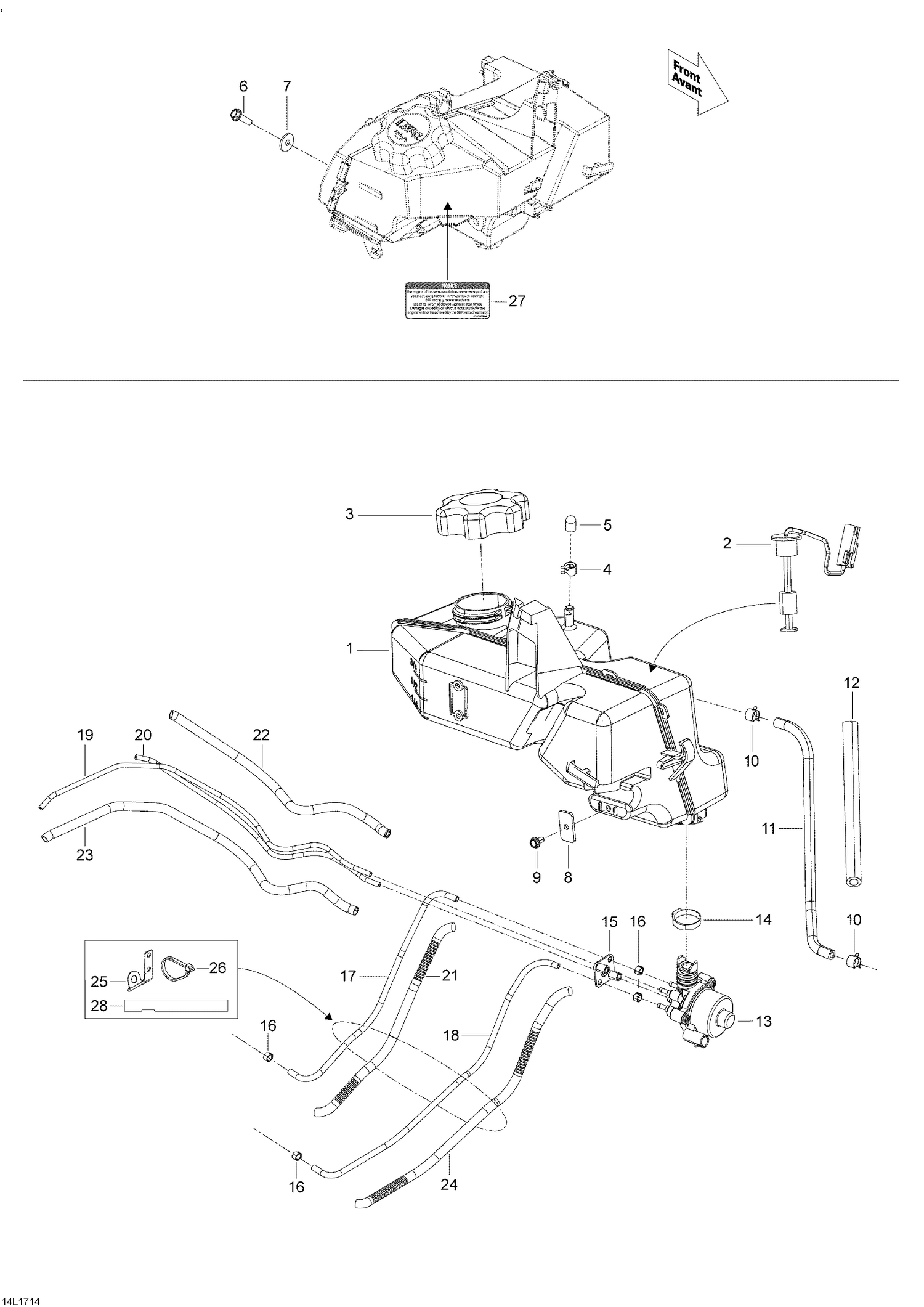

02- Oil System 2 Strokes
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 519000340 | Oil Tank This part replaces 519000251. |
| 2 | 515176978 | Level Sensor |
| 3 | 519000273 | Cap |
| 4 | 293650043 | Clamp |
| 5 | 519000216 | Cap |
| 6 | 250000768 | Hex. Flange Screw M6 x 20 |
| 7 | 224061201 | Flat Washer |
| 8 | 519000179 | Bracket |
| 9 | 241151640 | Hex. Flange Screw K50 x 16 |
| 10 | 414554800 | Spring Clamp |
| 11 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership |
| 12 | 415079900 | Protector Tube |
| 13 | 519000376 | Pump_Hydraulic This part replaces 519000323. |
| 14 | 293650099 | Crimp Clamp |
| 15 | 519000271 | Bracket |
| 16 | 293650100 | Crimp Clamp |
| 17 | 519000182 | Hose (340mm) |
| 18 | 519000182 | Hose (410mm) |
| 19 | 519000184 | Hose (460mm) |
| 20 | 519000184 | Hose (360mm) |
| 21 | 515175442 | Protector Tube |
| 22 | 515175442 | Protector Tube |
| 23 | 515175442 | Protector Tube |
| 24 | 515175442 | Protector Tube |
| 25 | 519000245 | Bracket |
| 26 | 293750002 | Tie-Rap 142 mm |
| 27 | 516006904 | WARNING DECAL - Call your local BRP dealership |
