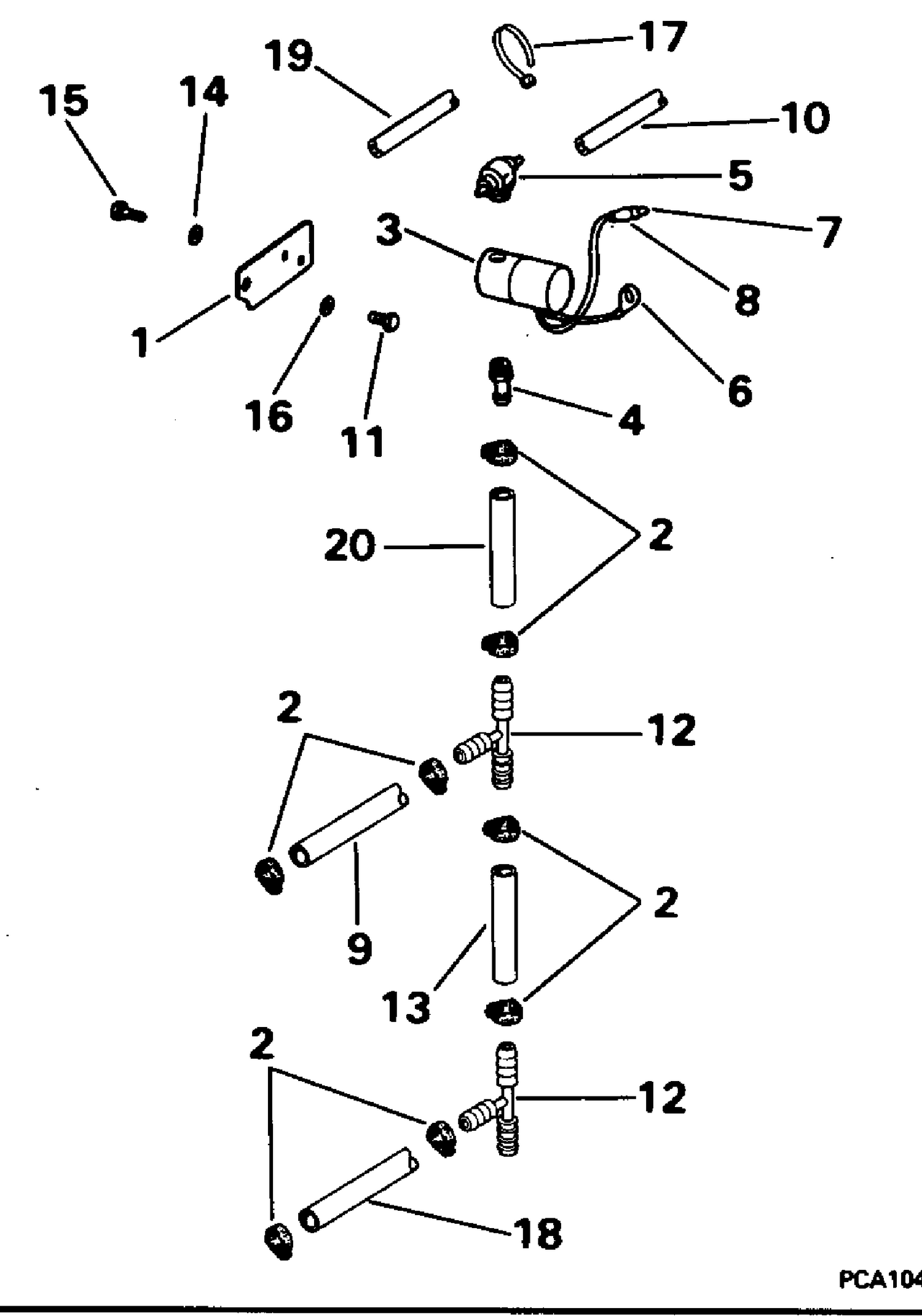

| Ref | Part Number | Description |
|---|
| 1 |
0340149 |
BRACKET, Primer mntg. |
| 2 |
0340328 |
CLAMP |
| 3 |
0436600 |
PRIMER SOLENOID ASSY. |
| 5 |
0341926 |
FITTING, Outlet |
| 9 |
HOSE, |
Upper tee to upper carb., 3 1/2 in. (8 mm) |
| 10 |
HOSE, |
Primer to lower carb., 9 1/4 in. (235m ) |
| 11 |
0203023 |
SCREW, Bracket to upper carb. |
| 12 |
0340162 |
TEE, Fuel inlet |
| 13 |
HOSE, |
Lower tee to upper tee, 4 in. (102mm) |
| 15 |
0319008 |
GROMMET, Cable, lower motor cover |
| 17 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 18 |
HOSE, |
Lower tee to lower carb., 3 1/2 in. (8 mm) |
| 19 |
HOSE, |
Primer to upper carb., 3 3/4 in. (95mm ) |
