| Ref | Part Number | Description |
|---|
| 1 |
0393752 |

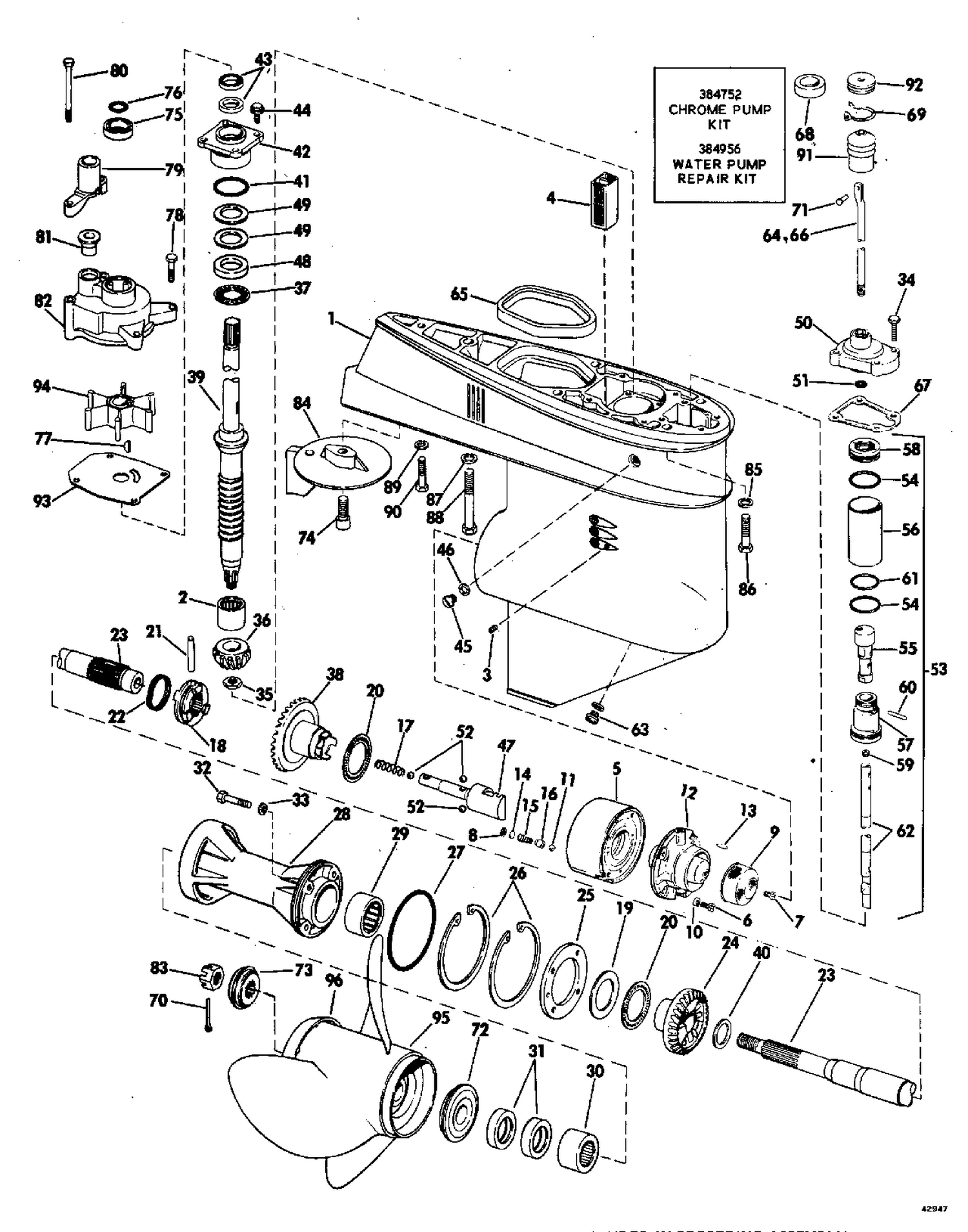

GEARCASE & BEARING ASSY. This part replaces 0385560. |
| 5 |
0385515 |
OIL POUMP ASSEMBLY |
| 16 |
0322879 |
GUIDE,Ball valve This part replaces 0318568. |
| 17 |
0318575 |
SPRING DETENT |
| 23 |
0386282 |
PROPELLAR SHAFT ASSY. |
| 33 |
0317178 |
O RING |
| 34 |
0909533 |
SCREW, Pressure relief valve cover This part replaces 0316357. |
| 36 |
0315533 |
PINIOIN GEAR |
| 38 |
0385568 |
GEAR ASSY., Forward |
| 39 |
0385102 |
DRIVESHAFT ASSY., Std |
| 39 |
0385103 |
DRIVESHAFT ASSY., Long |
| 41 |
0313754 |
O RING |
| 42 |
0435519 |
BEARING HOUSING ASSY. This part replaces 0385086. |
| 43 |
0321459 |
OIL RETAINER, Housing This part replaces 0315882. |
| 44 |
0329894 |
SCREW This part replaces 0302510. |
| 47 |
0386592 |
SHIFT ROD & PLUNGER ASSY |
| 49 |
0317231 |
SHIM, . 002" |
| 50 |
0385756 |
COVER ASSEMBLY |
| 53 |
0385523 |
SHIFT ASSY, Gearcase |
| 64 |
0318404 |
SHIFT ROD, Long |
| 66 |
0318403 |
SHIFT ROD, Standard |
| 69 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 71 |
0388676 |
PIN, Shaft lever to shift rod This part replaces 0318583. |
| 74 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 78 |
0909533 |
SCREW, Pressure relief valve cover This part replaces 0316357. |
| 79 |
0315838 |
BRACKET, Water tube |
| 81 |
0315837 |
GROMMET, Water tube |
| 82 |
0387215 |
IMPELLER HOUSING, Gearcase This part replaces 0316292. |
| 84 |
0338742 |
COMPENSATEUR DE DÉRIVE This part replaces 0316981. |
| 85 |
0307708 |
RONDELLE GROWER This part replaces 0302865. |
| 86 |
0305282 |
BOLT, Bowl & suction piece |
| 87 |
0306314 |
L'WASHER,Scr,long |
| 88 |
0313697 |
SCR,Grc to hsg.long |
| 90 |
0306503 |
SCREW, Short |
| 92 |
0321452 |
GROMMET This part replaces 0318249. |
| 93 |
0320981 |
PLATE, Impeller housing This part replaces 0315745. |
| 94 |
0377230 |
IMPEELER ASSEMBLY |
| 95 |
0382761 |
PROPELLER ,14 x 11 |
| 95 |
0382765 |
PROPELLER 13 X 19 |
| 95 |
0382766 |
PROP. 12-3/4 X 21 (STD) |
| 95 |
0383160 |
PROPELLER 14 X 19 |
| 95 |
0384139 |
PROP., 13 - 3/8 x 17 - SST |
| 95 |
0384142 |
PROP., 13 x 19 - SST |
| 95 |
0384144 |
PROP., 13-3/4 x 15 - sst |
| 95 |
0389512 |
PRO, 12-3/4 x 21 sst cupped This part replaces 0384141. |
| 95 |
0765181 |
PROPELLER This part replaces 0382762. |
| 95 |
0765182 |
PROPELLER - W Models This part replaces 0382763. |
| 95 |
0765183 |
PROPELLER, WDEL Models This part replaces 0382764. |
| 96 |
0314188 |
CONVERGING RING |
| 96 |
0315850 |
CONVERGING RING, Brnz |
| 0386594 |
0386594 |
GEARCASE ASSY., Complete std. |
| 0386595 |
0386595 |
GEARCASE ASSY., Complete long |
