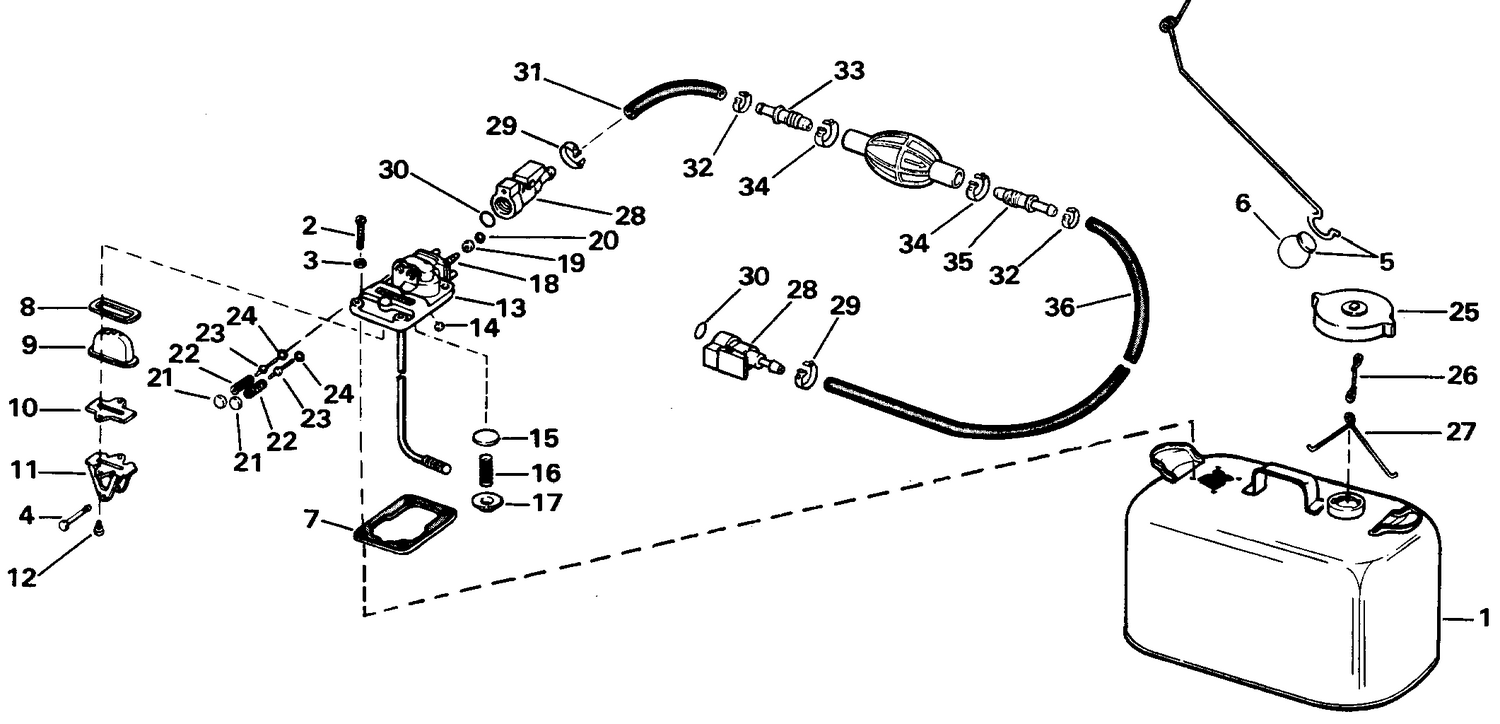

| Ref | Part Number | Description |
|---|
| 1 |
5008623 |
FUEL TANK This part replaces 0398458. |
| 2 |
0327888 |
SCREW |
| 5 |
0398459 |
FLOAT & INDICATOR |
| 6 |
0332370 |
FLOAT |
| 7 |
0125530 |
GASKET, Housing to tank This part replaces 0332403. |
| 8 |
0332505 |
SEAL |
| 9 |
0312190 |
LENS |
| 10 |
0312193 |
GASKET |
| 11 |
0312191 |
SCREW, Indicator support |
| 12 |
0310849 |
HOUSING ASSY., Valve |
| 13 |
0398409 |
HOUSING |
| 19 |
0332488 |
RING, Quad |
| 25 |
0388938 |
CAP ASSY., Fuel |
| 29 |
0322654 |
PINCE RAPIDE, flexible d'huile |
| 31 |
HOSE, |
Short, 19 1/2 in. (495mm) |
| 32 |
0332652 |
CLAMP, Snap |
| 36 |
HOSE, |
Long, 99 in. (2515mm) |
| 0398549 |
5008609 |
FLEXIBLE DE CARBURANT ET POIRE D'AMORÇAGE This part replaces 0398549. |
