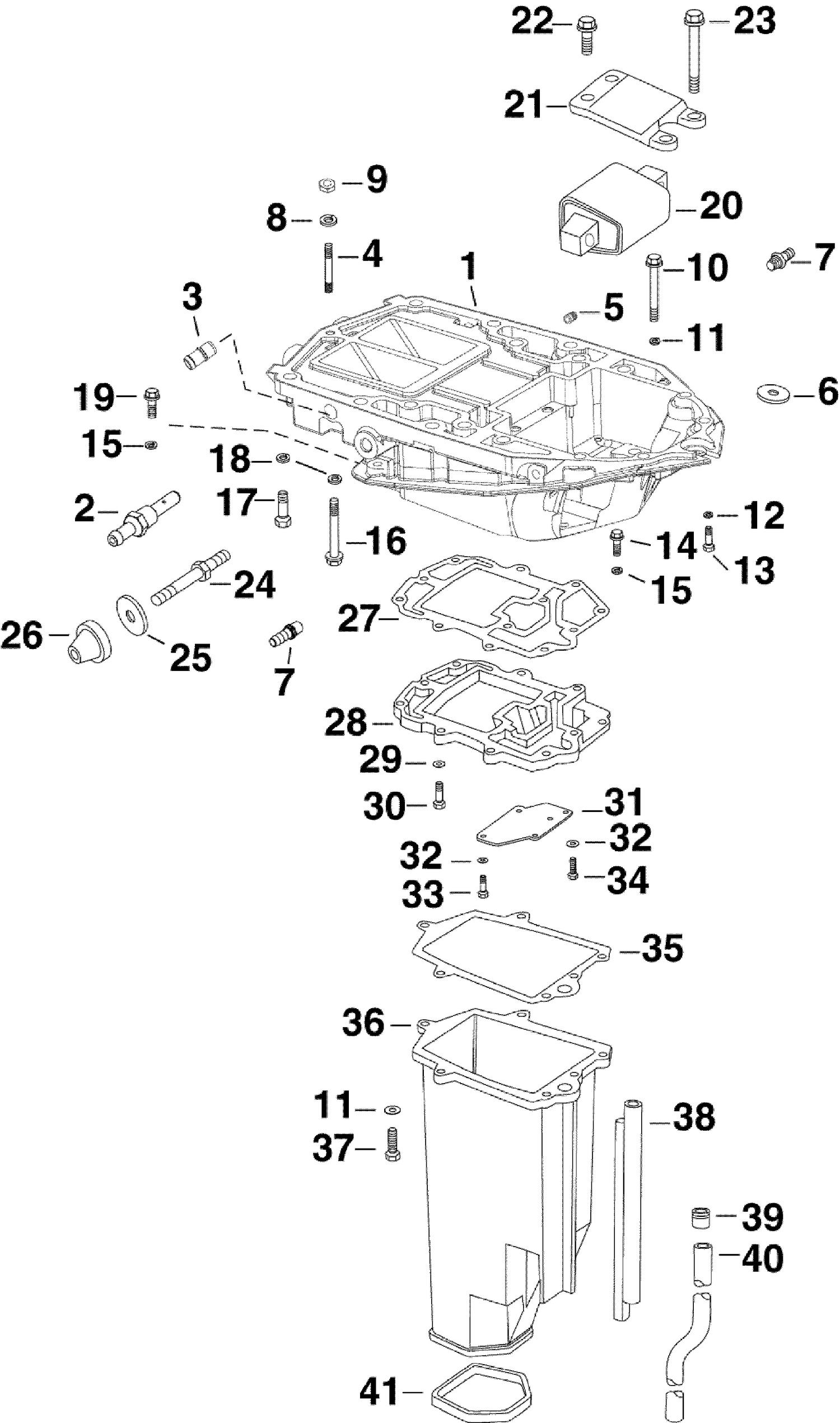

| Ref | Part Number | Description |
|---|
| 1 |
5007589 |
Kit This part replaces 5001496. |
| 10 |
0341010 |
SCREW, Adapter to inner housing |
| 13 |
0306503 |
SCREW, Short |
| 14 |
0341011 |
SCREW, Adapter to housing, outer |
| 15 |
0329241 |
RONDELLE |
| 16 |
0911042 |
SCREW, Adapter to cylinder |
| 17 |
0309484 |
SCREW |
| 19 |
0341009 |
SCREW, Adapter to outer housing |
| 21 |
0330929 |
PLATE, Upper mount |
| 23 |
0330931 |
VIS, support supérieur |
| 24 |
0329743 |
STUD, Cover mount |
| 25 |
0349556 |
Washer |
| 26 |
0349557 |
MOUNT |
| 27 |
0343809 |
GASKET, Plate to adapter |
| 28 |
0347251 |
WATER PLATE |
| 30 |
0312978 |
SCREEN, Ground plt to intmd hsg |
| 31 |
0333565 |
COVER, Water plate |
| 33 |
0333165 |
SCREW, Cover, long |
| 35 |
0334113 |
GASKET, Inner exh hsg to water plate |
| 36 |
0351228 |
EXHAUST HOUSING, Inner, upper |
| 37 |
0341010 |
SCREW, Adapter to inner housing |
| 38 |
0334118 |
SEAL, Exhaust housing, front |
| 39 |
0305145 |
GROMMET |
