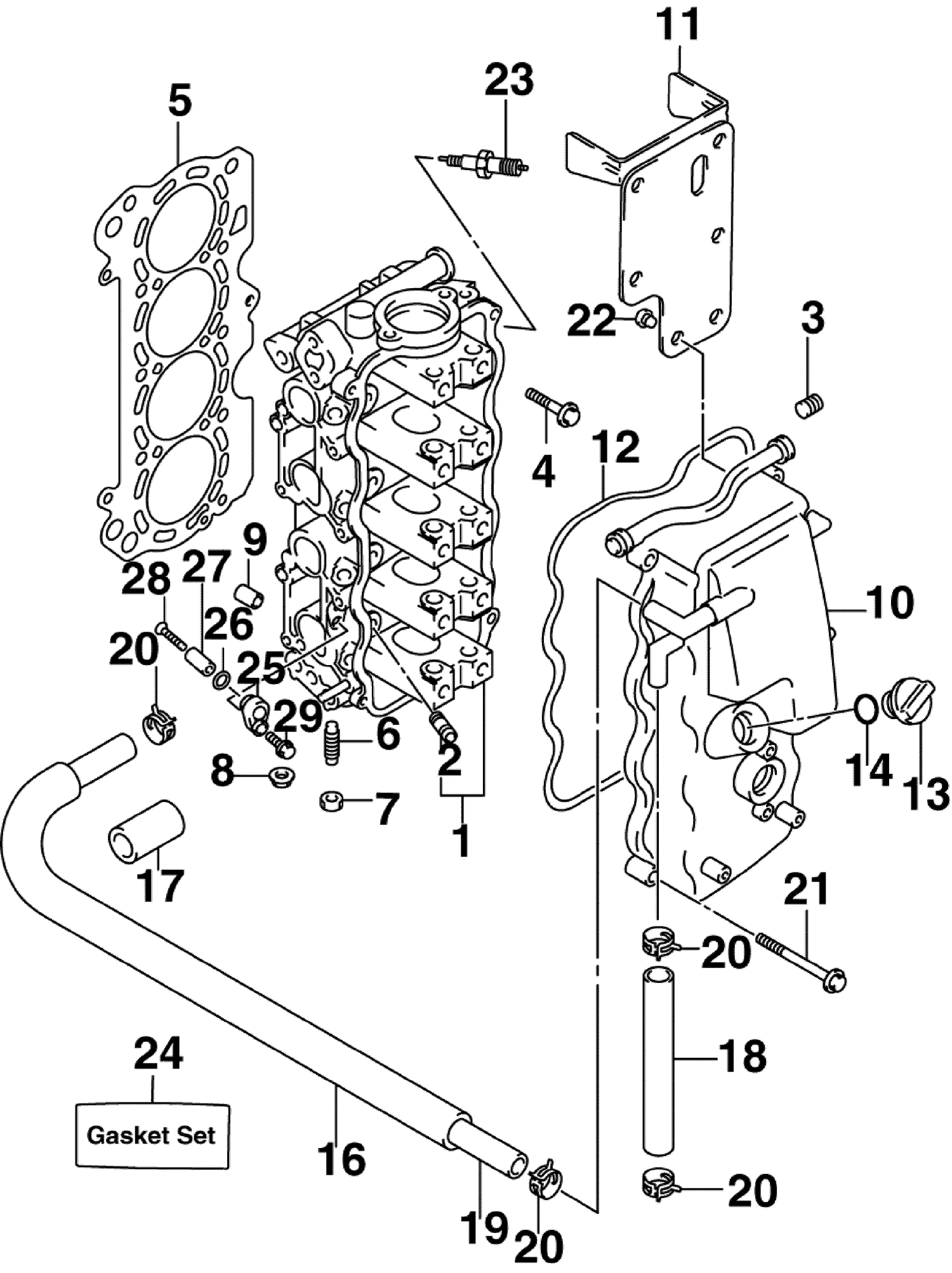

CYLINDER HEAD
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5035795 | HEAD, Cylinder |
| 4 | 5030609 | BOLT, Cylinder head |
| 5 | 5030611 | GASKET, Cylinder head |
| 6 | 5030389 | STUD, Bolt |
| 9 | 5031014 | PIN |
| 10 | 5035794 | COVER SET, Cylinder head |
| 11 | 5030614 | BREATHER PLATE |
| 12 | 5030615 | GASKET, Cylinder head cover |
| 13 | 5030633 | CAP, OIL FILLER |
| 14 | 5030541 | O RING |
| 22 | 5031004 | SCREW |
| 23 | 5030600 | PLUG, SPARK (BPR6ES) |
| 24 | 5035797 | GASKET SET |
| 25 | 5035796 | COUVERCLE, PROTECTION ANODE |
| 26 | 5036153 | O RING |
| 27 | 5035809 | ANODE PROTECTION |
| 28 | 5035793 | SCREW, PROTECTION ANODE |
