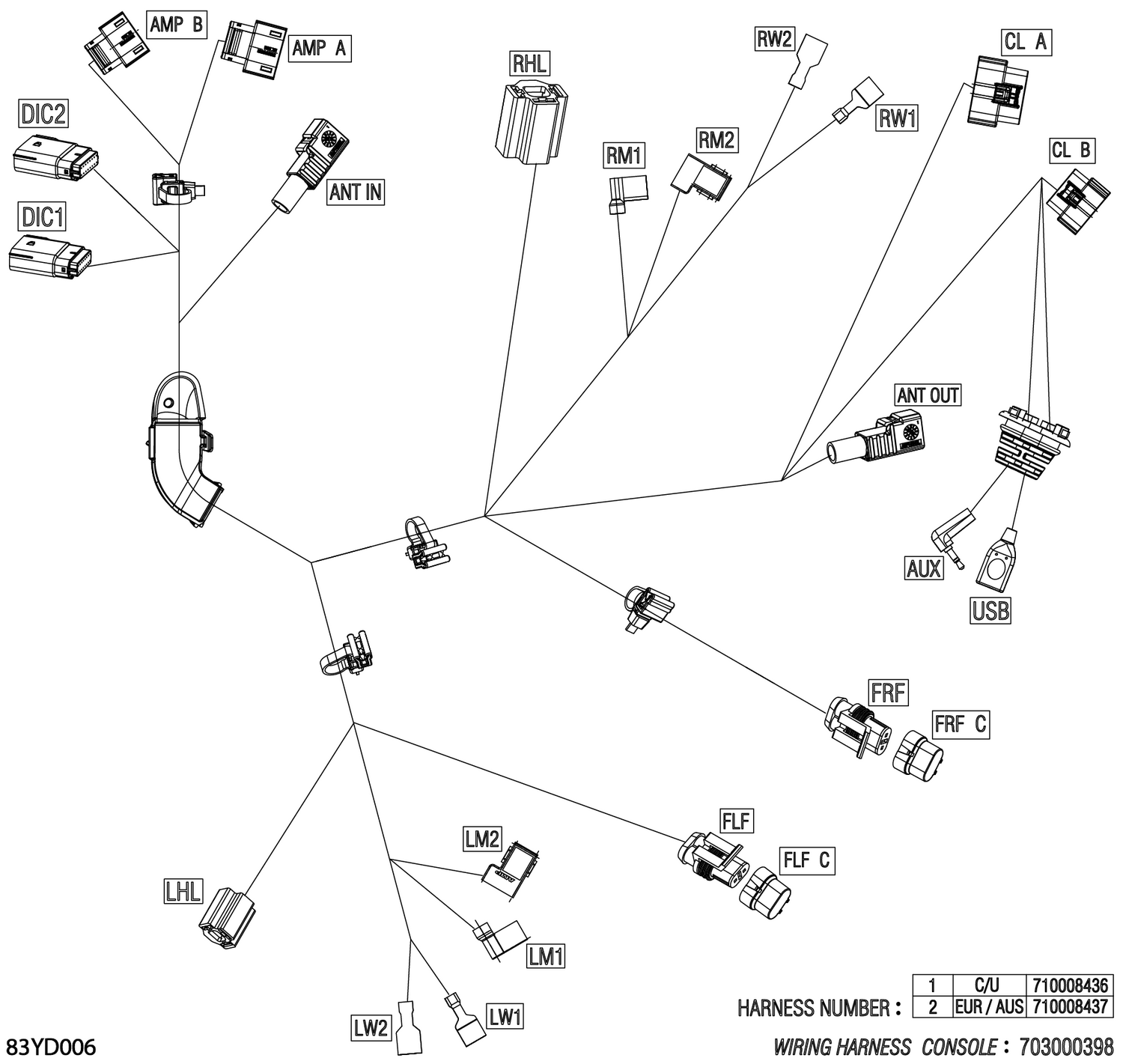

08- Electric - Console Wiring Harness - 710009225
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| AS | 515179328 | Terminal Jae |
| AS | 515179555 | Housing Jae, 2 Pins |
| AS | 710008941 | Plug |
| CL | 710001589 | Female Terminal |
| CL | 710001592 | Plug |
| CL | 710001593 | Plug |
| CL | 710001727 | Female Terminal |
| CL | 710001728 | Terminal |
| CL | 710007617 | Plug |
| CL | 710007619 | Seal Joint |
| CL | 710007620 | Seal Joint |
| CL | 710007623 | Femal Terminal |
| CL | 710007650 | Cover |
| CL | 710007658 | Femal Terminal |
| CL | 710008036 | Female Molex Connector 53 Cavities |
| DIC1 | 278004304 | Ctc Housing |
| DIC1 | 710009528 | Terminal |
| DIC1 | 710009529 | Terminal |
| DIC1 | 710009532 | Plug |
| DIC2 | 278002860 | Sealing Cap |
| DIC2 | 515178014 | Female Terminal |
| DIC2 | 515178018 | Female Terminal |
| FFL | 409209500 | Female Housing, 2 Circuits |
| FFL | 515176621 | Wire Seal |
| FFL | 710001340 | Female Terminal |
| FFR | 409209500 | Female Housing, 2 Circuits |
| FFR | 515176621 | Wire Seal |
| FFR | 710001340 | Female Terminal |
| GPS | 515175812 | Plug |
| GPS | 710001119 | Female Terminal |
| GPS | 710005295 | Female Housing |
| 50 | 710009225 | Console Wiring Harness |
