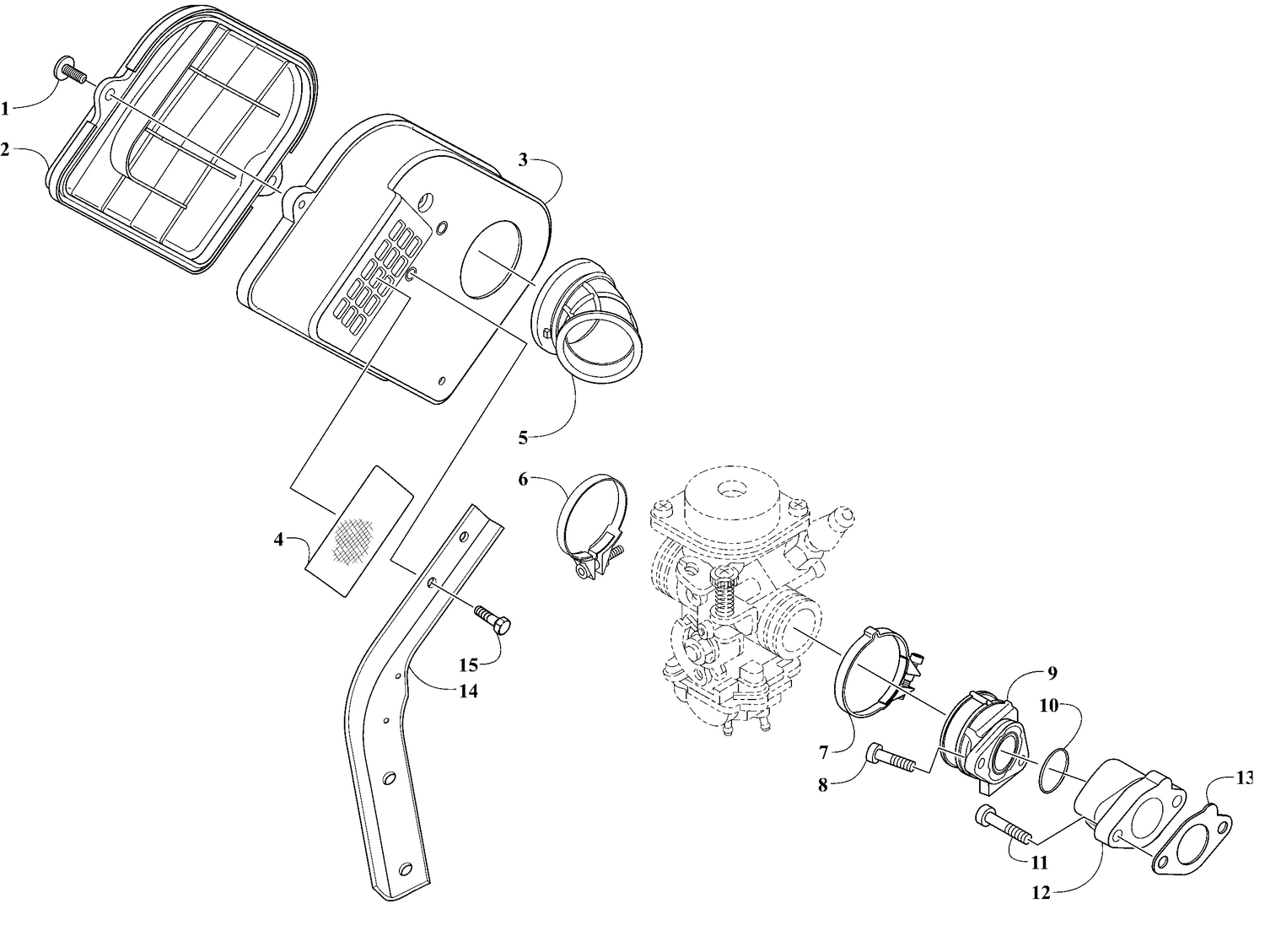

Engine - Air Intake
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3020-094 | Self tapping Screw |
| 2 | 3021-828 | Filter Cover |
| 3 | 3021-924 | Air Cleaner Case |
| 4 | 2670-622 | Air Filter Screen |
| 5 | 3021-933 | Boot, Air Box/ Carburator |
| 6 | 3021-927 | Clamp |
| 7 | 3021-964 | Clamp |
| 8 | 3021-947 | Socket Head Screw |
| 9 | 3021-963 | Carburator Manifold |
| 10 | 3021-962 | O-Ring |
| 11 | 3021-961 | Hexagonal Bolt |
| 12 | 3021-960 | Intake Socket Carburator 2 |
| 13 | 3021-765 | Intake Gasket |
| 14 | 0608-821 | Air Cleaner Case Bracket |
