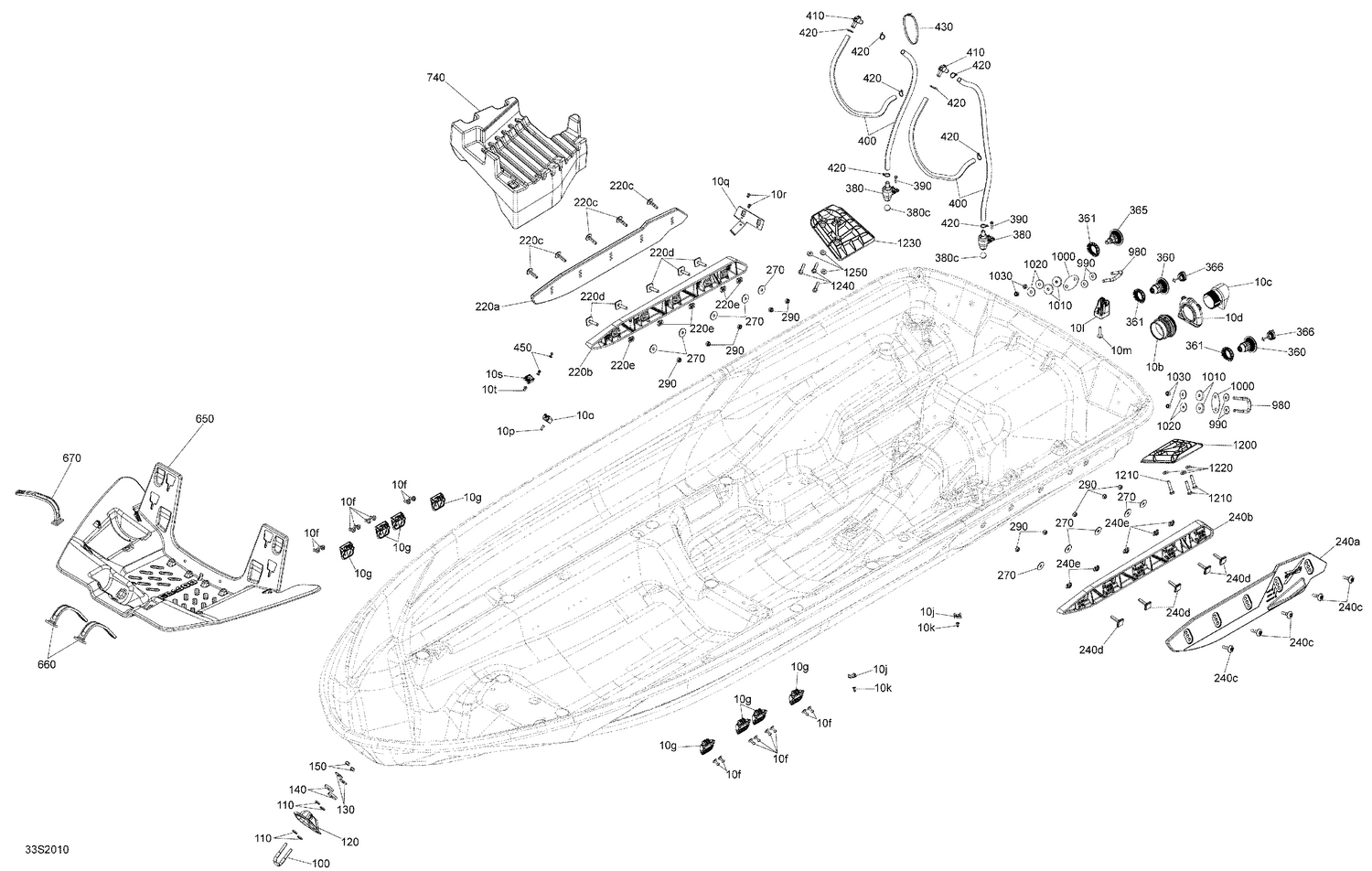

09- Hull
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 293450340 | Hull Insert |
| 10c | 293450335 | Hull Insert |
| 10d | 293450356 | Hull Insert |
| 10f | 293150123 | Pop Rivet 3/16" |
| 10g | 270000933 | Strap Retaining |
| 10j | 293750026 | Tie Rap Mount |
| 10k | 293150037 | Avdel Rivet 3/16" |
| 10l | 270000988 | Strap Anchor |
| 10m | 250000399 | Hexagonal Cap Screw M6 X35 |
| 10o | 270000854 | Strap Anchor |
| 10p | 293150043 | Pop Rivet 3/16" |
| 10q | 270000977 | Strap Anchor |
| 10r | 293150043 | Pop Rivet 3/16" |
| 10s | 270000854 | Strap Anchor |
| 10t | 293150043 | Pop Rivet 3/16" |
| 100 | 292000933 | U-Clamp |
| 110 | 293050001 | Flat Washer M8.5 x 18 |
| 120 | 292001837 | Black Shell |
| 130 | 250200175 | Flat Washer 8 mm, Stainless |
| 140 | 293830037 | Rubber Washer |
| 150 | 232581200 | Hex. Elastic Nut M8 Brass |
| 220a | 292001871 | RH Sponson |
| 220b | 292001873 | RH Spacer Sponson |
| 220c | 250000994 | Torx-Head Screw M8 X 35 |
| 220d | 292001471 | Square Head Stud |
| 220e | 292001503 | Push Nut |
| 240a | 292001872 | Sponson LH |
| 240b | 292001874 | Spacer Sponson LH |
| 240c | 250000994 | Torx-Head Screw M8 X 35 |
| 240d | 292001471 | Square Head Stud |
| 240e | 292001503 | Push Nut |
| 270 | 250200175 | Flat Washer 8 mm, Stainless |
| 290 | 232581200 | Hex. Elastic Nut M8 Brass |
| 360 | 292001580 | Drain Ass'y |
| 361 | 292001825 | Plastic Nut |
| 365 | 292001317 | Drain Neck Ass'y |
| 366 | 292002022 | Plug Ass'y |
| 380c | 293830080 | Floating Ball |
| 390 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 400 | 219704393 | Polyurethane Hose 1000Mm Long |
| 410 | 293710152 | Fitting Elbow 90° |
| 420 | 293750001 | Tie Wrap 94 mm |
| 430 | 293750008 | Tie Wrap 368 mm |
| 450 | 293150037 | Avdel Rivet 3/16" |
| 650 | 292002397 | Panel |
| 660 | 269502417 | Strap This part replaces 269500408. |
| 670 | 269502417 | Strap This part replaces 269500408. |
| 740 | 292001840 | Cooler Float |
| 980 | 292000933 | U-Clamp |
| 990 | 279000336 | Flat Washer |
| 1000 | 291001386 | Black, Finition Plate |
| 1010 | 293830037 | Rubber Washer |
| 1020 | 250200175 | Flat Washer 8 mm, Stainless |
| 1030 | 232581200 | Hex. Elastic Nut M8 Brass |
| 1200 | 292001430 | Trim Tab LH |
| 1210 | 207284060 | Hex. Screw M8 X 40, Scotch Grip |
| 1220 | 293050001 | Flat Washer M8.5 x 18 |
| 1230 | 292001431 | TrimTab RH |
| 1240 | 207284060 | Hex. Screw M8 X 40, Scotch Grip |
| 1250 | 293050001 | Flat Washer M8.5 x 18 |
