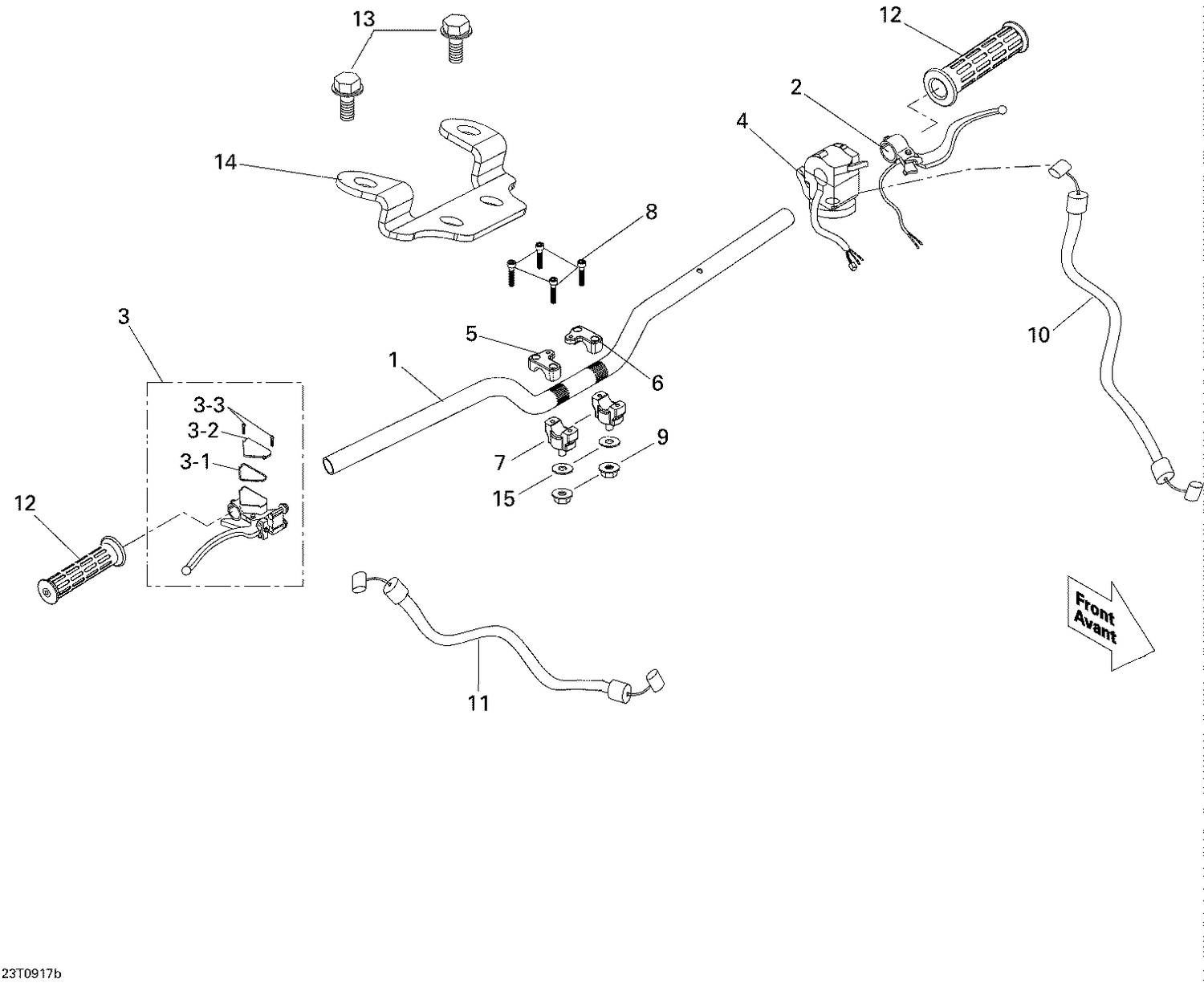

07- Handlebar
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V53100DGF060BKLL | Handle Bar This part replaces V53100DGF040BK. |
| 2 | V53178MAA020BKLL | LH Brake Lever This part replaces V53178MAA000BK. |
| 3 | V53179MAA010BKLL | RH Brake Lever Ass'y This part replaces V53177MAA000. |
| 4 | V35160DGF04HLL | Multi-Fonction Switch This part replaces V35160DGF02H. |
| 5 | V53170MAA020BKLL | LH Upper Handle Bar Clamp This part replaces V53170MAA000BK. |
| 6 | V53175MAA020BKLL | RH Upper Handle Bar Clamp This part replaces V53175MAA000BK. |
| 7 | V45517MAA040BK | Lower Handle Bar Clamp This part replaces V45517MAA000BK. |
| 8 | V9100006025LL | Hexagonal Bolt M6 X 25 This part replaces V9100006025. |
| 9 | 232501416 | Elastic Flange Nut M10 This part replaces A9035010000. |
| 10 | V43316DGF060LL | Choke Cable This part replaces V43316DGF030. |
| 11 | V17910DGF030LL | Throttle Cable This part replaces V17910DGF020. |
| 12 | V53140DGF000BK | Handle Grip |
| 13 | V930000601201LL | Round Head Screw This part replaces V9300006012. |
| 14 | V50223DGF030 | Support This part replaces V50223DGF020. |
