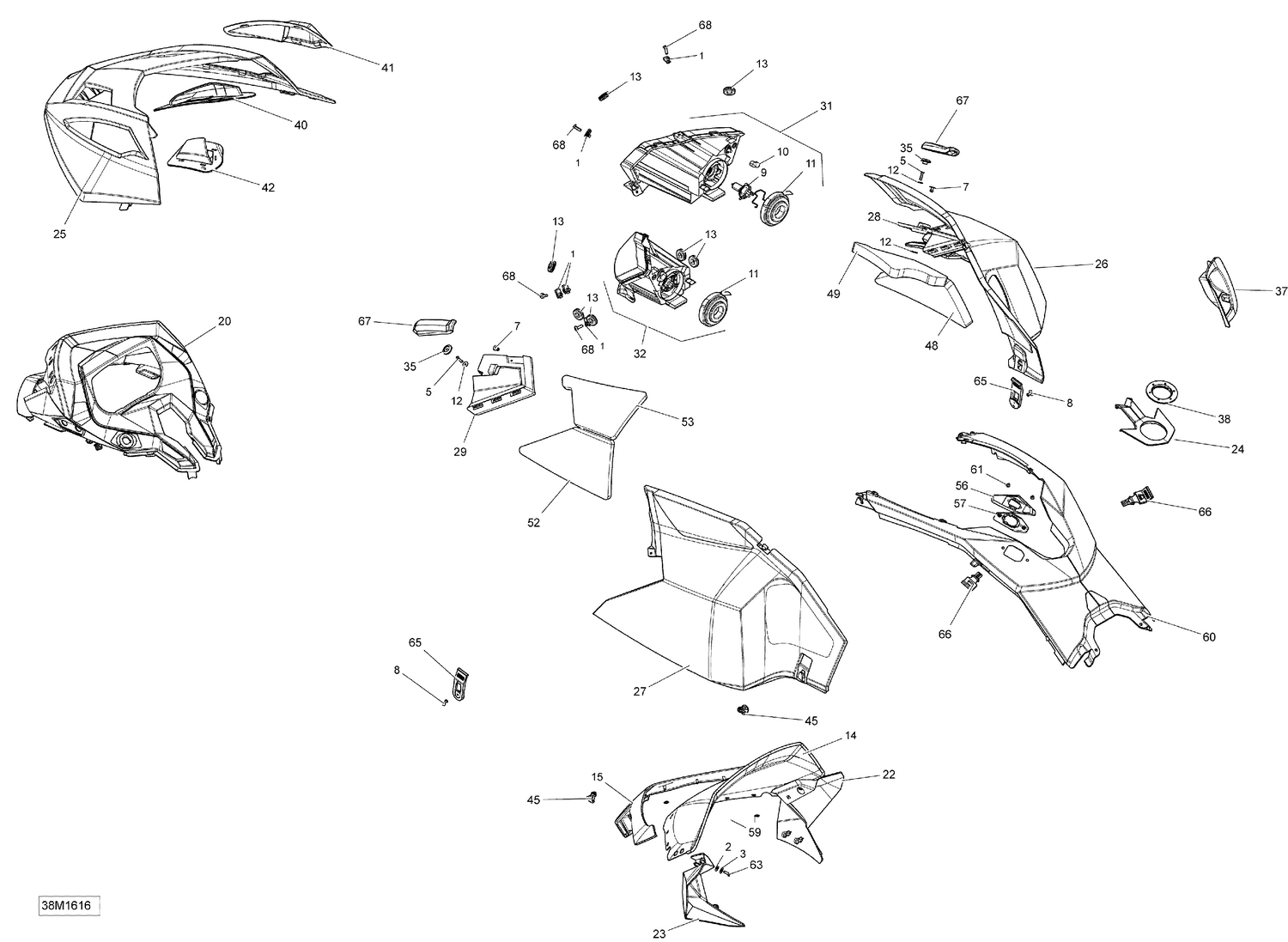

09- Hood
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 2 | 250200024 | Rubber Washer 5 mm |
| 3 | 250200025 | Washer M5 |
| 5 | 293150014 | Pop Rivet 3/16" |
| 7 | 293150104 | Pop Rivet 3/16" |
| 8 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 9 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 10 | 515176498 | Cap |
| 11 | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 12 | 517124300 | Washer |
| 20 | 517303972 | Indicator Support |
| 22 | 517304024 | RH Console Air Deflector |
| 23 | 517304025 | LH Console Air Deflector |
| 24 | 517304027 | Deep Black, Cap Console |
| 25 | 517305014 | Hood |
| 26 | 517305016 | RH Panel |
| 27 | 517305711 | LH Panel |
| 28 | 517304090 | RH Insert |
| 29 | 517304092 | LH Panel Insert |
| 31 | 517304194 | RH Headlamp Ass'y |
| 32 | 517304195 | LH Headlamp Ass'y |
| 35 | 517304320 | Anchor Link |
| 37 | 517304500 | Black, RH Console |
| 38 | 517304518 | Console Nut |
| 40 | 517304567 | RH Hood Grille |
| 41 | 517304569 | Air Inlet |
| 42 | 517304694 | LH Hood Grille |
| 45 | 517304744 | Button |
| 48 | 517304870 | Foam |
| 49 | 517304871 | Foam |
| 52 | 517304874 | Foam |
| 53 | 517304875 | Foam |
| 56 | 517305338 | Plate |
| 57 | 517305339 | Plate |
| 59 | 732610072 | Push Nut |
| 60 | 517305709 | Console |
| 61 | 250000759 | Torx Truss Pt K40 X 16 |
| 63 | 250000720 | Torx Screw K50 X 16 |
| 65 | 517304999 | Rear Panel Latch |
| 66 | 517304093 | Center Panel Latch |
| 67 | 517305186 | Front Latch Panel |
