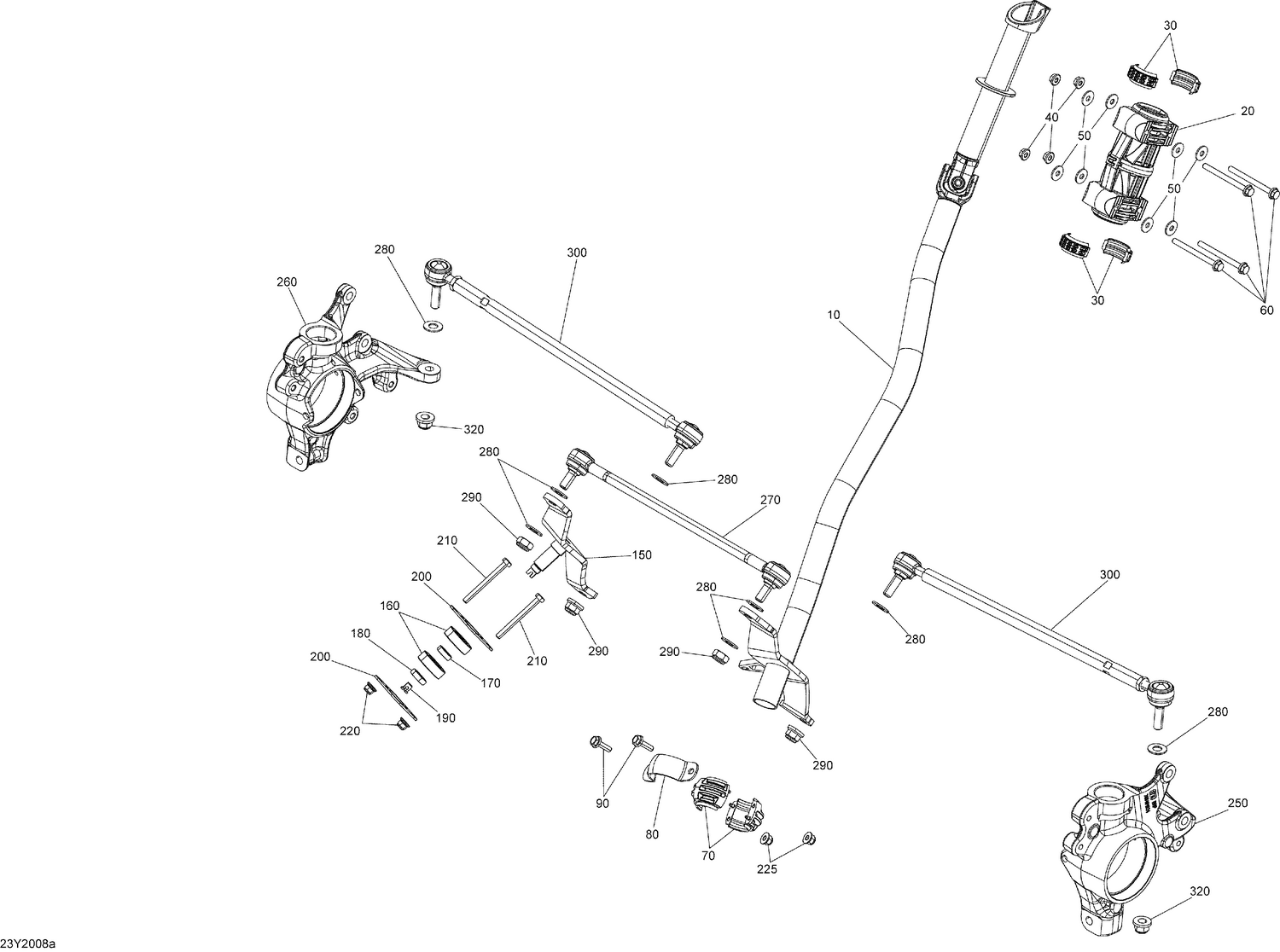

07- Steering Column - Tie Rods - Knuckles
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709401876 | Steering Shaft |
| 20 | 709403149 | Steering Bushing This part replaces 709401974. |
| 30 | 709402094 | Upper Anti-Vibration Gasket |
| 40 | 233161414 | Hex. Flange Nut M6 |
| 50 | 250200164 | Flat washer M6 |
| 60 | 207567044 | Hex. Flange Screw M6x70, Scotch Grip |
| 70 | 709402919 | Half Bushing This part replaces 709401956. |
| 80 | 709401969 | RH Lower Column Attachment |
| 90 | 207662054 | Hex. Flange Screw M6 X 20 |
| 150 | 219800520 | Pitman Arm Kit This part replaces 709401960. |
| 160 | 709402450 | Bearing This part replaces 709402219. |
| 170 | 709401976 | Spacer |
| 180 | 250100216 | Hex. Jam Nut M12 |
| 190 | 709401527 | Sensor Sleave |
| 200 | 709402096 | Sensor Support |
| 210 | 207066544 | Hex. Screw M6 X 65 |
| 220 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 225 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 250 | 709401922 | LH Knuckle |
| 260 | 709401923 | RH Knuckle |
| 270 | 709401954 | Tie Rod Ass'y |
| 280 | 506152582 | Washer |
| 290 | 232501416 | Elastic Flange Nut M10 |
| 300 | 709401953 | Tie Rod Ass'y |
