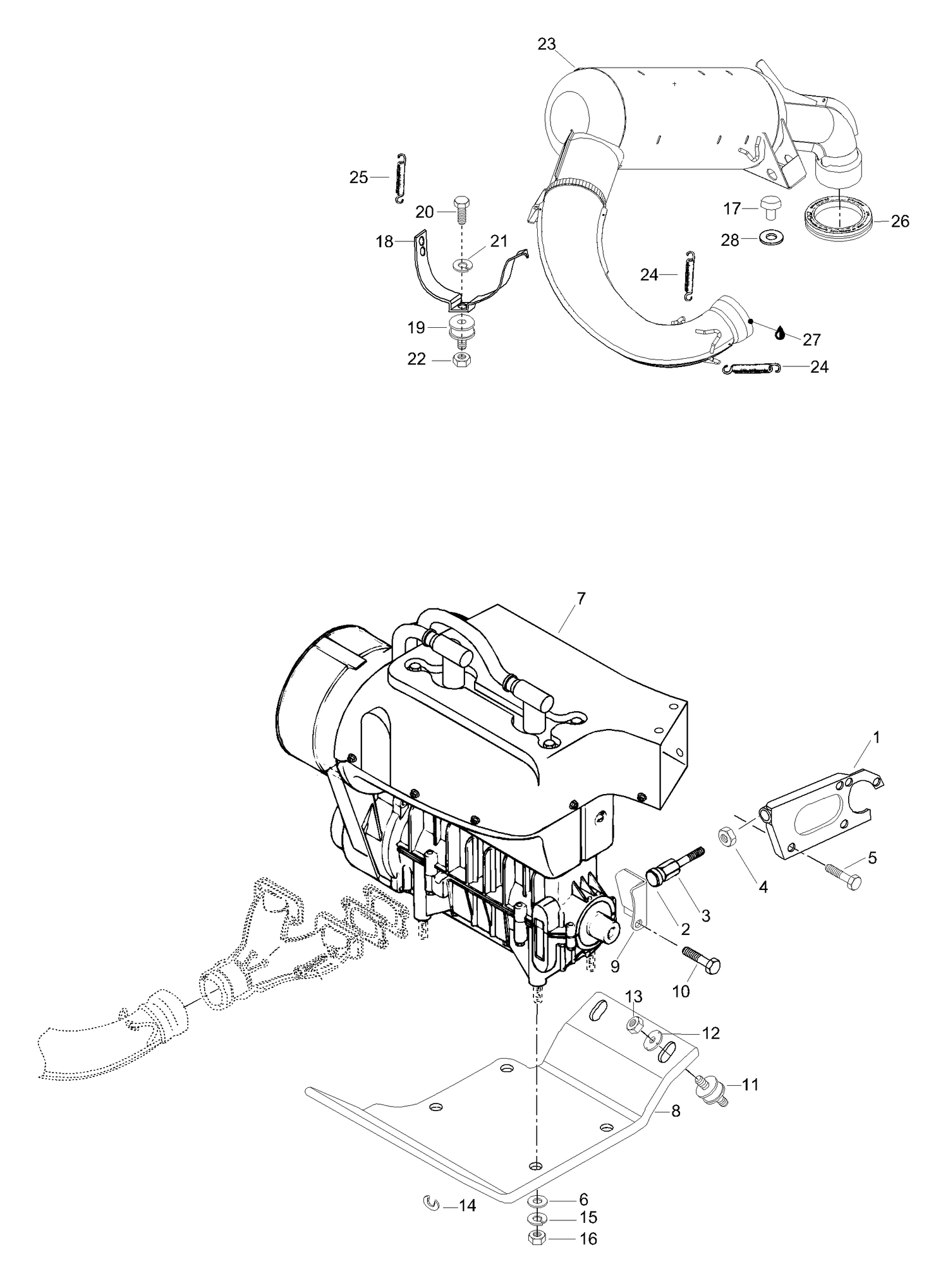

| Ref | Part Number | Description |
|---|
| 1 |
5346583 |
Support plate |
| 2 |
570025100 |
Rod retainer |
| 3 |
517244200 |
Screw |
| 4 |
33063 |
Nut M12 |
| 5 |
40327 |
Self tapping screw M6x |
| 6 |
20105 |
Washer, hardened |
| 7 |
11000059 |
Engine 377 |
| 8 |
5246291 |
Engine mount.plate |
| 9 |
5344446 |
PLATE-STOP.WELD - Call your local BRP dealership |
| 10 |
40035 |
Screw M8x16 |
| 11 |
570127700 |
RUBBER MOUNT - Call your local BRP dealership |
| 12 |
512056700 |
Lock washer |
| 13 |
33012 |
Nut M10 |
| 14 |
546221 |
Shim washer |
| 15 |
20047 |
Shim B10 DIN127 -St Zne(1=10pcs) - Call your local BRP dealership |
| 16 |
232006414 |
Hex. Nut M10 This part replaces 33004. |
| 17 |
570044700 |
Rubber bumper |
| 18 |
535108 |
Support, muffler |
| 19 |
28245 |
BUMPER-RUBBER - Call your local BRP dealership |
| 20 |
40034 |
Screw M8x10 |
| 21 |
20014 |
Lock washer |
| 22 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 23 |
420979824 |
Muffler |
| 24 |
420938796 |
Spring This part replaces 420938795. |
| 25 |
543225 |
Spring L=190 |
| 26 |
570039000 |
EXHAUST GROMMET - Call your local BRP dealership |
| 27 |
293800090 |
Loctite, 80ml This part replaces 413710300. |
