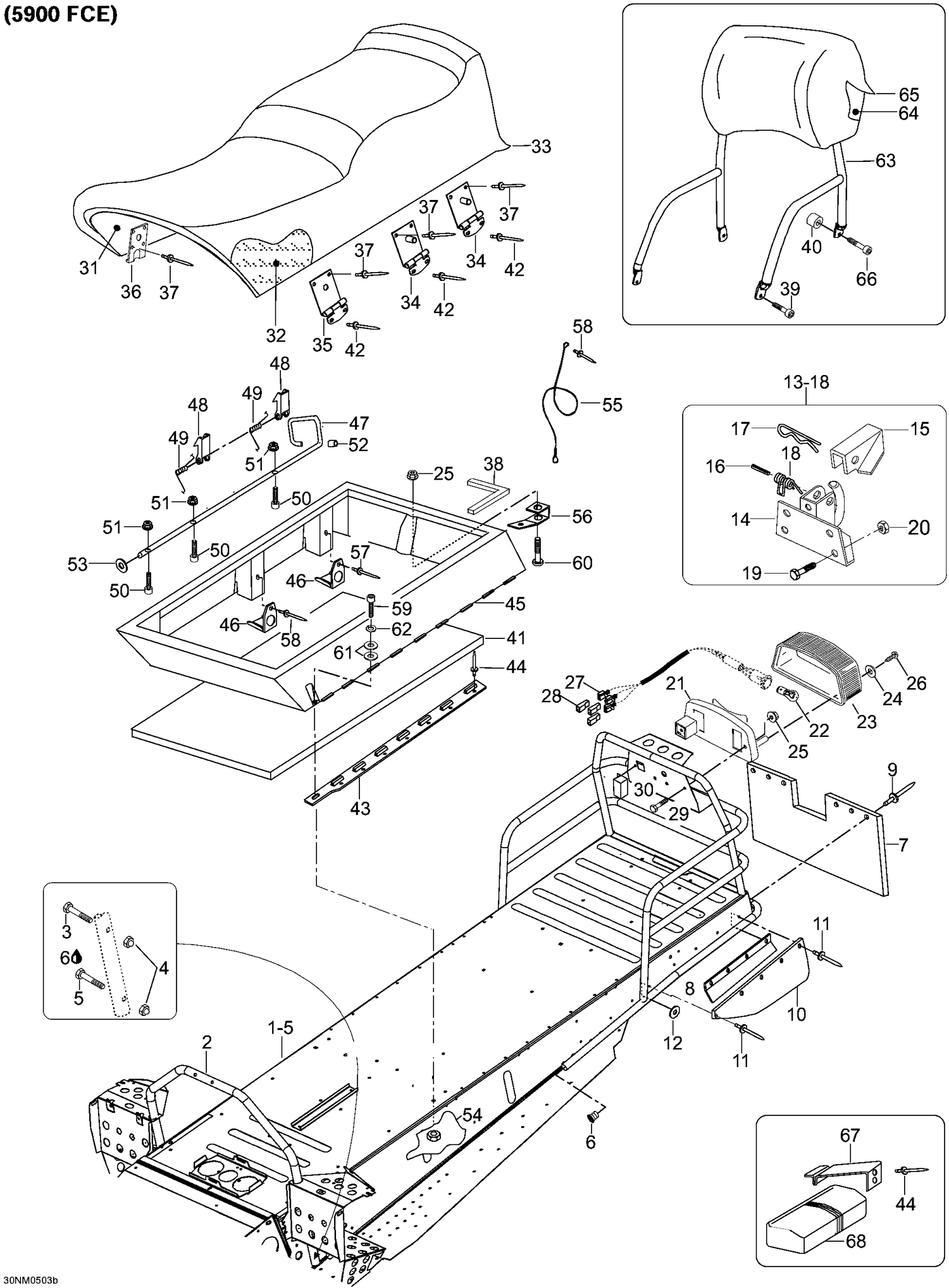

| Ref | Part Number | Description |
|---|
| 2 |
5143873 |
Handle steering supp. |
| 3 |
40032 |
Screw M6 x 30 |
| 4 |
33051 |
Nut M6 |
| 5 |
40002 |
Screw M6 x 40 |
| 6 |
28136 |
Plug |
| 7 |
535437 |
Snow guard |
| 8 |
5340532 |
Side Snow Guard Guide - Call your local BRP dealership |
| 9 |
36036 |
Rivet |
| 10 |
5142828 |
Snow guard, side |
| 11 |
36097 |
Rivet Profix 4.0x13 Al musta(1=50pcs) - Call your local BRP dealership |
| 12 |
20037 |
Washer 4mm |
| 14 |
5344156 |
HITCH ASS'Y - Call your local BRP dealership This part replaces 5344208. |
| 15 |
5440767 |
Latch |
| 16 |
41012 |
Cotter |
| 17 |
41029 |
Pin |
| 18 |
545693 |
SPRING - Call your local BRP dealership |
| 19 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 20 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 21 |
510004061 |
LIGHT HOUSING - Call your local BRP dealership |
| 22 |
520000758 |
Bulb This part replaces 410504000. |
| 23 |
414513700 |
Lens |
| 24 |
414516400 |
Washer - Call your local BRP dealership |
| 25 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 26 |
209632540 |
Phillips Tapping Screw M3.9 X 25 This part replaces 414516300. |
| 27 |
42178 |
Female terminal |
| 28 |
42179 |
Connector housing |
| 29 |
40032 |
Screw M6 x 30 |
| 30 |
5345713 |
Cover - Call your local BRP dealership |
| 31 |
519394 |
SEAT BASE - Call your local BRP dealership |
| 32 |
5244982 |
Foam |
| 33 |
605148625 |
Seat cover |
| 34 |
549874 |
Hinge plate - Call your local BRP dealership |
| 35 |
5440581 |
Hinge for set ass'y |
| 36 |
549732 |
Lock plate weld. - Call your local BRP dealership |
| 37 |
36071 |
Rivet |
| 38 |
5440059 |
Seal |
| 39 |
40388 |
Socket head screw M8 x 20 |
| 40 |
5440665 |
SPACER - Call your local BRP dealership |
| 41 |
5344621 |
Foam |
| 42 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 43 |
5144028 |
CLIP PLATE L.H. - Call your local BRP dealership |
| 43 |
5144029 |
Clip plate R.H. |
| 44 |
36083 |
Rivet |
| 45 |
5142066 |
Seat box - Call your local BRP dealership |
| 46 |
5443661 |
Support |
| 47 |
5344987 |
LOCKING ROD - Call your local BRP dealership |
| 48 |
605451589 |
CAM LOCK - Call your local BRP dealership |
| 49 |
5444439 |
Spring |
| 50 |
40144 |
Allen screw M4 x 16 DIN 912m8.8(1=10pcs) - Call your local BRP dealership |
| 51 |
33008 |
Elastic stop nut M4 |
| 52 |
28019 |
Plug |
| 53 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 54 |
33066 |
Nut M6 |
| 55 |
293750070 |
Seat Retainer Cable This part replaces 546777. |
| 56 |
5444464 |
Retainer cable lug - Call your local BRP dealership |
| 57 |
36038 |
Rivet 4.8x21 Al(1=25pcs) - Call your local BRP dealership |
| 58 |
36009 |
Rivet |
| 59 |
40052 |
Allen sc. M6 x 20 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 60 |
40149 |
Locking screw M6 x 30 |
| 61 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 62 |
20052 |
Lock washer 6mm |
| 63 |
5245664 |
Backrest weld. - Call your local BRP dealership |
| 64 |
539399 |
FOAM, BACKREST - Call your local BRP dealership |
| 65 |
5340917 |
COVER-BACKREST - Call your local BRP dealership |
| 66 |
40389 |
ALLEN SCREW - Call your local BRP dealership |
| 67 |
5344443 |
Spring holder |
