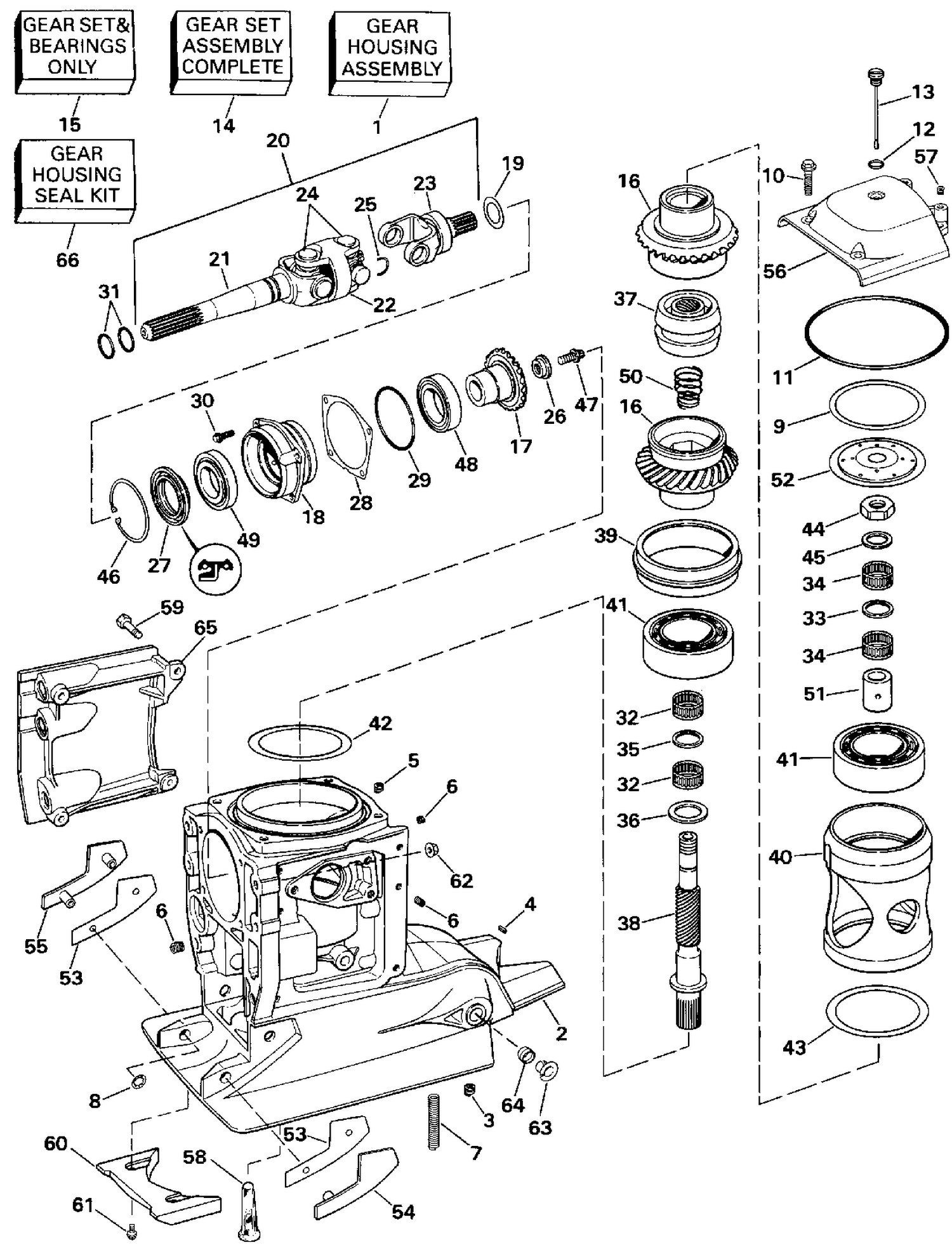

| Ref | Part Number | Description |
|---|
| 1 |
3850751 |
GEAR HOUSING ASSEMBLY This part replaces 0986975. |
| 2 |
3854915 |
GEAR HOUSING & INSERTS This part replaces 0986956. |
| 3 |
3852541 |
INSERT, 7/16 -14 This part replaces 0911779. |
| 4 |
3852567 |
INSERT This part replaces 0911858. |
| 5 |
3852953 |
INSERT, Exhaust pipe This part replaces 0914008. |
| 6 |
0910901 |
INSERT |
| 7 |
3853387 |
GASKET, Cylinder head This part replaces 0914986. |
| 8 |
0910953 |
RETAINER RING, Thrust plate |
| 9 |
3852906 |
SHIM, Upper cover, 0.004 in. This part replaces 0913895. |
| 9 |
3852907 |
SHIM, Upper cover, 0.003 in. This part replaces 0913896. |
| 9 |
3852908 |
SHIM, Upper cover, 0.005 in. This part replaces 0913897. |
| 9 |
3852909 |
SHIM, Upper cover, 0.010 in. This part replaces 0913898. |
| 9 |
3852932 |
SHIM, Upper cover, 0.031 in. This part replaces 0913937. |
| 10 |
3855472 |
SCREW, Pipe to gimbal This part replaces 0913883. |
| 11 |
3852900 |
O-RING, Top cover This part replaces 0913886. |
| 13 |
3852893 |
INDICATOR Oil fill This part replaces 0913878. |
| 14 |
3854052 |
GEAR SET ASSEMBLY This part replaces 0987020. |
| 15 |
3850989 |
GEAR SET, Pinion & drive gears This part replaces 0986274. |
| 16 |
DRIVE |
GEAR |
| 17 |
PINION |
GEAR |
| 18 |
3852903 |
BEARING CARRIER, Pinion This part replaces 0913890. |
| 19 |
3852914 |
SHIM, Pinion, preload, 0.003 in. This part replaces 0913903. |
| 19 |
3852915 |
SHIM, Pinion, preload, 0.004 in. This part replaces 0913904. |
| 19 |
3852916 |
SHIM, Pinion, preload, 0.005 in. This part replaces 0913905. |
| 19 |
3852917 |
SHIM, Pinion, preload, 0.010 in. This part replaces 0913906. |
| 20 |
0986191 |
U-JOINT ASSEMBLY |
| 21 |
0912212 |
SHAFT, Yoke |
| 22 |
0912213 |
DOUBLE CENTER |
| 23 |
0914646 |
STUB, Yoke |
| 24 |
3850812 |
U-JOINT This part replaces 0915717. |
| 25 |
3850757 |
RETAINER, U-joint This part replaces 0914674. |
| 26 |
3852897 |
RETAINER, Pinion gear This part replaces 0913882. |
| 27 |
3852901 |
SEAL, U-joint to bearing carrier This part replaces 0913887. |
| 28 |
3852910 |
SHIM, Bearing carrier, 0.004 in. This part replaces 0913899. |
| 28 |
3852911 |
SHIM, Bearing carrier, 0.003 in. This part replaces 0913900. |
| 28 |
3852912 |
SHIM, Bearing carrier, 0.005 in. This part replaces 0913901. |
| 28 |
3852913 |
SHIM, Bearing carrier, 0.010 in. This part replaces 0913902. |
| 30 |
0341013 |
SCREW, Cover This part replaces 0908668. |
| 31 |
3852565 |
O-RING, U-joint This part replaces 0911851. |
| 32 |
3853942 |
BEARING, Lower drive gear This part replaces 0986276. |
| 33 |
3852966 |
SPACER, Lower drive gear bearing This part replaces 0914032. |
| 34 |
3853942 |
BEARING, Lower drive gear This part replaces 0986276. |
| 35 |
3852966 |
SPACER, Lower drive gear bearing This part replaces 0914032. |
| 36 |
3852967 |
WASHER, Driveshaft to lower drive gear This part replaces 0914033. |
| 37 |
3853450 |
CLUTCH CONE This part replaces 0915130. |
| 38 |
0987747 |
DRIVESHAFT & BUSHING, Upper This part replaces 0915101. |
| 39 |
3852943 |
BEARING CARRIER, Lower This part replaces 0913982. |
| 40 |
3854900 |
HOUSING, Drive gear This part replaces 0913976. |
| 41 |
3853938 |
BEARING, Drive gear This part replaces 0986209. |
| 42 |
3852938 |
SHIM, Drive gear hsg., 0.010 in. This part replaces 0913970. |
| 42 |
3852939 |
SHIM, Drive gear hsg., 0.003 in. This part replaces 0913973. |
| 42 |
3852940 |
SHIM, Drive gear hsg., 0.004 in. This part replaces 0913974. |
| 42 |
3852941 |
SHIM, Drive gear hsg., 0.005 in. This part replaces 0913975. |
| 43 |
3852934 |
SHIM, Bearing carrier, 0.010 in. This part replaces 0913950. |
| 43 |
3852935 |
SHIM, Bearing carrier, 0.003 in. This part replaces 0913953. |
| 43 |
3852936 |
SHIM, Bearing carrier, 0.004 in. This part replaces 0913954. |
| 43 |
3852937 |
SHIM, Bearing carrier, 0.005 in. This part replaces 0913955. |
| 44 |
3857797 |
Nut & Tag Ay This part replaces 0915100. |
| 45 |
3853441 |
SHIM, Upper driveshaft, 0.071 in. This part replaces 0915103. |
| 45 |
3853442 |
SHIM, Upper driveshaft, 0.075 in. This part replaces 0915104. |
| 45 |
3853443 |
SHIM, Upper driveshaft, 0.079 in. This part replaces 0915105. |
| 45 |
3853444 |
SHIM, Upper driveshaft, 0.083 in. This part replaces 0915106. |
| 45 |
3853445 |
SHIM, Upper driveshaft, 0.087 in. This part replaces 0915107. |
| 45 |
3853446 |
SHIM, Upper driveshaft, 0.091 in. This part replaces 0915108. |
| 45 |
3853447 |
SHIM, Upper driveshaft, 0.095 in. This part replaces 0915109. |
| 45 |
3853448 |
SHIM, Upper driveshaft, 0.099 in. This part replaces 0915110. |
| 45 |
3853459 |
SHIM, Upper driveshaft, 0.063 in. This part replaces 0915167. |
| 45 |
3853460 |
SHIM, Upper driveshaft, 0.067 in. This part replaces 0915168. |
| 46 |
3853301 |
RETAINING RING, Seal This part replaces 0914645. |
| 47 |
3852896 |
SCREW, Pinion gear retainer This part replaces 0913881. |
| 48 |
3854636 |
BEARING, Pinion to inner carrier This part replaces 0986214. |
| 49 |
0986215 |
BEARING, Pinion to outer carrier |
| 50 |
3853366 |
SPRING, Clutchcone to shaft This part replaces 0914897. |
| 51 |
3853656 |
BUSHING, Bearing This part replaces 0915102. |
| 52 |
3852899 |
DEFLECTOR, Oil This part replaces 0913885. |
| 53 |
3852918 |
SHIM, Thrust plate, 0.015 in. This part replaces 0913907. |
| 54 |
3852919 |
PLATE, Thrust, port This part replaces 0913908. |
| 55 |
3852920 |
PLATE, Thrust, starboard This part replaces 0913909. |
| 56 |
3854469 |
COVER, Upper gearcase, top This part replaces 0986609. |
| 57 |
0910901 |
INSERT |
| 58 |
3854021 |
Screen Ay This part replaces 0986814. |
| 59 |
3852568 |
SCREW, Cover This part replaces 0911859. |
| 60 |
3854061 |
ANODE, Gear housing, front This part replaces 0987067. |
| 61 |
3853428 |
SCREW, Anchor bracket This part replaces 0915068. |
| 62 |
3853329 |
LOCKNUT, Transom plate This part replaces 0914772. |
| 63 |
3853423 |
BUSHING, Pivot pin This part replaces 0915050. |
| 64 |
3853424 |
GROMMET, Pivot pin This part replaces 0915051. |
| 65 |
3852999 |
COVER, Gearcase, starboard This part replaces 0914072. |
