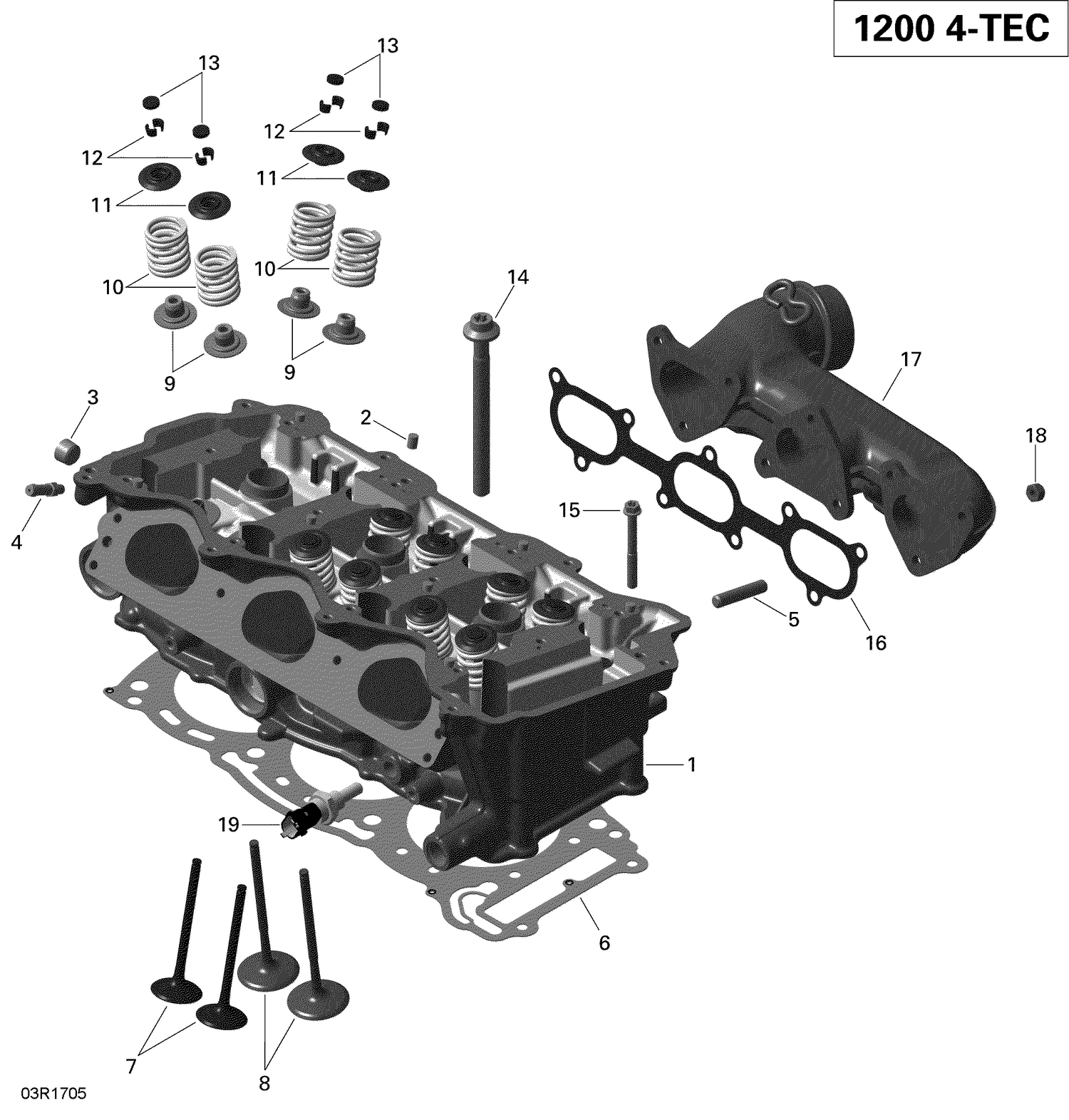

| Ref | Part Number | Description |
|---|
| 2 |
420232210 |
Center Pin |
| 3 |
420840203 |
SCREW PLUG 1/4 - Call your local BRP dealership |
| 4 |
420924724 |
Hose Nipple |
| 5 |
420840491 |
Stud M6 X 14/15 |
| 6 |
420431051 |
Cylinder Head Gasket |
| 7 |
420253172 |
Exhaust Valve 31MM This part replaces 420855023. |
| 8 |
420855013 |
Intake Valve, 37.3 mm |
| 9 |
420430741 |
Valve Stem Seal |
| 10 |
420238461 |
VALVE SPRING - Call your local BRP dealership This part replaces 420238460. |
| 11 |
420254822 |
Valve Spring Retainer |
| 12 |
420254602 |
Valve Cotter This part replaces 420254600. |
| 13 |
420253970 |
SHIM 2.1 - Call your local BRP dealership |
| 13 |
420253971 |
SHIM 2.15 - Call your local BRP dealership |
| 13 |
420253972 |
SHIM 2.2 - Call your local BRP dealership |
| 13 |
420253973 |
SHIM 2.25 - Call your local BRP dealership |
| 13 |
420253974 |
SHIM 2.3 - Call your local BRP dealership |
| 13 |
420253975 |
Shim 2.35 |
| 13 |
420253976 |
SHIM 2.4 - Call your local BRP dealership |
| 13 |
420253977 |
SHIM 2.45 - Call your local BRP dealership |
| 13 |
420253978 |
SHIM 2.5 - Call your local BRP dealership |
| 13 |
420253979 |
SHIM 2.55 - Call your local BRP dealership |
| 13 |
420253980 |
SHIM 2.6 - Call your local BRP dealership |
| 13 |
420253981 |
SHIM 2.65 - Call your local BRP dealership |
| 13 |
420253982 |
SHIM 2.7 - Call your local BRP dealership |
| 13 |
420253983 |
SHIM 2.75 - Call your local BRP dealership |
| 13 |
420253984 |
SHIM 2.8 - Call your local BRP dealership |
| 13 |
420253985 |
SHIM 2.85 - Call your local BRP dealership |
| 13 |
420253986 |
SHIM 2.9 - Call your local BRP dealership |
| 13 |
420253987 |
SHIM 2.95 - Call your local BRP dealership |
| 13 |
420254030 |
SHIM 2.325 - Call your local BRP dealership |
| 13 |
420254031 |
SHIM 2.375 - Call your local BRP dealership |
| 13 |
420254032 |
SHIM 2.425 - Call your local BRP dealership |
| 13 |
420254033 |
SHIM 2.475 - Call your local BRP dealership |
| 13 |
420254034 |
SHIM 2.525 - Call your local BRP dealership |
| 13 |
420254035 |
SHIM 2.575 - Call your local BRP dealership |
| 13 |
420254036 |
Shim 2.625 |
| 13 |
420254037 |
Shim 2.675 |
| 13 |
420254038 |
SHIM 2.725 - Call your local BRP dealership |
| 13 |
420254039 |
SHIM 2.775 - Call your local BRP dealership |
| 13 |
420254040 |
SHIM 2.825 - Call your local BRP dealership |
| 13 |
420254041 |
SHIM 2.875 - Call your local BRP dealership |
| 13 |
420254042 |
SHIM 2.925 - Call your local BRP dealership |
| 13 |
420254043 |
SHIM 2.975 - Call your local BRP dealership |
| 14 |
420840250 |
Torx Screw M10 X 121 |
| 15 |
420440701 |
Torx Flange Screw M6 X 55 |
| 16 |
420431390 |
Gasket |
| 17 |
420673392 |
Exhaust Manifold |
| 18 |
420942046 |
Lock Nut M6-10 |
