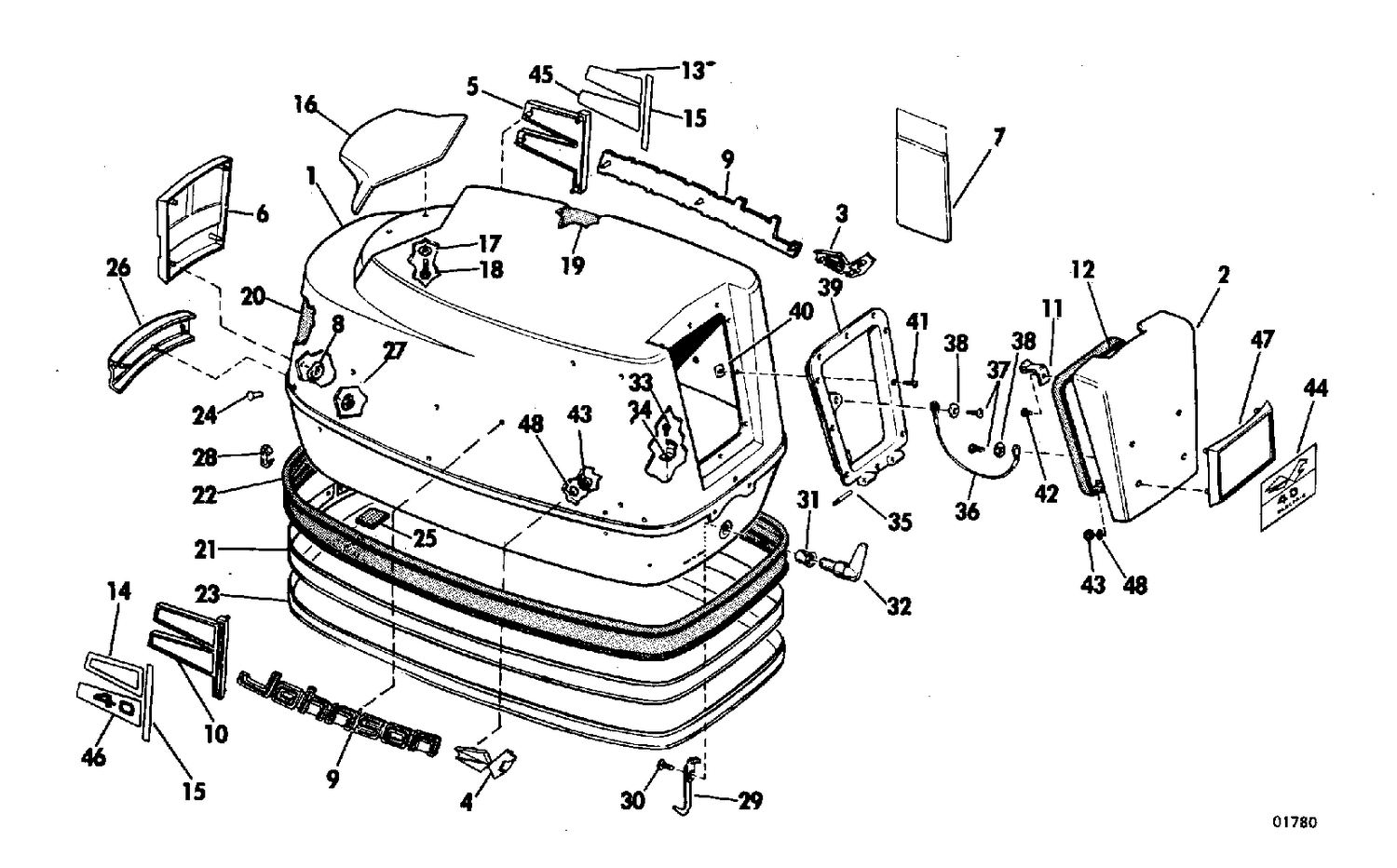

| Ref | Part Number | Description |
|---|
| 1 |
0384098 |
MOTOR COVER ASSEMBLY |
| 2 |
0384166 |
FRONT DOOR ASSEMBLY |
| 3 |
0315588 |
APPLIQUE, Seahorse ,port |
| 4 |
0315589 |
APPLIQUE, Motor cover port |
| 5 |
0315591 |
APPLIQUE, Pennant port |
| 6 |
0315880 |
APPLIQUE, Rear |
| 7 |
0314595 |
CASE, Owner card |
| 9 |
0314771 |
APPLIQUE, "johnson" |
| 10 |
0315592 |
APPLIQUE, Pennant stbd |
| 12 |
0307819 |
SEAL, Door |
| 13 |
0315593 |
APPLIQUE, Motor cover starboard |
| 14 |
0315594 |
APPLIQUE, Motor cover stbd |
| 15 |
0315597 |
PLATE, Flagstaff port & starboard |
| 16 |
0307678 |
HANDLE, Tilt |
| 17 |
0306407 |
LOCCKWASHER,Cover latch |
| 19 |
0307930 |
BLANKET, Sound top |
| 20 |
0307931 |
BKANKET, Sound, side |
| 21 |
0310317 |
BANDING TRIM, Molding strip |
| 22 |
0310279 |
MOLDING STRIP, Cover |
| 23 |
0312547 |
INSERT, Molding strip |
| 24 |
0310570 |
RIVERT, Motor cover |
| 25 |
0307924 |
PAD, Lower cover |
| 26 |
0312548 |
COVER, Molding strip, rear |
| 27 |
0204307 |
FASTENER |
| 28 |
0310227 |
CLIP, Banding |
| 29 |
0378322 |
LINK & HOOK |
| 30 |
0303311 |
SCR,Clamp,eng cable |
| 31 |
0533769 |
BUSHING, Front latch |
| 32 |
0308293 |
HANDLE, Front latch |
| 33 |
0307907 |
SCREW |
| 34 |
0307908 |
SPRING |
| 35 |
0306106 |
HINGE PIN |
| 36 |
0379116 |
STRAP, Door |
| 37 |
0307426 |
SCREW |
| 38 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306015. |
| 39 |
0379117 |
FRAME & FASTENER ASSY |
| 44 |
0315885 |
PLATE, Applique front door |
| 45 |
0315886 |
PLATE, Lower applique port |
| 46 |
0315887 |
PLATE, Lower applique stbd |
| 47 |
0315888 |
APPLIQUE, Front door |
| 48 |
0907813 |
STUD, Flame arrestor This part replaces 0314308. |
| 0383823 |
0383823 |
DECAL SET |
