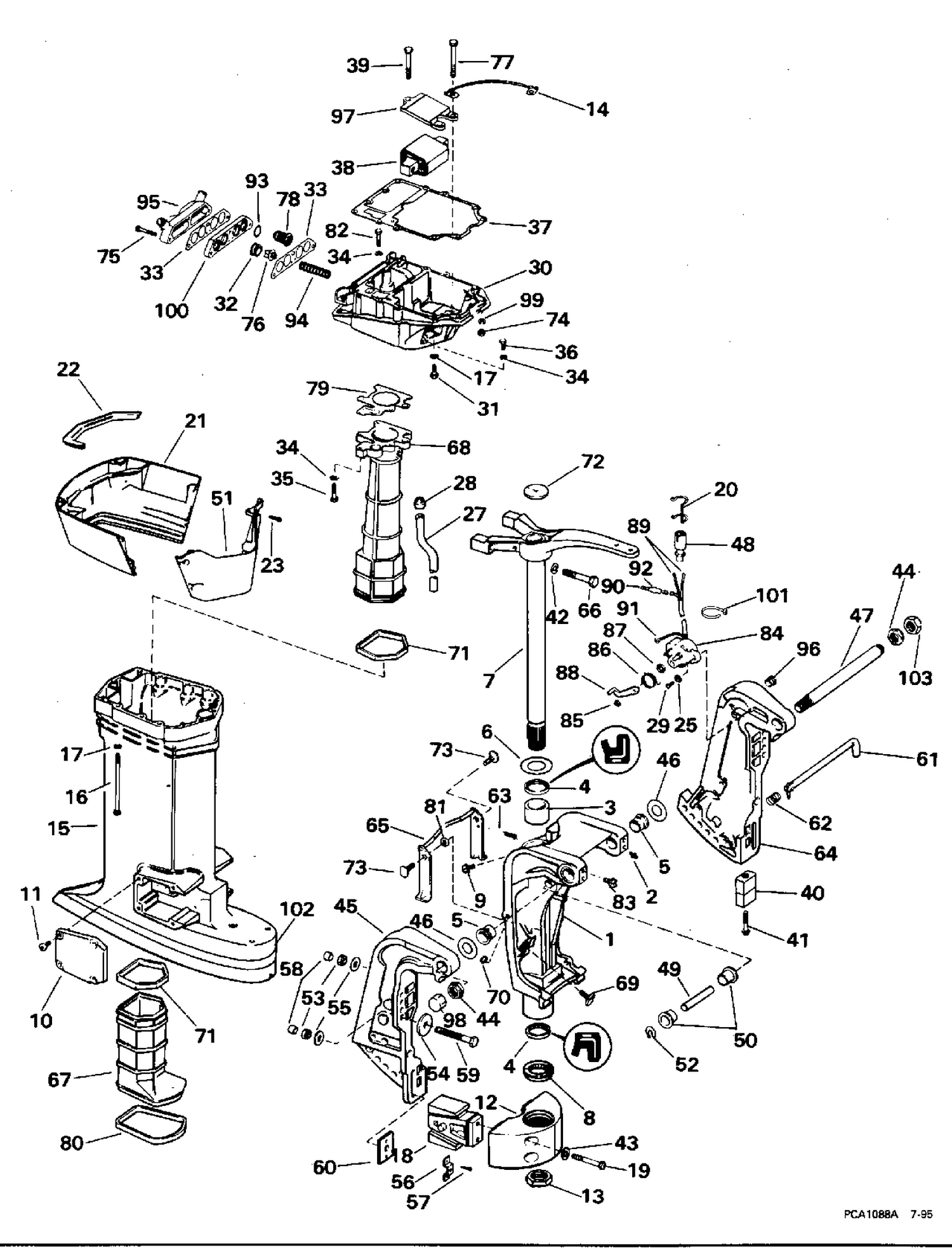

| Ref | Part Number | Description |
|---|
| 1 |
0432708 |
SWIVEL BRACKET |
| 1 |
0432710 |
SWIVEL BRACKET |
| 5 |
0321035 |
BRUSHING, Swivel bracket |
| 6 |
0320866 |
RONDELLE DE BUTÉE, arbre d'articulation |
| 7 |
0392518 |
STEERING ARM ASSY. |
| 7 |
0392519 |
STEERING ARM ASSY. |
| 8 |
0327696 |
CONTRE-CROU, arbre d'articulation |
| 9 |
0306014 |
VIS, ancrage |
| 10 |
0338741 |
COVER, Mount bracket lower |
| 11 |
0341013 |
SCREW, Cover This part replaces 0908668. |
| 12 |
0340006 |
BRACKET, Mount This part replaces 0339305. |
| 13 |
0320746 |
CROU, support de montage |
| 14 |
0583967 |
GROUND LEAD |
| 15 |
0341451 |
EXHAUST HOUSING, Outer |
| 15 |
0435318 |
EXHAUST HOUSING, Outer |
| 16 |
0328698 |
SCREW, Adapter to crankcase |
| 18 |
0434631 |
MOUNT ASSY., Lower |
| 19 |
0328078 |
SCREW, Mount |
| 20 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 21 |
0390131 |
COVER, Exhaust housing, rear |
| 22 |
0318258 |
SEAL Cover |
| 27 |
0323403 |
WATER TUBE |
| 27 |
0323404 |
WATER TUBE |
| 28 |
0305145 |
GROMMET |
| 30 |
0331039 |
ADAPTER, Exhaust housing |
| 32 |
0321692 |
GROMMET |
| 33 |
0332369 |
GASKET |
| 35 |
0306418 |
VIS, ancrage |
| 36 |
0306409 |
VIS, collecteur vers carter-moteur |
| 37 |
0342513 |
GASKET, Adapter to powerhead |
| 38 |
0395755 |
RUBBER MOUNT ASSY., Upper |
| 40 |
0433458 |
ANODE, Port stern bracket |
| 41 |
0333350 |
SCREW, Anode |
| 42 |
0322624 |
WASHER, Lag screw This part replaces 0313169. |
| 43 |
0306314 |
L'WASHER,Scr,long |
| 44 |
0335554 |
CROU, tube de relevage |
| 45 |
0333304 |
STERN BRACKET, Starboard |
| 47 |
0335553 |
TILT TUBE |
| 49 |
0320792 |
PIN |
| 51 |
0323800 |
COVER, Exhause housing, front, plastic |
| 52 |
0321054 |
SPRING CLIP |
| 53 |
0363254 |
NUT, Stern bracket screw This part replaces 0313623. |
| 54 |
0307238 |
RONDELLE |
| 55 |
0320248 |
RONDELLE, écrou |
| 56 |
0318273 |
Bolt hex retainer 1/2 in. |
| 57 |
0319886 |
SCREW |
| 58 |
0318572 |
Bolt thread protective cap 1/2 in. |
| 59 |
0318573 |
SCREW, Bracket mount, 3 1/2 in. (12.7 x 89mm) |
| 59 |
0331578 |
Engine mount bolt 5 x 1/2 in. |
| 59 |
0363011 |
SCREW, Stern bracket mounting, 1/2 x 5.75 in. (146 mm) This part replaces 0321577. |
| 59 |
0363012 |
SCREW, Bracket mounting This part replaces 0336676. |
| 60 |
0318272 |
Nut backing plate (square) 1/2 in. |
| 61 |
0436541 |
ROD Assy, Thrust |
| 62 |
0321053 |
SORUBG,Thrust rod |
| 64 |
0333303 |
STERN BRACKET ASSY., Port |
| 65 |
0390442 |
LOCATING LEVER, Rod |
| 66 |
0335612 |
SCREW, Upper |
| 67 |
0327796 |
EXHASUT HSG,Inner lower |
| 67 |
0327797 |
EXHAUST HOUSING, Inner lower |
| 68 |
0329556 |
EXHAUST HOUSING, Inner |
| 71 |
0320936 |
JOINT, boîtier échappement, inférieur |
| 72 |
0322302 |
SEAL, Adapter to frame |
| 73 |
0329109 |
SHOULDER SCREW |
| 75 |
0305652 |
VIS, manette des gaz |
| 76 |
0318395 |
CHECK VALVE |
| 77 |
0330931 |
VIS, support supérieur |
| 78 |
5005440 |
THERMOSTAT This part replaces 0434841. |
| 79 |
0323459 |
GASKET |
| 80 |
0320961 |
JOINT, boîtier d'engrenages vers carter intérieur |
| 82 |
0303398 |
VIS, support |
| 84 |
0586038 |
SENDING UNIT ASSY |
| 93 |
0321932 |
GASKET, Thermostat |
| 94 |
0317245 |
SPRING, Control valve |
| 95 |
0321690 |
COVER, Thermostat |
| 97 |
0331022 |
PLATE |
| 98 |
0317894 |
CACHE, tube de relevage |
| 100 |
0321693 |
VALVE BODY |
| 101 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 102 |
0342192 |
DECAL, Exhaust housing |
