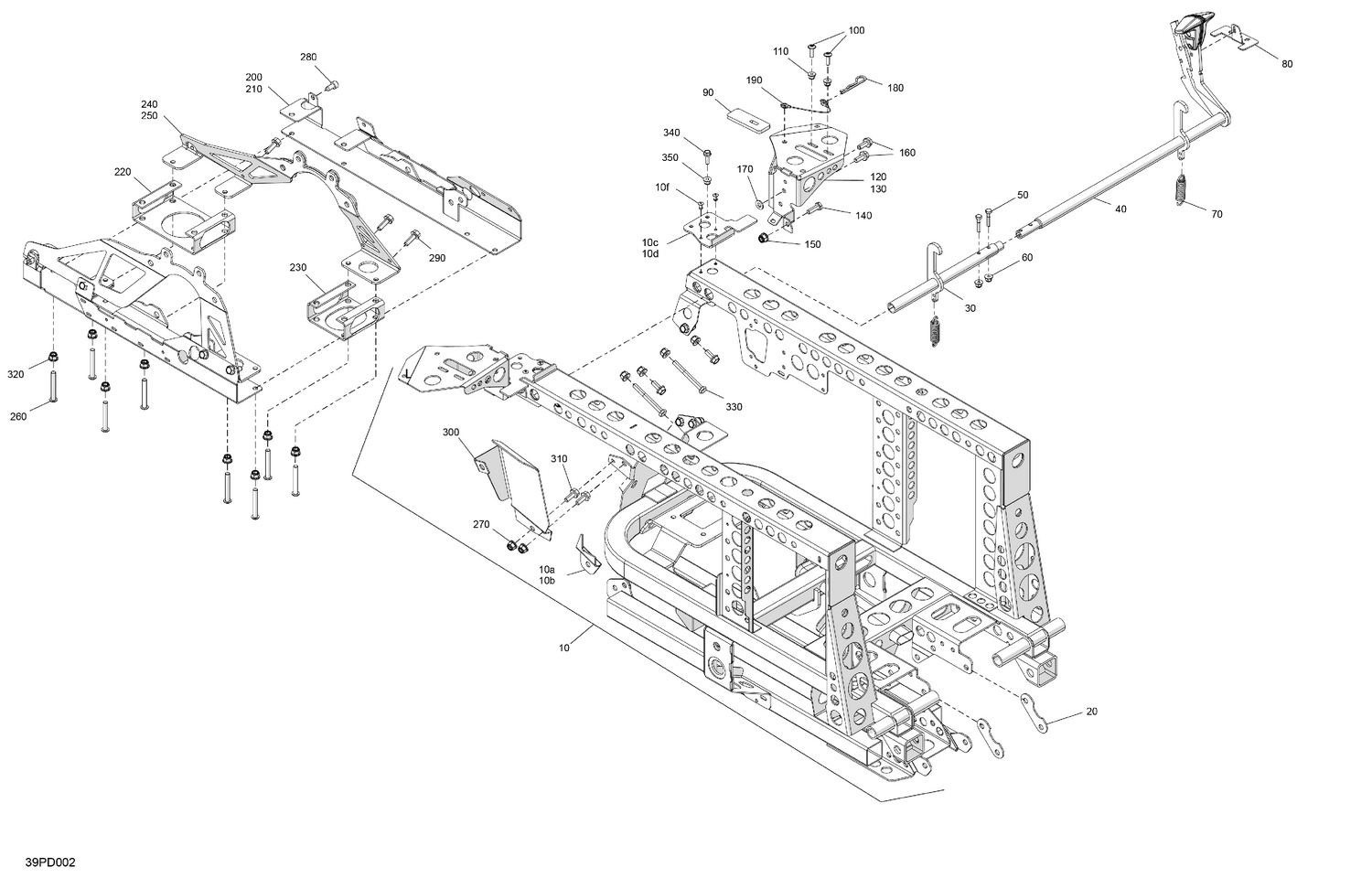

06- Frame - Rear Section
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 605356426 | LH Grip Plate |
| 10b | 605356425 | RH Grip Plate |
| 10c | 705204600 | LH Cargo Support |
| 10d | 705204601 | RH Cargo Support |
| 10f | 293150144 | Stavex Rivet |
| 20 | 705203564 | Support Plate |
| 30 | 705203669 | LH TUBE WELDED - Call your local BRP dealership |
| 40 | 705203670 | RH Tube |
| 50 | 250000480 | Hex Cap Screw DIN.931 |
| 60 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 70 | 415107100 | Spring |
| 80 | 705203834 | Lever Support |
| 90 | 708301280 | Rubber Collar |
| 100 | 250000722 | Torx Screw M6 X 20 |
| 110 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 120 | 705203611 | LH Rear Fender Support |
| 130 | 705203612 | RH Rear Fender Support |
| 140 | 250000556 | Hexagonal Screw |
| 150 | 233281414 | Hex. Flange Elastic Nut M8 |
| 160 | 207682046 | Hex. Flange Screw M8 X 20 |
| 170 | 503192494 | Washer |
| 180 | 505073670 | Cotter Spring |
| 190 | 293750069 | Retainer Cable |
| 200 | 705203724 | LH Lower Beam Reinforcement |
| 210 | 705203725 | RH Lower Beam Reinforcement |
| 220 | 705203726 | Front Support Plate |
| 230 | 705203727 | Rear Support Plate |
| 240 | 705203728 | LH Differential Support Reinforcement |
| 250 | 705203729 | RH Differential Support Reinforcement |
| 260 | 250000777 | Torx Screw Scotch Grip M8X60 |
| 270 | 233281416 | Hex. Elastic Flange Nut M8 |
| 280 | 250000678 | Forming Screw HD.DIN.7500E |
| 290 | 250000376 | Hex Forming Screw DIN.7500D |
| 300 | 707601726 | Heat Shield |
| 310 | 207682046 | Hex. Flange Screw M8 X 20 |
| 320 | 233281416 | Hex. Elastic Flange Nut M8 |
| 330 | 207087544 | HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 340 | 207662054 | Hex. Flange Screw M6 X 20 |
