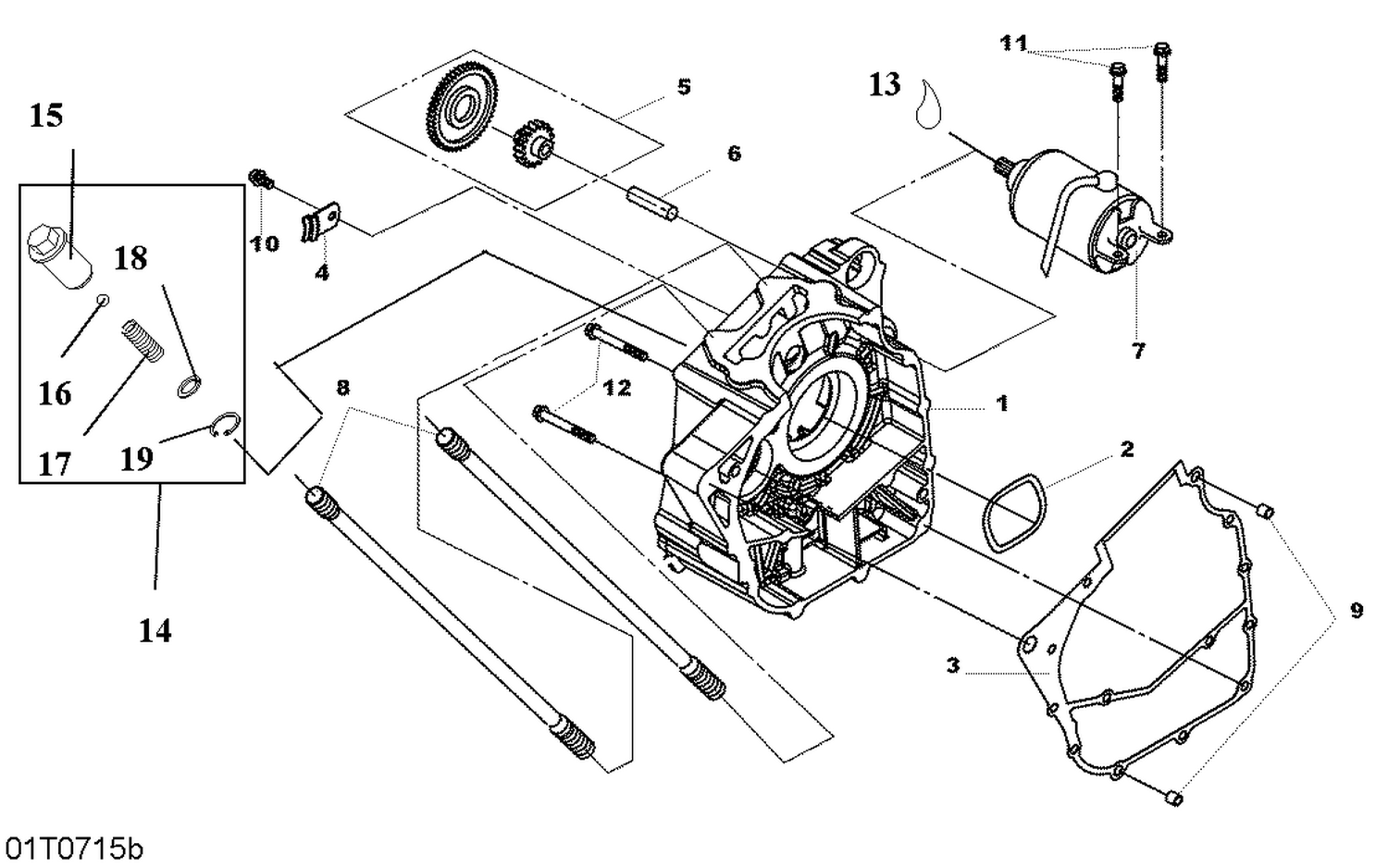

01- Right Crankcase Half
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S11100RB1000 | RH Crankcase Ass'y |
| 2 | S11108HMA000 | Wave Washer |
| 3 | S11191RB1005 | Crankcase Gasket This part replaces S11191RB1000. |
| 4 | S14151HMA000 | Cam Chain Setting Plate |
| 5 | S28101RB1000 | Starter Reduction Gear Ass'y |
| 6 | S28102RB1000 | Starter Reduction Gear Shaft |
| 7 | S31200RB1000 | Starter Motor |
| 8 | S90031HMA000 | Cylinder Stud |
| 9 | S9430108140 | Dowel Pin |
| 10 | S960010601008 | Flanged Bolt M6 X 10 |
| 11 | S960010602200 | Flanged Bolt M6 X 22 |
| 12 | S960010605500 | Flange Bolt M6 X 55 |
| 13 | Not | Available As Spare Part - Engine Oil |
| 14 | S15200HMA000 | Oil Relief Valve Ass'y |
| 15 | NASP/NDPR | Not Available As Spare Parts |
| 16 | NASP/NDPR | Not Available As Spare Parts |
| 17 | NASP/NDPR | Not Available As Spare Parts |
| 18 | NASP/NDPR | Not Available As Spare Parts |
