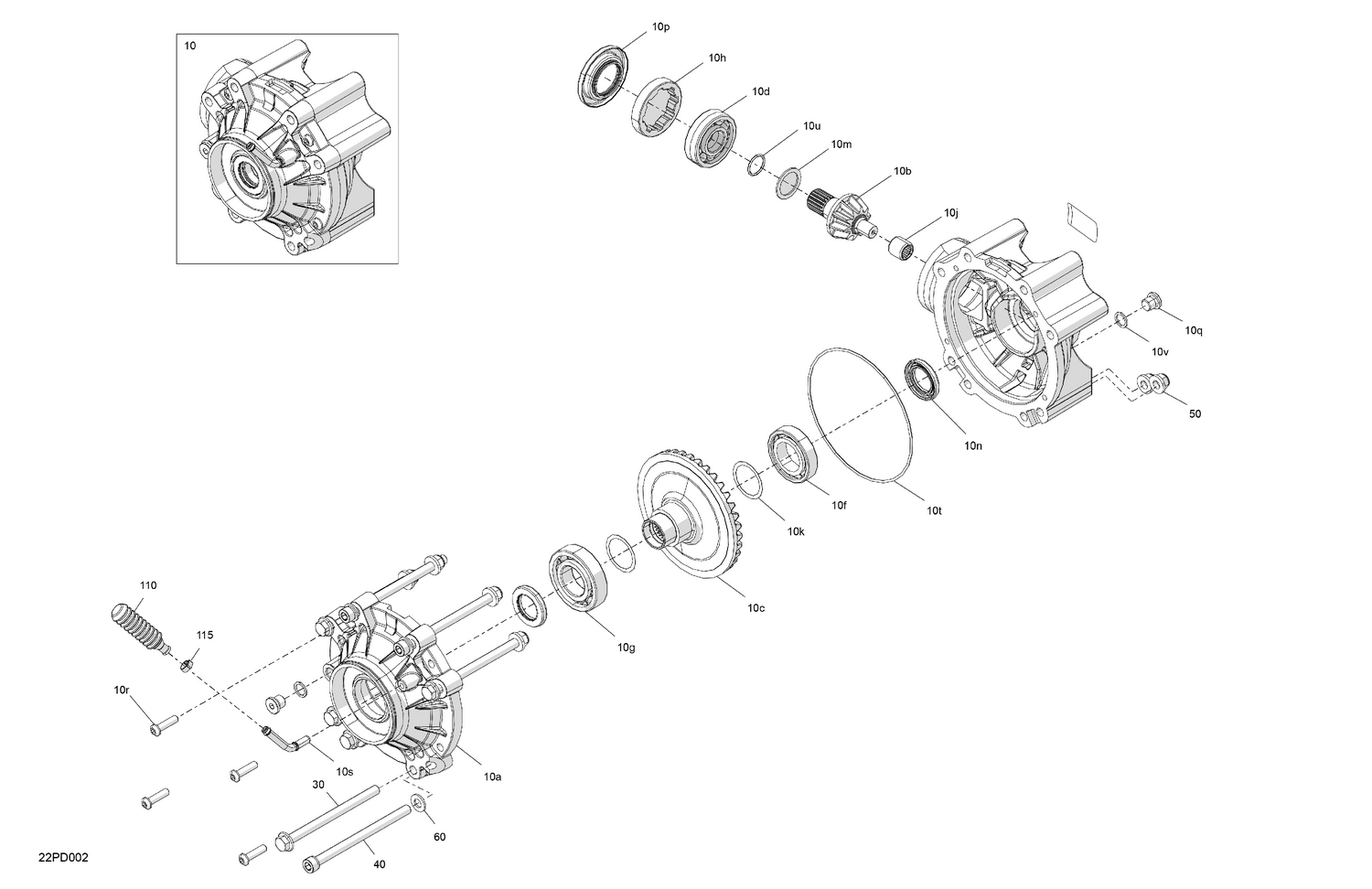

04- Drive - Final Drive Unit
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 705502389 | Rear Cover |
| 10b | 705502823 | Pinion 10 Teeth |
| 10c | 705502822 | Gear 36 Teeth |
| 10d | 705502736 | Ball Bearing |
| 10f | 705502737 | Ball Bearing |
| 10g | 705502738 | Ball Bearing |
| 10h | 705502058 | Needle Bearing |
| 10j | 705401603 | Nut |
| 10k | 705502060 | Differential Shim 0.02 mm |
| 10m | 705502061 | Pinion Gear Shim 1.67 mm |
| 10n | 705501996 | Oil Seal |
| 10p | 705402405 | Oil Seal |
| 10q | 705500504 | Fill Level Plug |
| 10r | 205483046 | SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership |
| 10s | 705501584 | Breather Tube |
| 10t | 705502064 | Seal |
| 10u | 705502065 | O-Ring |
| 10v | 705500506 | Copper Washer |
| 30 | 250001041 | Hex. Flange Screw M10 X 135 |
| 40 | 231003587 | Socket Screw HD.din.912 |
| 50 | 233201436 | Hex. Flange Elastic Nut M10 |
| 60 | 20005 | WASHER M10 - Call your local BRP dealership |
| 110 | 705400552 | Rubber Bellow |
