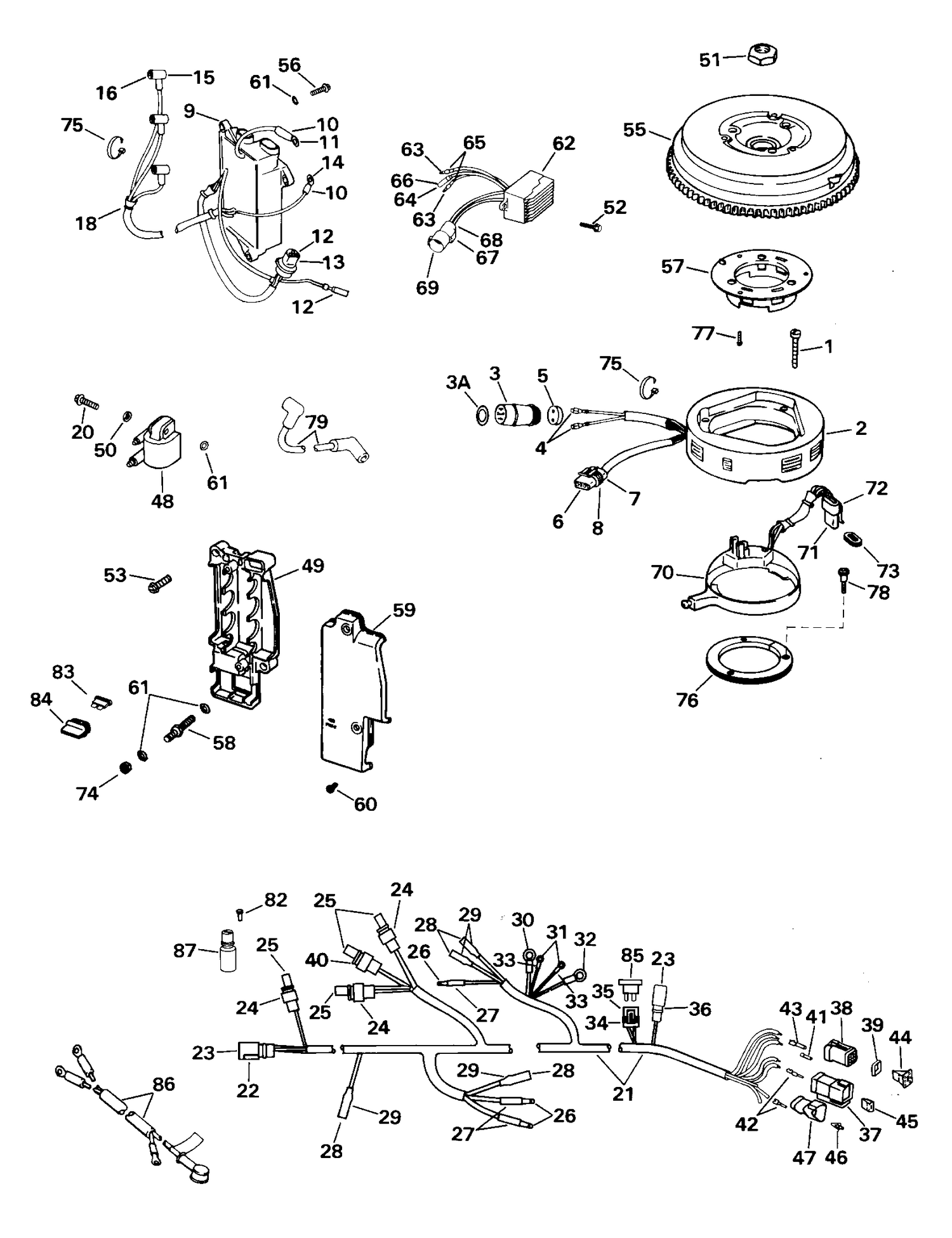

IGNITION SYSTEM - PL
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 9 | 0586472 | POWER PACK |
| 21 | 0586043 | MOTOR CABLE ASSY. |
| 48 | 0586323 | COIL ASSY. |
| 55 | 0584887 | FLYWHEEL ASSY. |
| 57 | 0514372 | ENCODER |
| 70 | 0584824 | SENSOR ASSY. |
| 75 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 76 | 0340842 | SENSOR SUPPORT |
| 77 | 0335739 | SCREW, Conn. brkt. to mntg. brkt. |
| 78 | 0340867 | SCREW, Sensor support |
| 79 | 0584925 | LEAD ASSY., Ignition coil |
| 86 | 0584381 | CÂBLE DE BATTERIE |
