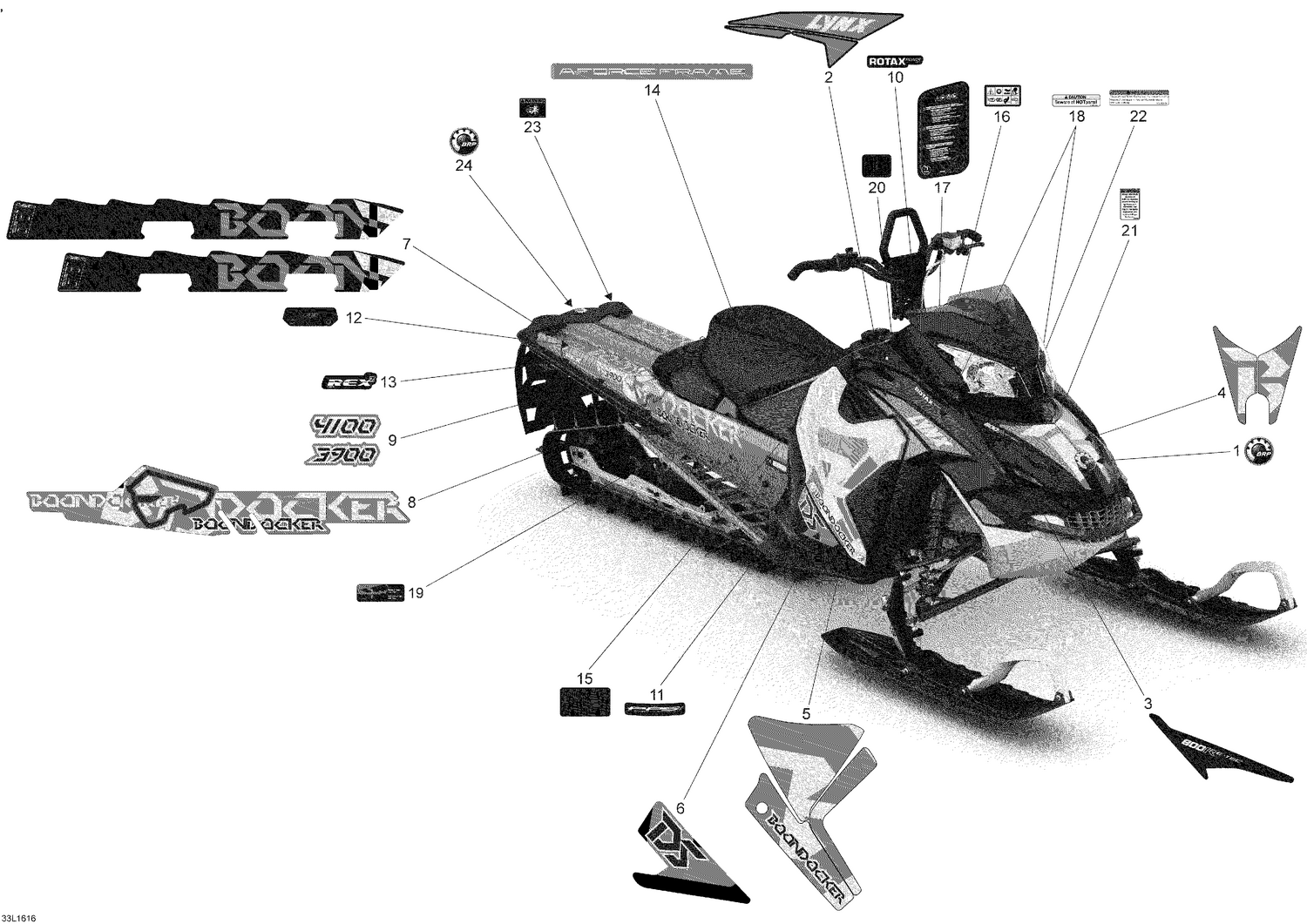

09- Decals
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 516008739 | Logo 68mm "BRP" This part replaces 516006888. |
| 2 | 516007042 | LH Side Panel Decal |
| 2 | 516007043 | RH Side Panel Decal |
| 3 | 516007046 | LH Hood Decal |
| 3 | 516007047 | RH Hood Decal |
| 5 | 516007049 | LH Side Panel Decal |
| 5 | 516007050 | RH Side Panel Decal |
| 6 | 516007053 | LH Side Panel Decal |
| 6 | 516007054 | RH Side Panel Decal |
| 8 | 516006984 | LH Tunnel Decal |
| 8 | 516006985 | RH Tunnel Decal |
| 10 | 516006331 | Rotax Power Decal |
| 11 | 516006805 | PPS Decal |
| 12 | 516006485 | LinkQ Decal |
| 13 | 516006392 | REX2 Platform Decal |
| 14 | 516007060 | A-Force Frame Decal |
| 15 | 5447012 | Oil Checking Decal |
| 16 | 516003919 | Warning Decal |
| 17 | 516004607 | Instruction/Warning Decal (FI/SWE/EN) |
| 18 | 516006903 | Hot Parts Decal |
| 19 | 516007589 | Track Tension Decal |
| 20 | 516006361 | Console Buttonhole Cover Decal |
| 21 | 516005583 | WARNING DECAL, INJECTORS - Call your local BRP dealership |
| 22 | 516006900 | Driven Pulley Shield Warning Decal |
| 23 | 516007584 | Rotating Track Warning Decal |
