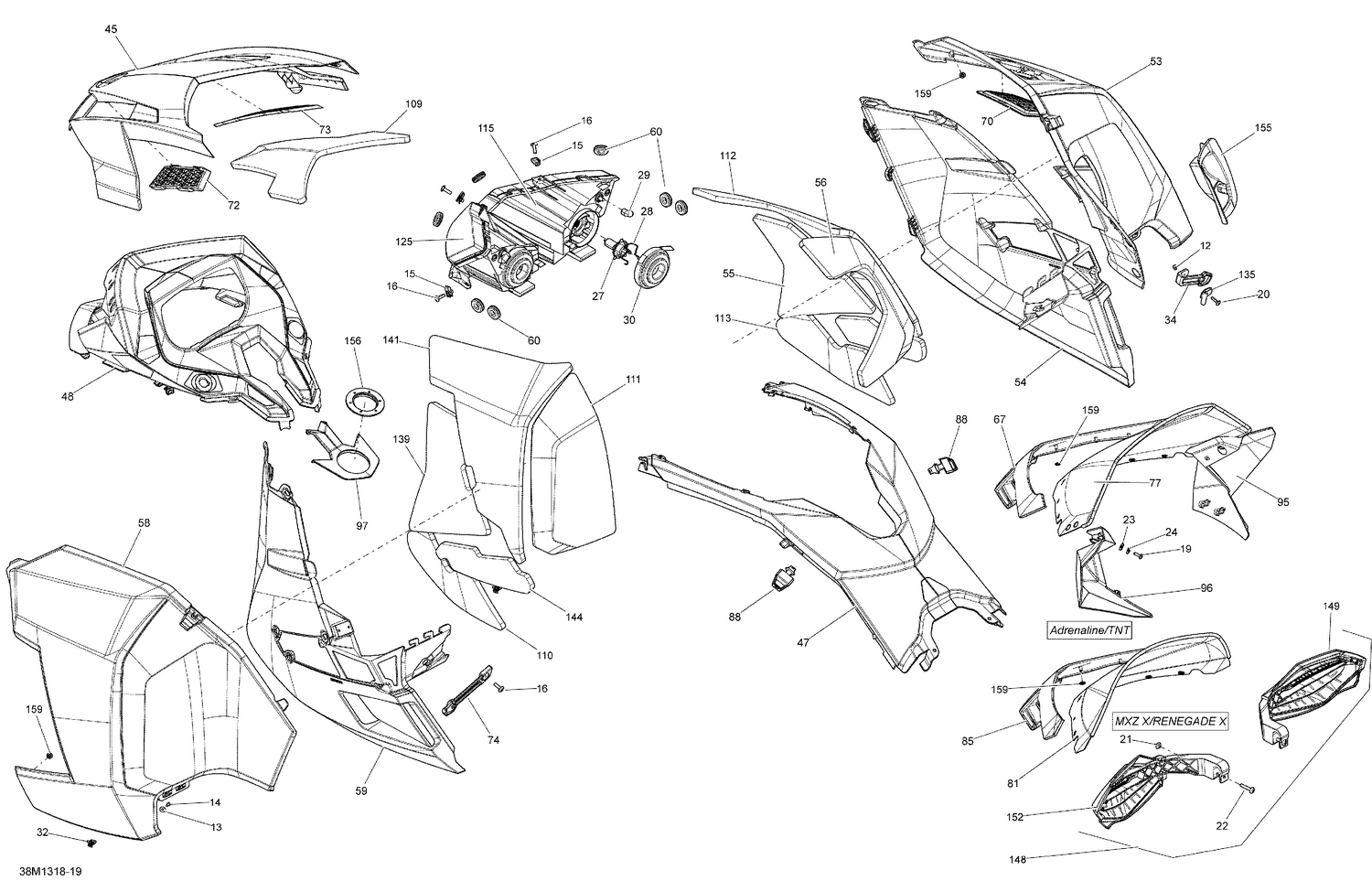

| Ref | Part Number | Description |
|---|
| 12 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 13 |
234042600 |
Flat Washer 4 mm, Stainless |
| 14 |
241141660 |
Hex. Flange Screw K40 X 16 |
| 15 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 16 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 20 |
250000792 |
Torx Screw M5 X 20 This part replaces 250000465. |
| 21 |
250000498 |
SQUARE NUT M6 - Call your local BRP dealership |
| 22 |
250000501 |
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership |
| 27 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 28 |
515176493 |
BULB HOLDER - Call your local BRP dealership |
| 29 |
515176498 |
Cap |
| 30 |
219800280 |
Rubber Cap Protector This part replaces 515176499. |
| 32 |
517302785 |
Edge Clip |
| 34 |
517303612 |
RH Panel Latch |
| 45 |
517303739 |
Black Hood |
| 45 |
517304374 |
HOOD, BRIGHT WHITE - Call your local BRP dealership |
| 45 |
517305158 |
HOOD B-341 - Call your local BRP dealership |
| 45 |
517305159 |
HOOD B-321 - Call your local BRP dealership |
| 47 |
517303741 |
Black Console |
| 47 |
517304381 |
CONSOLE, BRIGHT WHITE - Call your local BRP dealership |
| 47 |
517305163 |
MAGNESIUM CONSOLE ASS'Y - Call your local BRP dealership |
| 47 |
517305259 |
CONSOLE B-341 ASSY - Call your local BRP dealership |
| 48 |
517304915 |
INDICATOR SUPPORT - Call your local BRP dealership |
| 54 |
517304373 |
PANEL_BODY LWR R B-160 - Call your local BRP dealership |
| 55 |
517304894 |
CENTRAL FOAM PANEL RH - Call your local BRP dealership |
| 56 |
517304895 |
REAR PANEL FOAM RH - Call your local BRP dealership |
| 58 |
517305174 |
PANEL_BODY LH B-321 - Call your local BRP dealership |
| 58 |
517305327 |
White LH Pannel |
| 59 |
517304362 |
PANEL_BODY LWR L B-160 - Call your local BRP dealership |
| 60 |
517303756 |
Grommet |
| 74 |
517303808 |
LH Panel Latch |
| 77 |
517303887 |
MEDIUM WINDSHIELD (395) - Call your local BRP dealership |
| 88 |
517305000 |
Panel Latch |
| 97 |
517304027 |
Deep Black, Cap Console |
| 111 |
517304904 |
LH REAR PANEL FOAM - Call your local BRP dealership |
| 115 |
517304194 |
RH Headlamp Ass'y |
| 125 |
517304195 |
LH Headlamp Ass'y |
| 135 |
517304221 |
Latch Support |
| 149 |
517305042 |
YELLOW RH WIND DEFLECTOR - Call your local BRP dealership |
| 152 |
517305043 |
YELLOW LH WIND DEFLECTOR - Call your local BRP dealership |
| 155 |
517304500 |
Black, RH Console |
| 156 |
517304518 |
Console Nut |
