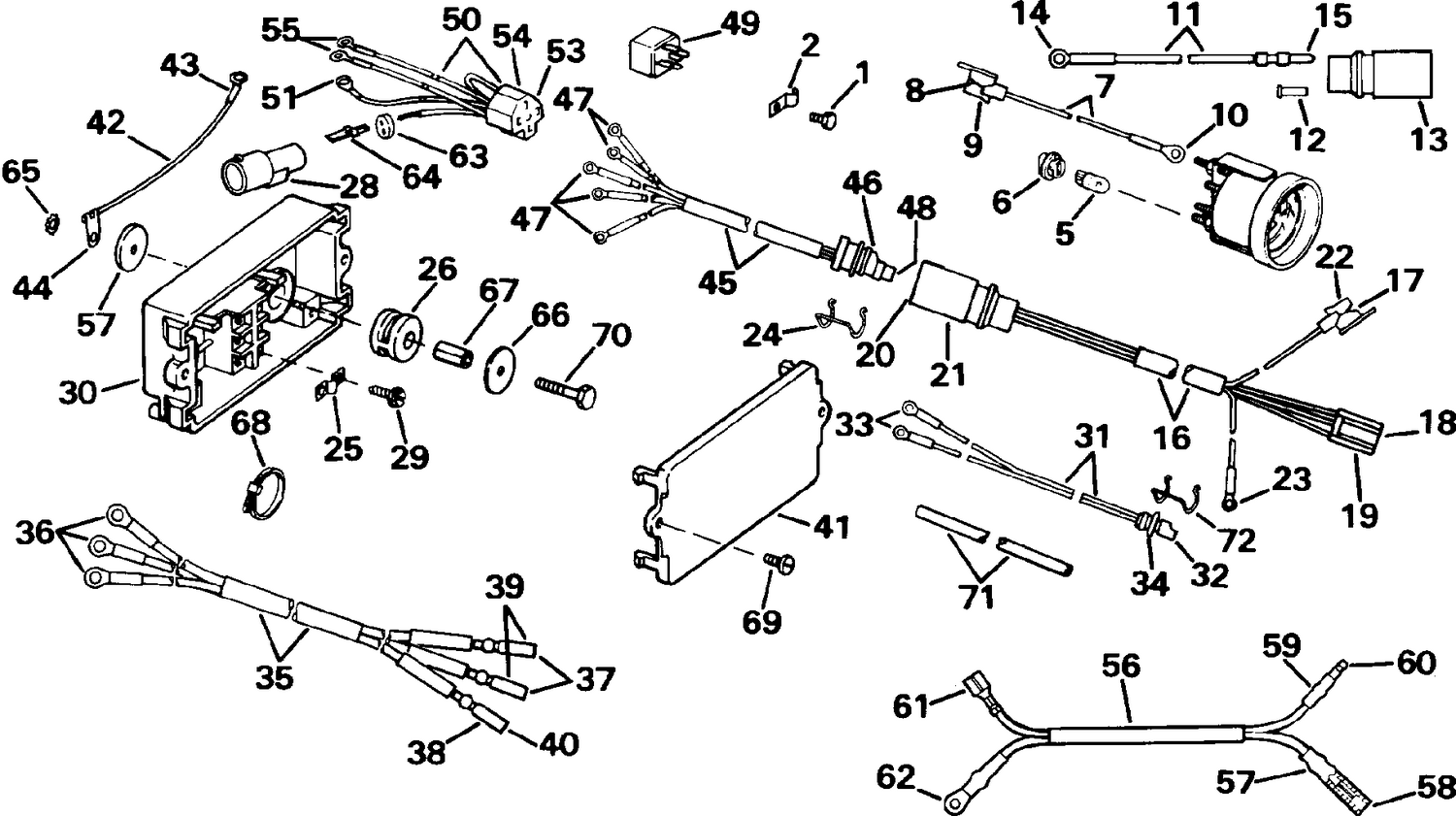

| Ref | Part Number | Description |
|---|
| 2 |
0317000 |
COLLIER, câble |
| 3 |
0583653 |
TRIM GAUGE |
| 7 |
0583255 |
LEAD ASSEMBLY |
| 11 |
0582093 |
LEAD ASSY |
| 17 |
0512904 |
BULLET TERMINAL |
| 24 |
0512743 |
DISPOSITIF DE RETENUE |
| 25 |
0315004 |
FIL DE LIAISON, bornier |
| 26 |
0315057 |
MOUNT, Bracket |
| 29 |
0329182 |
VIS, borne |
| 30 |
0512776 |
BASE Junction box |
| 31 |
0583105 |
CABLE ASSY., Sending unit |
| 35 |
0583903 |
CABLE ASSY., Junction box to trim switch |
| 41 |
0583707 |
COVER ASSY |
| 42 |
0582671 |
LEAD ASSY. Junction box ground |
| 45 |
0583158 |
CONNECTOR |
| 50 |
0584300 |
CONN ASSY., Green leads (trim down) |
| 50 |
0584301 |
CONN ASSY., Blue leads (trim up) |
| 56 |
0584303 |
CABLE ASSY., Junction box to tilt limit swit h |
| 67 |
0331984 |
CLAMP, Hose |
| 68 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 69 |
0329182 |
VIS, borne |
| 70 |
0328726 |
SCREW (Use existing coil screw) |
| 0584190 |
0584190 |
JUNCTION BOX & COVER ASSY. |
