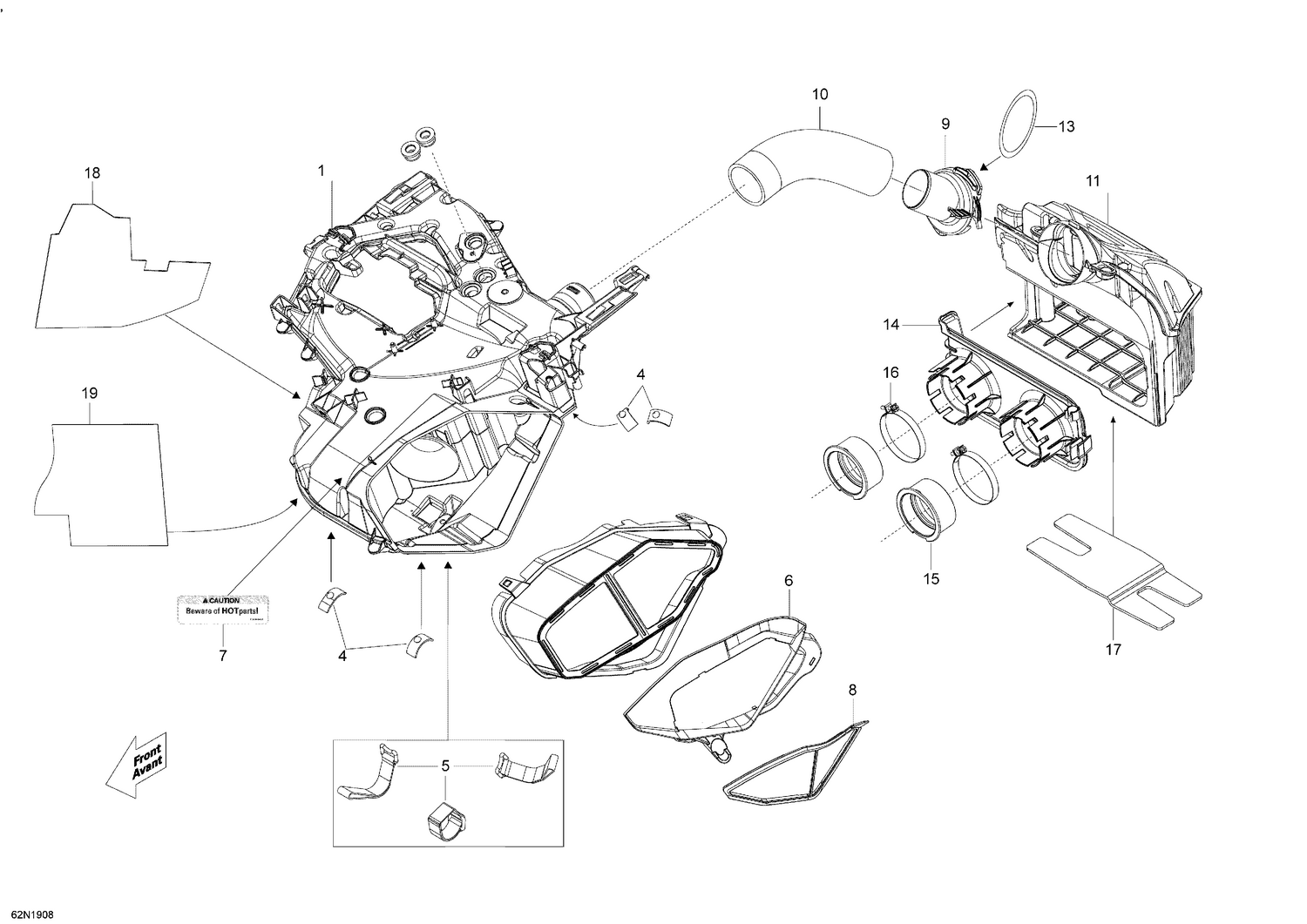

02- Air Intake Manifold - 550F
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 508000715 | Secondary Chamber Ass'y |
| 4 | 508000537 | Stopper |
| 5 | 508000820 | Velcro Strip |
| 6 | 508001021 | Adapter |
| 7 | 516006903 | Hot Parts Decal |
| 8 | 508000609 | Air Filter |
| 9 | 508000562 | Link |
| 10 | 508000406 | Tube |
| 11 | 508000680 | Primary Chamber Ass'y |
| 13 | 293300115 | O-Ring |
| 14 | 508000564 | ADAPTER PLATE - Call your local BRP dealership |
| 15 | 508000594 | Air Intake Adapter |
| 16 | 508000369 | Gemi Clamp |
| 17 | 508000674 | Insulated Foam |
| 18 | 508000684 | Heat Shield |
