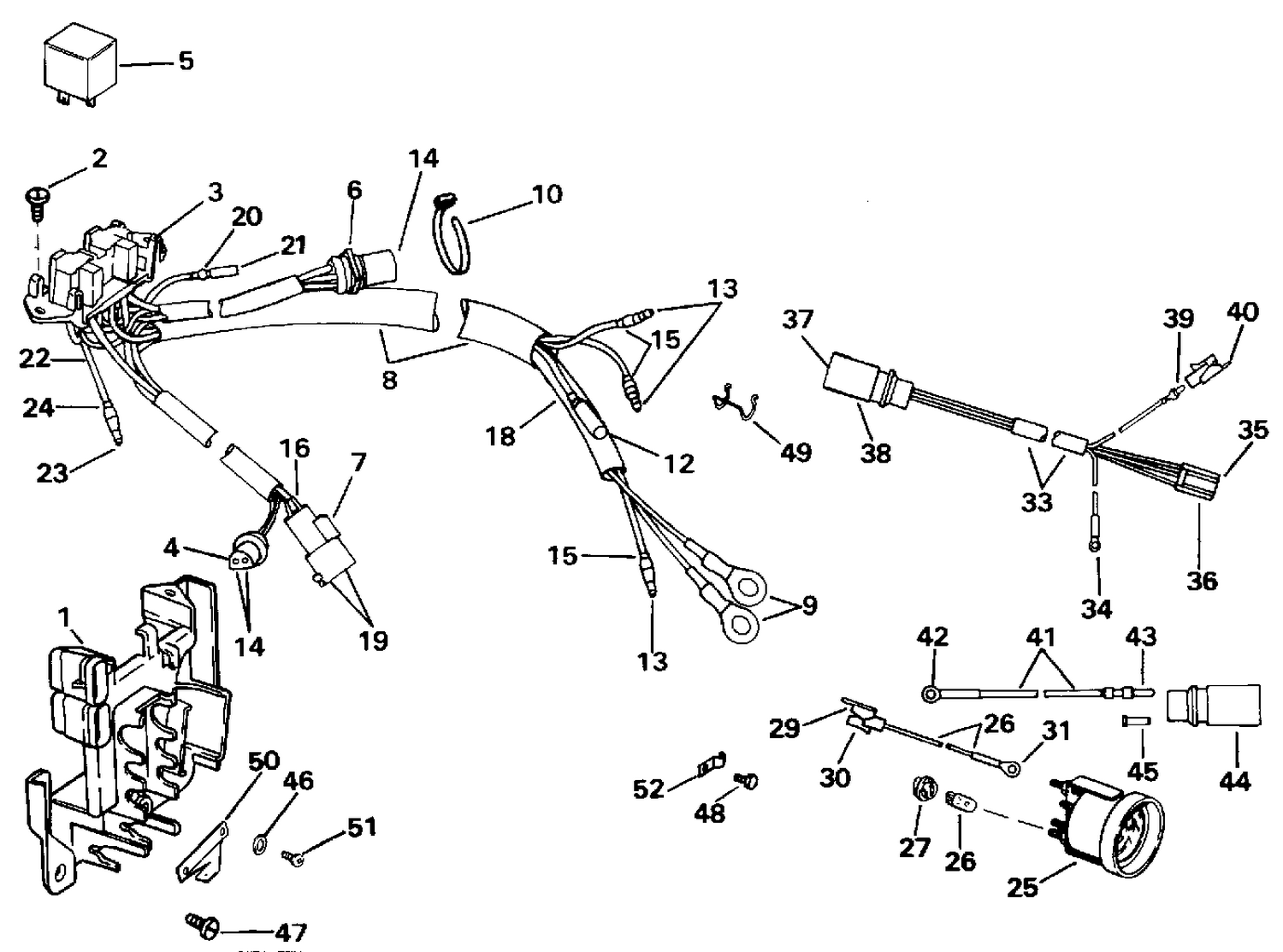

POWER TRIM/TILT ELECTRICAL
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0584673 | BRACKET, Trim & tilt relays |
| 8 | 0584735 | CABLE ASSY. |
| 22 | 0584377 | LEAD ASSY., Relay to trim limiting switch |
| 25 | 0583653 | TRIM GAUGE |
| 28 | 0583255 | LEAD ASSEMBLY |
| 33 | 0583207 | CABLE ASSY., Switch & gauge |
| 39 | 0512904 | BULLET TERMINAL |
| 41 | 0582093 | LEAD ASSY |
| 49 | 0512743 | DISPOSITIF DE RETENUE |
| 50 | 0514005 | SUPPORT, connecteur sectionneur de batterie |
| 51 | 0514162 | SCREW, Bracket |
| 0584736 | 0584736 | RELAY & CABLE ASSY. |
