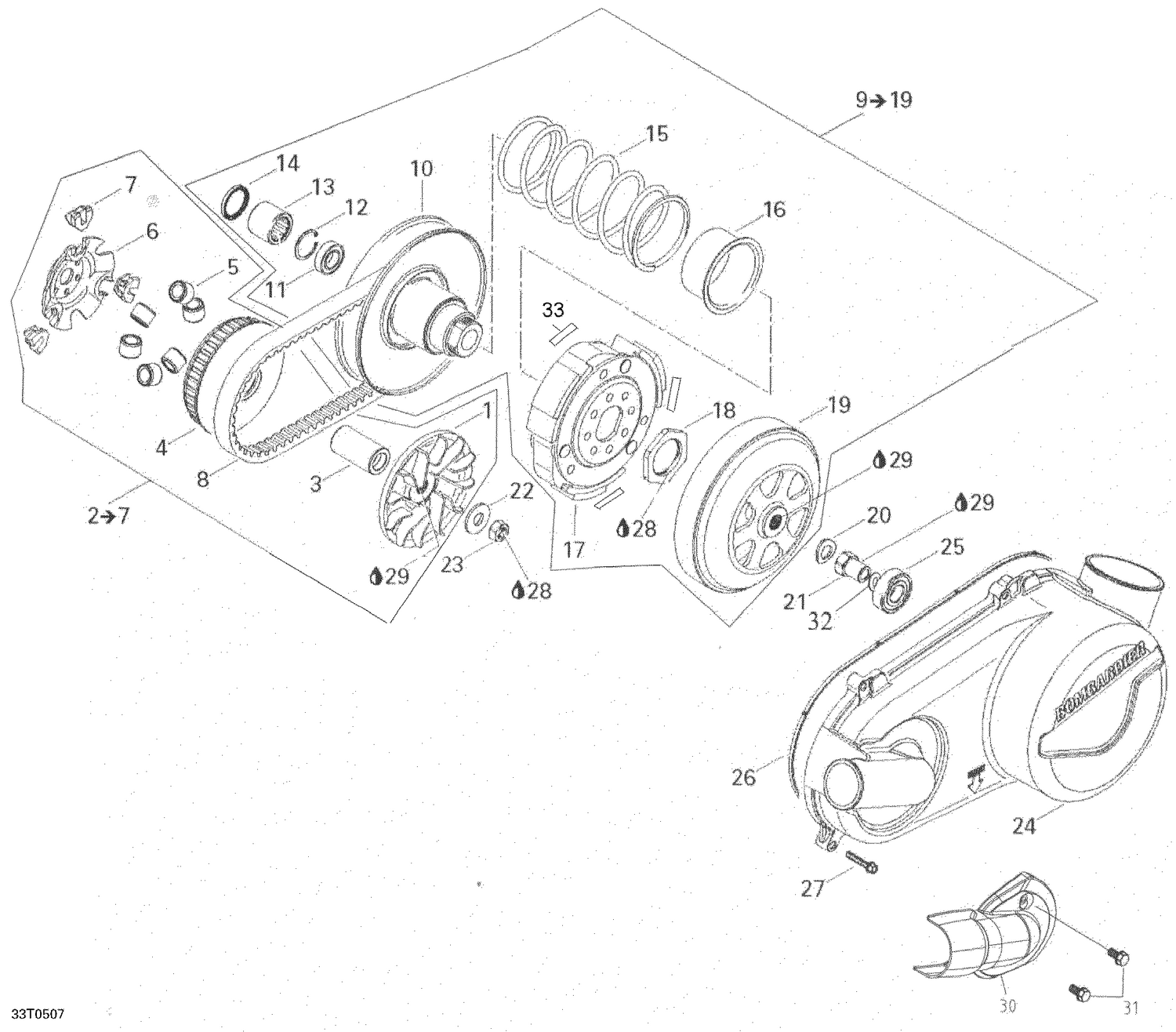

| Ref | Part Number | Description |
|---|
| 1 |
420280092 |
Fixed Pulley |
| 3 |
420233779 |
Spacer |
| 4 |
420280117 |
Primary Drive Pulley |
| 5 |
420281310 |
ROLLER KIT - Call your local BRP dealership |
| 6 |
420259657 |
Ramp Plate |
| 7 |
420281320 |
SLIDE PIECE, 3 PIECES - Call your local BRP dealership |
| 8 |
A23100179000 |
BELT-V - Call your local BRP dealership This part replaces 420280220. |
| 10 |
420684011 |
CVT DRIVEN UNIT - Call your local BRP dealership |
| 11 |
420632420 |
BALL BEARING - Call your local BRP dealership |
| 12 |
420945615 |
RETAINING RING - Call your local BRP dealership |
| 13 |
420659400 |
Sprag Clutch |
| 14 |
420631090 |
OIL SEAL - Call your local BRP dealership |
| 15 |
420239402 |
SPRING - Call your local BRP dealership |
| 16 |
420627172 |
Spring Seat |
| 17 |
420659252 |
CLUTCH ASS?Y - Call your local BRP dealership |
| 18 |
420242040 |
HEX. NUT M10 - Call your local BRP dealership |
| 19 |
420259664 |
CLUTCH DRUM - Call your local BRP dealership |
| 20 |
420945754 |
LOCK WASHER - Call your local BRP dealership |
| 21 |
420242230 |
NUT M12 - Call your local BRP dealership |
| 22 |
420227180 |
Thrust Washer |
| 23 |
420242515 |
HEX. NUT M12 - Call your local BRP dealership |
| 24 |
A11341179000 |
Transmission Cover |
| 25 |
A961006203LLU |
BALL BEARING - Call your local BRP dealership |
| 26 |
A11359179000 |
Rubber Gasket |
| 27 |
420241941 |
HEX. FLANGED SCREW M6 X 30 - Call your local BRP dealership |
| 28 |
293800060 |
Loctite 243, 10 ml |
| 29 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 30 |
A11347179000 |
CVT Cover |
| 31 |
A9151006012 |
Torx Screw M6 X 12 |
| 32 |
293300058 |
O-RING - Call your local BRP dealership |
