Home / BRP / EVINRUDE / 1994 / 225 / 10- Electrical Accessories

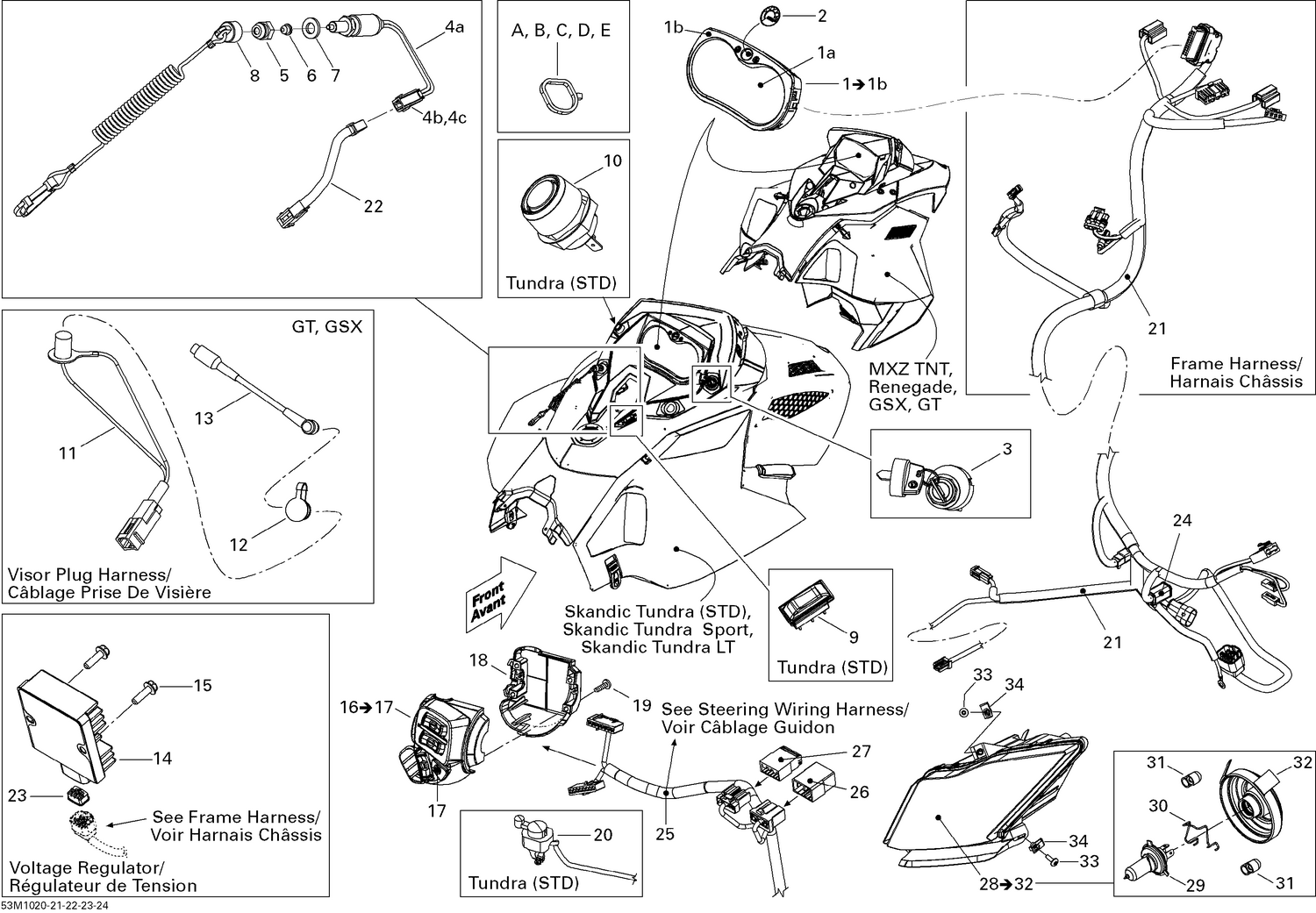

10- Electrical Accessories

10- Electrical Accessories

Parts (41)

RefPart NumberDescription
A 414115200 Tie-Rap 180 mm
B 293750002 Tie Wrap 142 mm
C 293750008 Tie Wrap 368 mm
D 293750001 Tie Wrap 94 mm
1a 415129349 Lens
1b 415129348 Gauge Ring This part replaces 415129491.
2 516006224 BRP Logo 20MM x 2MM This part replaces 219902677.
3 515177063 Ignition Swirch This part replaces 515176781.
4a 515175653 Brake Switch
4b 515175232 Male Terminal
4c 515175654 Male Terminal Housing, 2 Circuits
5 515145900 Switch Nut
6 570151100 Plunger Cap
7 503183500 WASHER - Call your local BRP dealership
8 515178283 Cap Ass'y This part replaces 515176463.
9 XXX Not Available As Spare Parts
10 XXX Not Available As Spare Parts
11 XXX Not Available As Spare Parts
12 XXX Not Available As Spare Parts
13 XXX Not Available As Spare Parts
14 515176699 Voltage Regulator
15 210262040 Hex. Flange Screw M6 X 20
17 515176088 Start/RER Button
18 515175926 Switch Housing Plate
19 250000263 Torx Screw #8-18
20 XXX Not Available As Spare Parts
21 515176882 FRAME HARNESS - Call your local BRP dealership
21 XXX Not Available As Spare Parts
22 515176974 FILTER TACHOMETER HARNESS - Call your local BRP dealership
23 515176681 Lock
24 515176234 FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership
25 515176995 Steering Wiring Harness Ass'y This part replaces 515176567.
25 XXX Not Available As Spare Parts
26 515175817 Male Terminal Housing, 8 Circuits
27 515175662 Male Terminal Housing, 6 Circuits
29 515176274 Halogen Bulb, 60/55 W, 12 V ( H4 )
30 Not Available As Spare Part - Bulb Holder
31 515176498 Cap
32 219800280 Rubber Cap Protector This part replaces 515176499.
33 250000722 Torx Screw M6 X 20 This part replaces 250000128.
34 250100198 Panel Nut M6 X 1.0 This part replaces 250000048.
