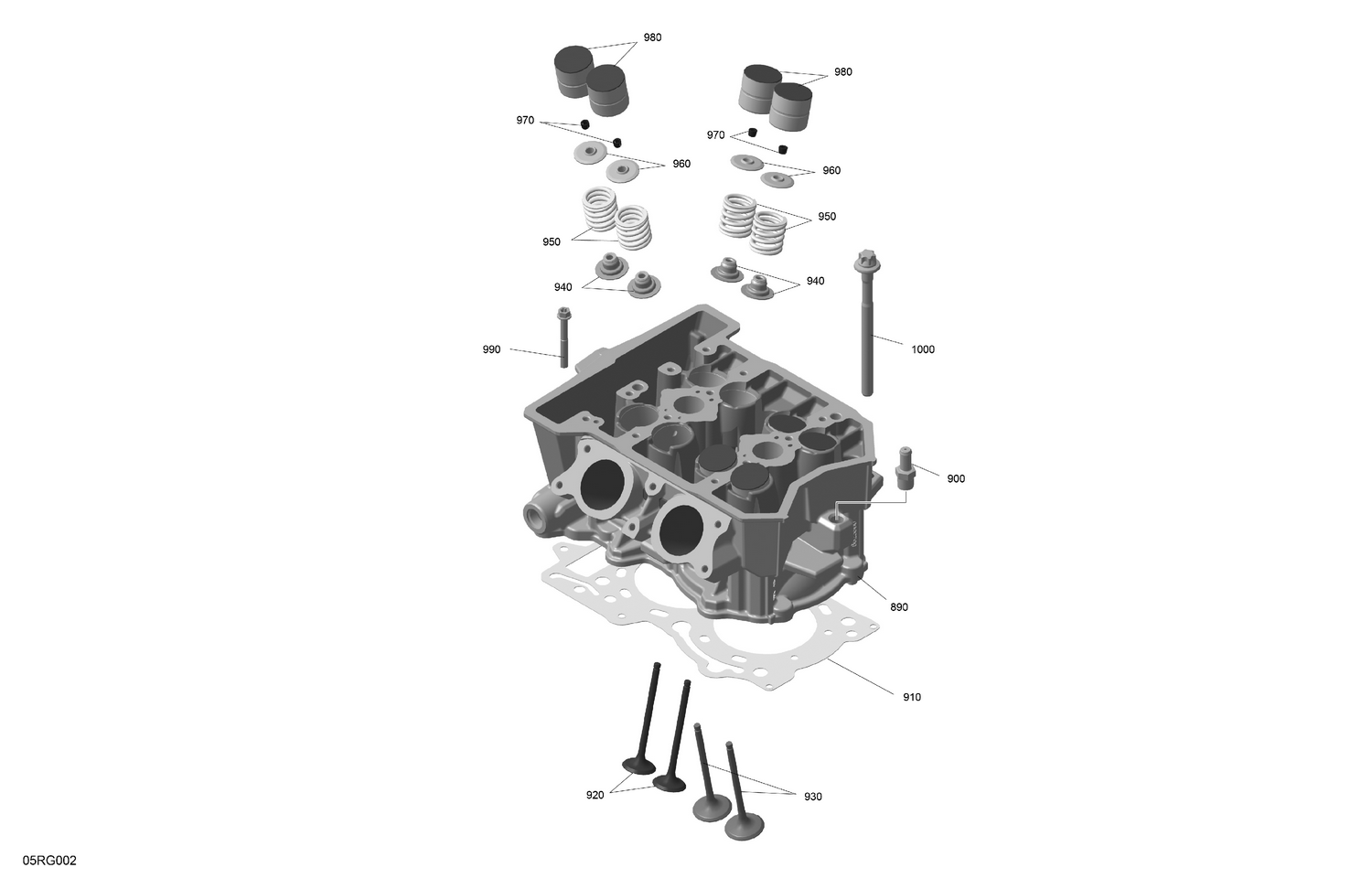

01- ROTAX - Cylinder Head
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 890 | 420623807 | Cylinder head Ass'y |
| 900 | 420441420 | Hose Nipple |
| 910 | 420431612 | Cylinder Head Gasket |
| 920 | 420855144 | Exhaust Valve 25MM |
| 930 | 420855131 | Intake Valve 29MM |
| 940 | 420431671 | Valve Stem Seal |
| 950 | 420939540 | Valve Spring |
| 960 | 420855150 | Valve Spring Retainer |
| 970 | 420254630 | Cotter Valve |
| 980 | 420855165 | Valve Lifter Bucket |
| 990 | 420440324 | Torx Flange Screw M6 X 45 |
