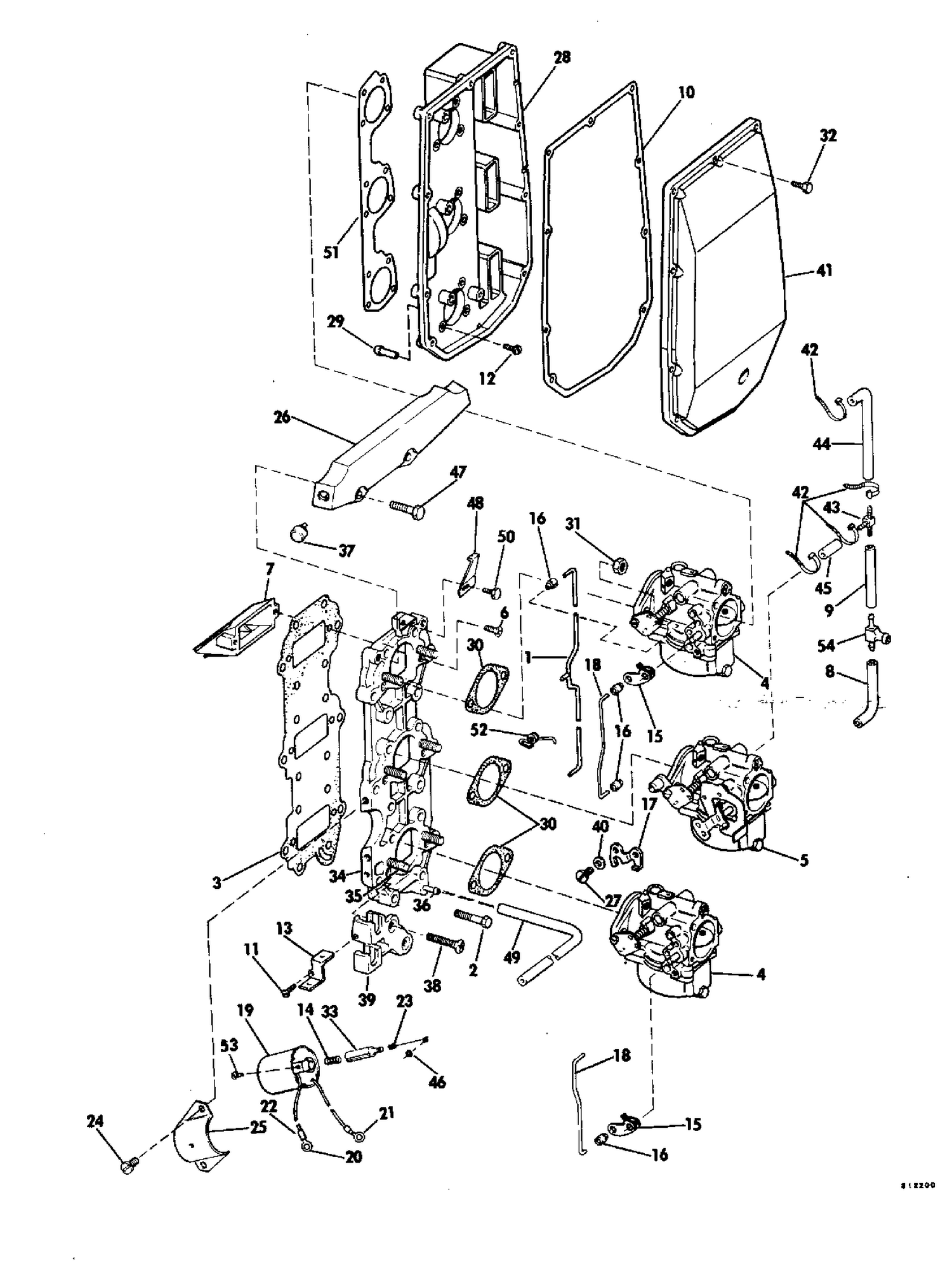

| Ref | Part Number | Description |
|---|
| 1 |
0432271 |
LINK & PIN, Middle arm This part replaces 0387338. |
| 2 |
0554306 |
SCREW, Cyl. to crankcase |
| 3 |
0326926 |
GASKET, Plat to manifold |
| 4 |
CARBURETOR |
ASSEMBLY, Upper and lower |
| 5 |
CARBURETOR |
ASSEMBLY, Middle |
| 6 |
0316116 |
SCREW |
| 7 |
0389731 |
LEAF PLATE ASSEMBLY This part replaces 0389553. |
| 8 |
HOSE, |
Tee to carburetor, lower, 3" length |
| 9 |
HOSE, |
Tee to tee 2-1/2" length |
| 10 |
0321794 |
GASKET, Air silencer cover |
| 11 |
0310626 |
SCREW, Retainer |
| 12 |
0327794 |
SCREW, Base to carburetor |
| 13 |
0320180 |
RETAINER, Trunnion |
| 14 |
0324397 |
SPRING, Plunger to solenoid |
| 15 |
0378984 |
ARM & SCREW |
| 16 |
0313329 |
LOCKWASHER, Carburetor link |
| 17 |
0321071 |
LEVER, Throttle adjustment |
| 18 |
0314310 |
LINK, Carburetor choke |
| 19 |
0581929 |
SOLENOID |
| 23 |
0314193 |
SPRING, Choke solenoid |
| 24 |
0319292 |
SCREW, Clamp This part replaces 0308762. |
| 25 |
0314327 |
CLAMP, Choke solenoid |
| 26 |
0339776 |
BRACKET, Engine cover This part replaces 0316647. |
| 28 |
0333009 |
BASE ASSEMBLY This part replaces 0321744. |
| 30 |
0325092 |
GASKET |
| 31 |
0316355 |
BUT, Carburetor mounting |
| 33 |
0324096 |
PLUNGER, Choke solenoid |
| 34 |
0389395 |
MANIFOLD, Intake |
| 37 |
0314021 |
BUMBER, Exhaust manifold |
| 38 |
0324315 |
SCREW, Anchor block |
| 39 |
0324316 |
ANCHOLR BLOCK, Trunnion |
| 41 |
0388264 |
COVER, Air silencer |
| 42 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 44 |
HOSE, |
Tee to carburetor, upper, 5" length |
| 45 |
HOSE, |
Tee to carburetor, middle, 2" length |
| 46 |
0307529 |
JOINT TORIQUE, galet vers contre-came |
| 47 |
0306418 |
VIS, ancrage |
| 48 |
0332682 |
TIMING POINTER This part replaces 0318328. |
| 49 |
HOSE, |
Air silencer to manifold |
| 50 |
0303212 |
VIS, collier & capot |
| 51 |
0333008 |
GASKET, Air silencer This part replaces 0321793. |
| 52 |
0314807 |
SPRING |
