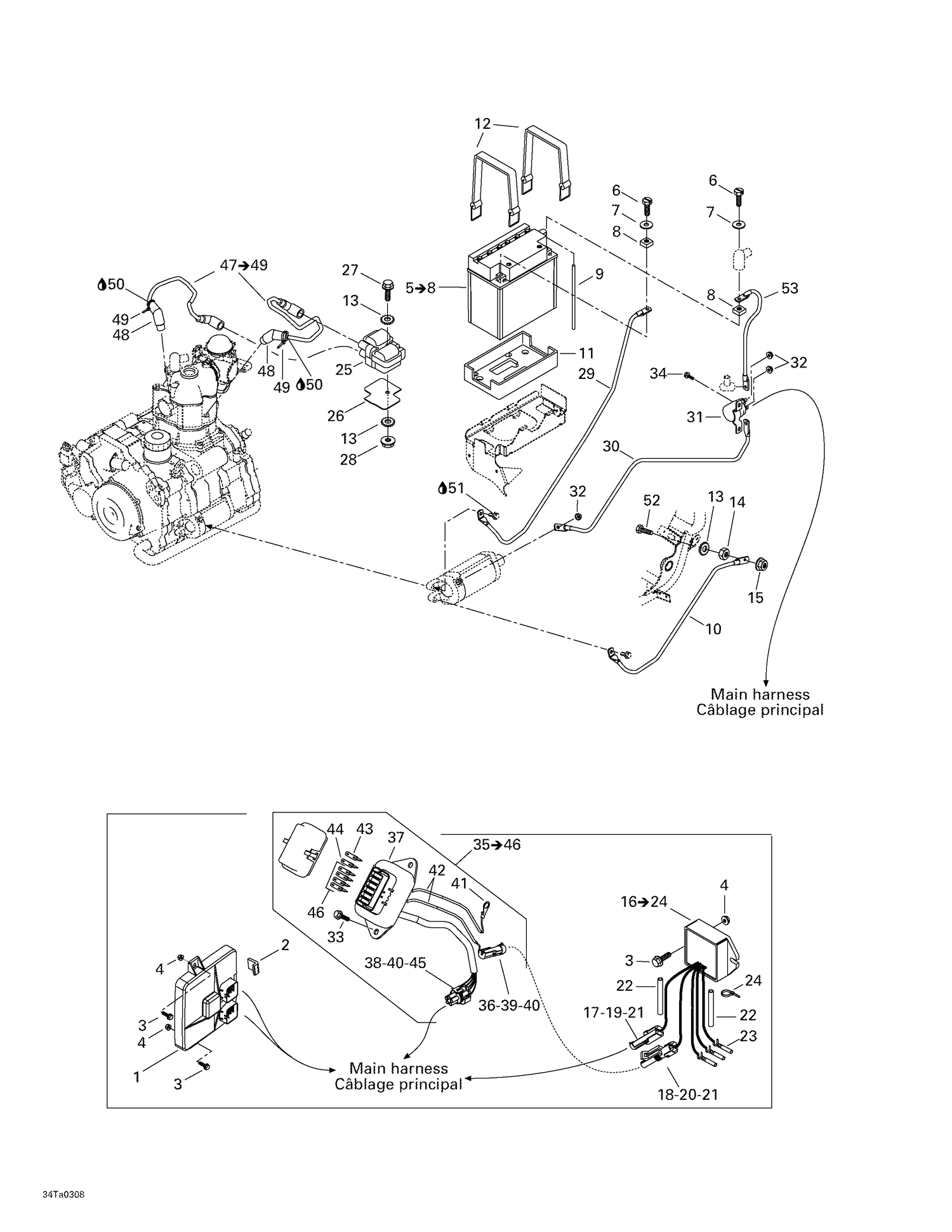

10- Battery And Electrical Accessories
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 710000375 | ELECTRONIC MODULE - Call your local BRP dealership |
| 2 | 278001166 | MODULE PROTECTOR - Call your local BRP dealership |
| 3 | 207662044 | Hex. Flange Screw M6 X 20 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 6 | 207161644 | Hex. Screw M6 X 16 This part replaces 211000045. |
| 7 | 211200018 | FLAT WASHER 6 MM - Call your local BRP dealership |
| 8 | 232061414 | Hex. Nut M6 This part replaces 211100022. |
| 9 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 10 | 710000022 | Battery Ground Cable |
| 11 | 278001746 | Lower Battery Pad |
| 12 | Not | Available As Spare Part - Rubber strap |
| 13 | 234461608 | External Serrated Lock Washer 6 mm |
| 14 | 232061414 | Hex. Nut M6 |
| 15 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 17 | 278000222 | Male Terminal |
| 18 | 278000223 | Female Terminal |
| 19 | 278000161 | Female Housing, 1 Circuit |
| 20 | 278000219 | CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership |
| 21 | 278000218 | Wire Seal |
| 22 | 409901300 | LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership |
| 23 | 278001661 | FEMALE TERMINAL - Call your local BRP dealership This part replaces 710000034. |
| 24 | 293750001 | Tie Wrap 94 mm |
| 25 | 278001546 | Ignition Coil |
| 26 | 710000073 | Insulator Pad |
| 27 | 207665044 | Hex. Flange Screw M6 X 50 |
| 28 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 29 | 710000211 | Engine Ground Cable |
| 30 | 710000136 | STARTER POSITIVE CABLE - Call your local BRP dealership |
| 31 | 515176011 | Starter Relay This part replaces 710000111. |
| 32 | 232561600 | Hex. Elastic Stop Nut M6 |
| 33 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 34 | 250000061 | Hex. Self-threaded Screw 1/4"-20 X 3/4" |
| 36 | 409004300 | Male Terminal |
| 37 | 715000177 | Fuse box |
| 38 | 409007300 | Female Terminal |
| 39 | 278000161 | Female Housing, 1 Circuit |
| 40 | 278000218 | Wire Seal |
| 41 | 278001392 | Open Barrel Terminal |
| 42 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 43 | 410917200 | Fuse, 30 Amperes |
| 44 | 409003900 | Fuse, 20 Amperes This part replaces 278001143. |
| 45 | 710000106 | Female Housing, 5 Circuit |
| 46 | 278000343 | Fuse, 15 Amperes |
| 48 | 420265248 | Spark Plug Connector This part replaces 710000041. |
| 49 | 293750001 | Tie Wrap 94 mm |
| 50 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 51 | 293800060 | Loctite 243, 10 ml |
| 52 | 207162044 | Hex. Screw M6 X 20 |
| 710000048 | Joint | De Fil 710000048 |
| 710000048 | Wire | Seal 710000048 |
