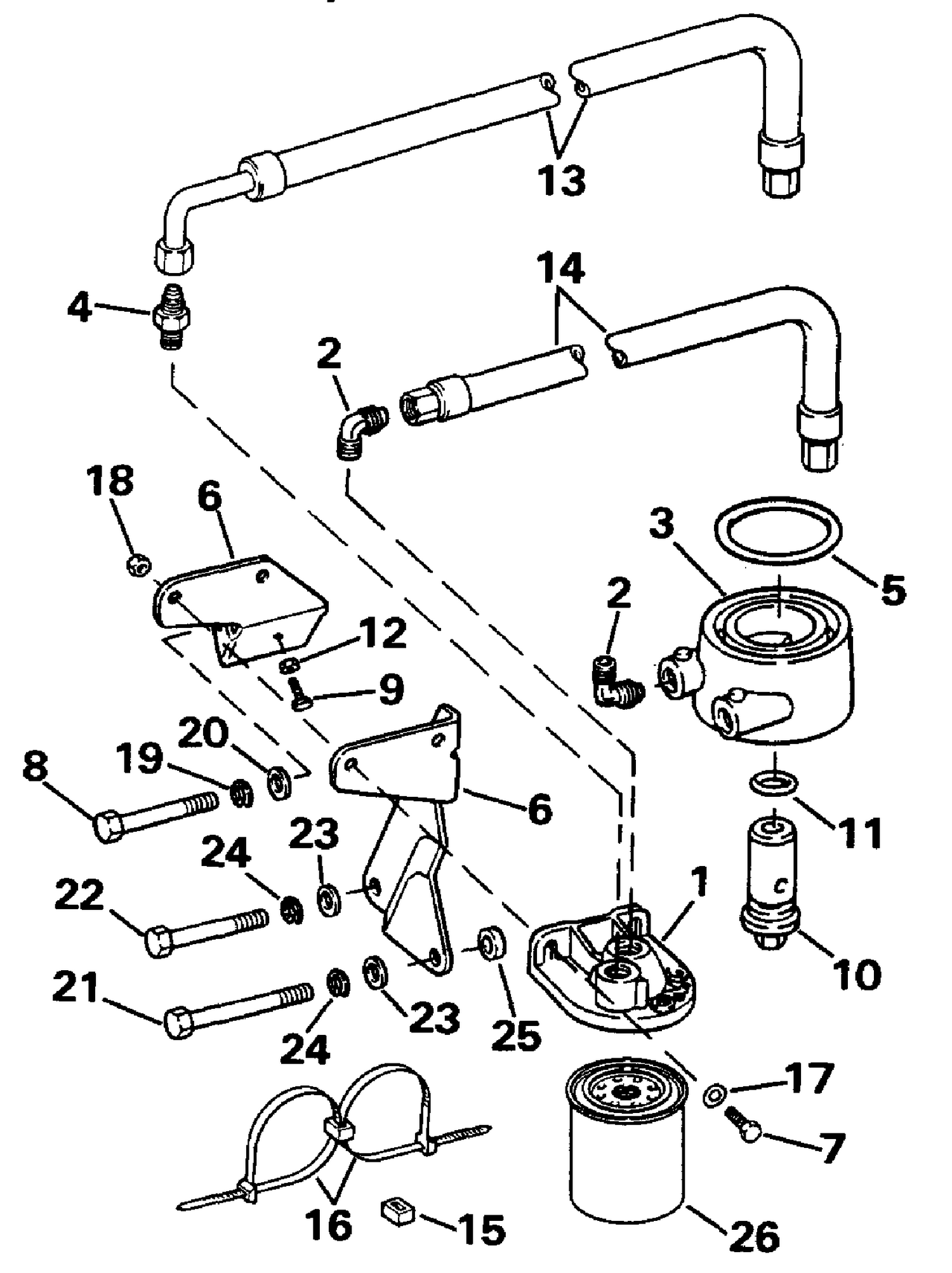

| Ref | Part Number | Description |
|---|
| 1 |
0174362 |
BASE ASSY |
| 2 |
0912854 |
FITTING |
| 3 |
0909491 |
ADAPTOR |
| 4 |
0912877 |
CONNECTOR, Adapter |
| 5 |
3852470 |
O-RING, Adapter to engine This part replaces 0909519. |
| 6 |
0174359 |
BRACKET |
| 6 |
0913375 |
BRACKET, to cylinder head |
| 7 |
0310896 |
SCREW |
| 8 |
0311390 |
BUSHING |
| 9 |
0300977 |
SCREW |
| 10 |
3853495 |
RETAINER, Adapter This part replaces 0909489. |
| 12 |
0328742 |
NUT This part replaces 0306338. |
| 13 |
0985549 |
HOSE, Adaptor to filter |
| 14 |
0985550 |
HOSE, Adaptor to filter |
| 15 |
0912860 |
CONNECTOR RING |
| 16 |
3852620 |
TIE STRAP, Oil lines This part replaces 0912861. |
| 19 |
0120177 |
L'WASHER, Alternator to brkt |
| 22 |
0311416 |
SCREW, Adapter to cylinder |
| 24 |
0120177 |
L'WASHER, Alternator to brkt |
| 25 |
0913374 |
SPACER |
