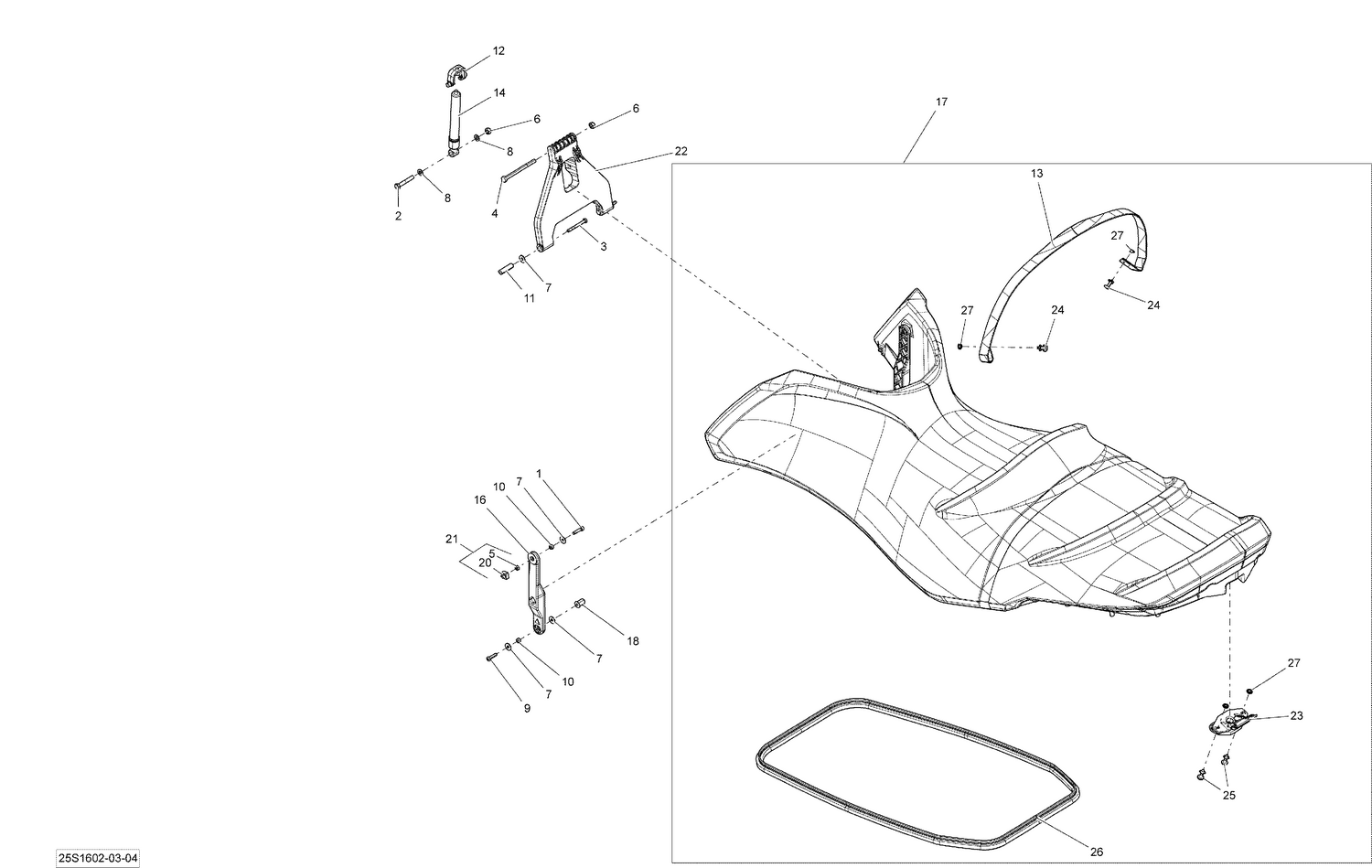

09- Seat
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205562560 | Socket Head Screw M6 X 25, Scotch Grip |
| 2 | 207085060 | HEX. SCREW M8 X 50 - Call your local BRP dealership |
| 3 | 207265560 | Hex. Screw M6 X 55, Scotch Grip |
| 4 | 230080060 | HEX. SCREW M8 X 100 - Call your local BRP dealership |
| 5 | 232561200 | Brass Elastic Stop Nut M6 |
| 6 | 232581200 | Hex. Elastic Nut M8 Brass |
| 7 | 234062600 | Flat Washer M6, Stainless |
| 8 | 234081600 | Stainless, Flat Washer 8 mm |
| 9 | 250000328 | Torx Screw M6 X 25, Scotch Grip |
| 10 | 269001588 | Spacer |
| 11 | 269001589 | Spacer |
| 12 | 269002077 | End Fitting |
| 13 | 269002536 | Seat Strap |
| 14 | 269002895 | Shock |
| 18 | 250100150 | Expansion Nut M6 X 1 |
| 20 | 269500252 | M6 Nut Housing Ass'y |
| 21 | 269502408 | Housing Nut M6 This part replaces 269501166. |
| 22 | 269502120 | Center Arm |
| 23 | 269700116 | Latch Ass'y |
| 24 | 293150067 | Rivet |
| 25 | 293150151 | Rivet 1/4" |
| 26 | 219704366 | Was 293200062 Seal |
