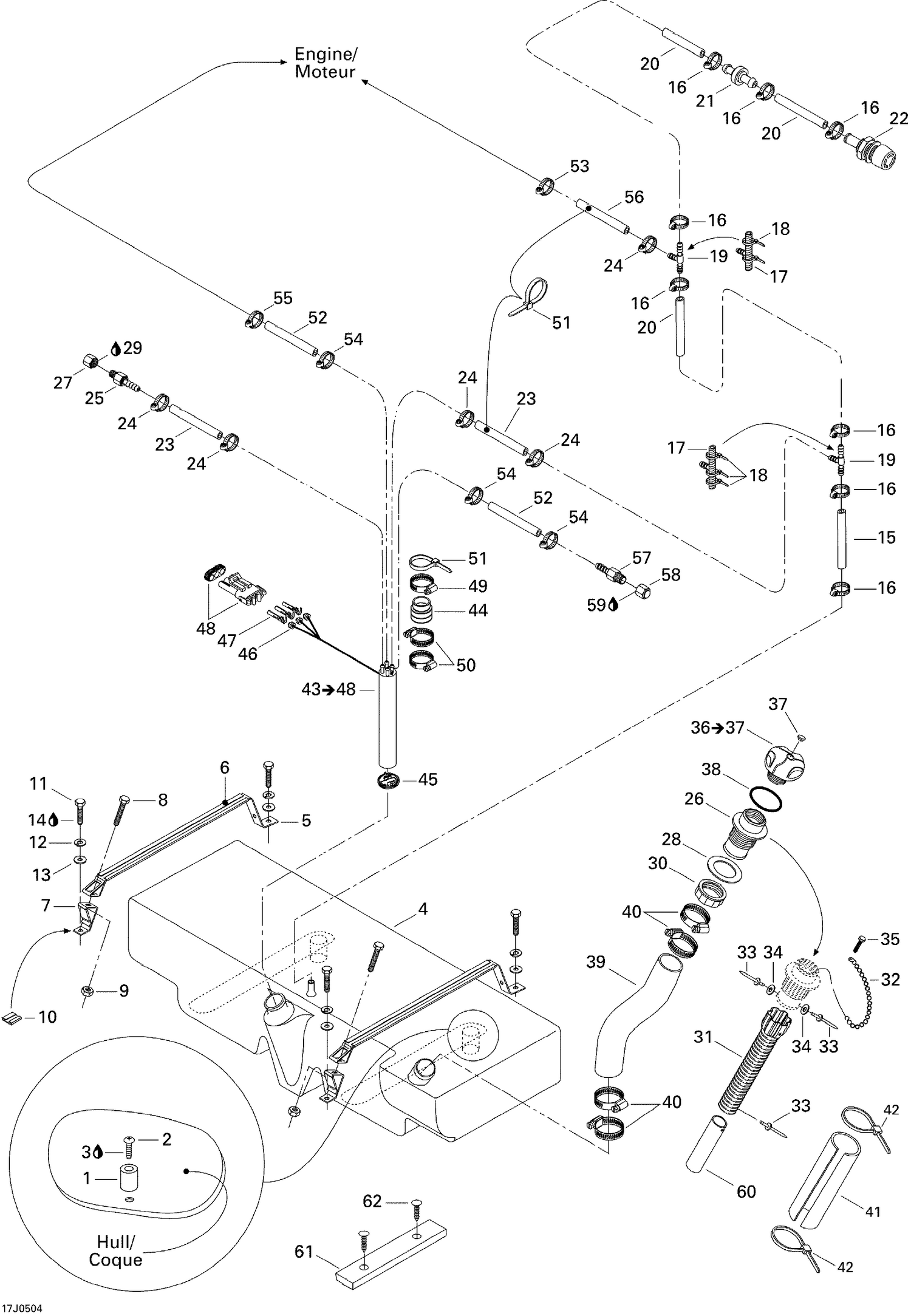

02- Fuel System

02- Fuel System

Parts (59)

RefPart NumberDescription
1 204560039 Rubber Bumper
2 208653560 Phillips Screw M5 X 35
3 293800005 Loctite 271, 10 ml
4 204560073 Fuel Tank, Plastic
5 204560189 Fuel Tank Strap
6 204560037 Protector Pad
7 275500252 TANK BRACKET - Call your local BRP dealership
8 207185560 HEX. SCREW M8 X 55 - Call your local BRP dealership
9 232581600 Hex. Elastic Nut M8
10 204560027 Protecteur Pad
11 207183060 Hex. Screw M8 X 30
12 234181601 Lock Washer 8 mm, Stainless
13 234082600 Flat Washer 8 mm, Stainless
14 293800005 Loctite 271, 10 ml
15 204560358 HOSE 16 MM - Call your local BRP dealership This part replaces 275500205.
16 293650069 NORMA CLAMP - Call your local BRP dealership
17 Not Available As Spare Part - Slit Conduit
18 414115200 Tie-Rap 180 mm
19 204560038 T-Fitting
20 204560358 HOSE 16 MM - Call your local BRP dealership This part replaces 275500205.
21 204560101 VENT FUEL SURGE PROTECTOR - Call your local BRP dealership
22 275500206 VENT BOAT - Call your local BRP dealership
23 204560178 HOSE 1/4 - Call your local BRP dealership
24 293650121 NORMA CLAMP - Call your local BRP dealership
25 204560265 COUPLER - Call your local BRP dealership
26 275500247 Filler Neck
27 204560263 Pipe Cap
28 293250029 Gasket
29 219704454 Was 293800013 Loctite 56765
30 211100012 Filler Neck Nut, Fuel
31 275500757 FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.
32 275500015 Oil Cap Chain
33 293150057 Rivet 1/8”
34 234032600 Flat Washer M3, Stainless
35 241140060 Screw K40 X 10
37 293000034 Black, Snap Cap
38 293250017 Gasket
39 219700374 NECK FILLER HOSE - Call your local BRP dealership
40 293650081 Norma Clamp
41 204130046 Neoprene Cover
42 293750008 Tie Wrap 368 mm
44 204560066 Fuel Tube Adaptor
45 275500397 FUEL FILTER - Call your local BRP dealership
46 278000218 Wire Seal
47 278000223 Female Terminal
48 278000273 Male Housing, 3 Circuits
49 293650174 NORMA CLAMP - Call your local BRP dealership
50 293650081 Norma Clamp
51 414115200 Tie-Rap 180 mm
52 204560177 Hose 5/16”, Meter
53 293650121 NORMA CLAMP - Call your local BRP dealership
54 293650070 NORMA CLAMP - Call your local BRP dealership
55 293650070 NORMA CLAMP - Call your local BRP dealership
56 204560178 HOSE 1/4 - Call your local BRP dealership
57 204560264 Hose Fitting
58 204560263 Pipe Cap
59 219704454 Was 293800013 Loctite 56765
60 Not Available As Spare Part - Aluminum Tube
61 204060701 Rubber Pad
