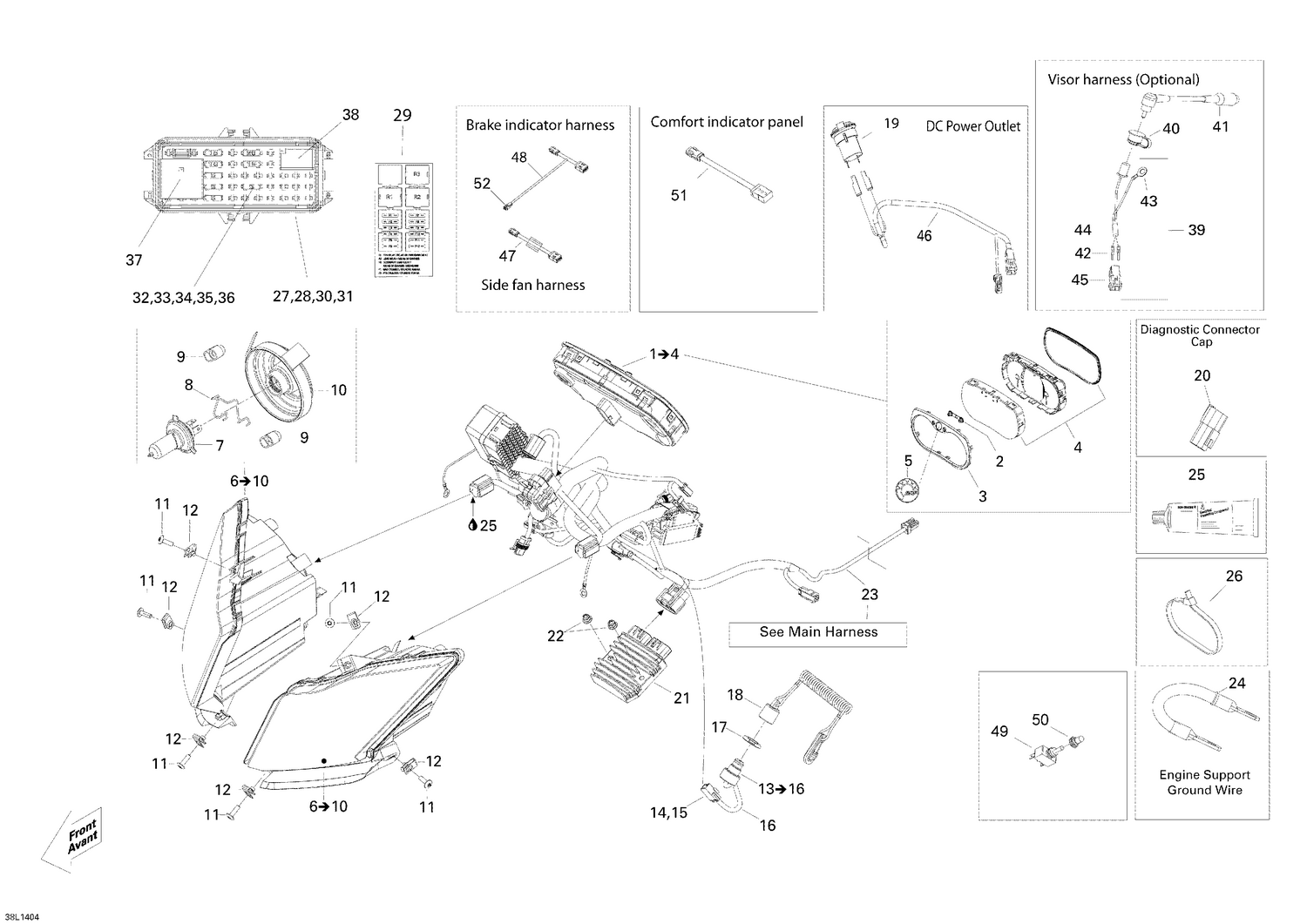

| Ref | Part Number | Description |
|---|
| 1 |
515177525 |
Speedometer Ass'y |
| 2 |
415129355 |
Speedometer Button |
| 3 |
415129348 |
Gauge Ring |
| 4 |
415129349 |
Lens And Seal |
| 5 |
516006224 |
BRP Logo, 20MM x 2MM This part replaces 219902677. |
| 6 |
517304194 |
RH Headlamp |
| 6 |
517304195 |
LH Headlamp |
| 7 |
515176274 |
Halogen Bulb, 60/55 W, 12 V |
| 8 |
Not |
Available As Spare Part - Bulb Holder |
| 9 |
515176498 |
Cap |
| 10 |
219800280 |
Rubber Cap Protector This part replaces 515176499. |
| 11 |
250000722 |
Torx Truss Screw M6 x 20 This part replaces 250000128. |
| 12 |
250100198 |
Panel Nut , M6 X 1.0 This part replaces 250100113. |
| 13 |
515177249 |
Dess Switch |
| 14 |
515175232 |
Male Terminal |
| 15 |
515175494 |
Male Housing, 3 Circuits |
| 16 |
409902000 |
Tubing 12 mm |
| 17 |
278002963 |
Safety Nut (DESS Switch) |
| 18 |
515178284 |
Dess. This part replaces 515177057. |
| 19 |
710001248 |
Power Outlet-DC |
| 20 |
515176234 |
FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership |
| 21 |
710010539 |
Voltage Regulator This part replaces 515177325. |
| 22 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 23 |
515177643 |
Main Harness Alpine |
| 24 |
515176883 |
Ground Wire (110mm) |
| 25 |
293550004 |
Dielectric Grease |
| 26 |
293750001 |
Tie-Rap 94 mm |
| 26 |
293750002 |
Tie-Rap 142 mm |
| 26 |
293750008 |
Tie-Rap 368 mm |
| 26 |
414115200 |
Tie-Rap 180 mm |
| 27 |
710000781 |
Fuse Puller Tool |
| 28 |
710001026 |
Fuse Box Cover |
| 29 |
516004919 |
FUSE DECAL 1200 - Call your local BRP dealership |
| 30 |
278002172 |
Foam |
| 31 |
415129856 |
Fuse Box Kit This part replaces 710000660. |
| 32 |
710000742 |
Little Fuse, 5 Ampere |
| 33 |
710000743 |
Fuse 7,5A |
| 34 |
710000744 |
Little Fuse, 10 Ampere |
| 35 |
710000745 |
Little Fuse, 15 Ampere |
| 36 |
710000747 |
Little Fuse, 30 Amperes |
| 37 |
515176775 |
Relay 50 A (bigger) |
| 38 |
515176774 |
Relay, 30 AMP |
| 39 |
515177837 |
Power Outlet Harness This part replaces 515177187. |
| 40 |
572103300 |
Cap |
| 41 |
515175851 |
Extension |
| 42 |
515175232 |
Male terminal |
| 43 |
515175172 |
OPEN BARREL - Call your local BRP dealership |
| 44 |
515175332 |
Vinyl tubing |
| 45 |
515175654 |
Male terminal housing |
| 46 |
515177188 |
Power Outlet Harness |
| 47 |
515177071 |
Harness side fan |
| 48 |
515177072 |
Harness brake indicator |
| 49 |
410110700 |
Switch |
| 50 |
515175281 |
Switch cover |
| 51 |
515177377 |
COMFORT INDICATOR PANEL - Call your local BRP dealership |
