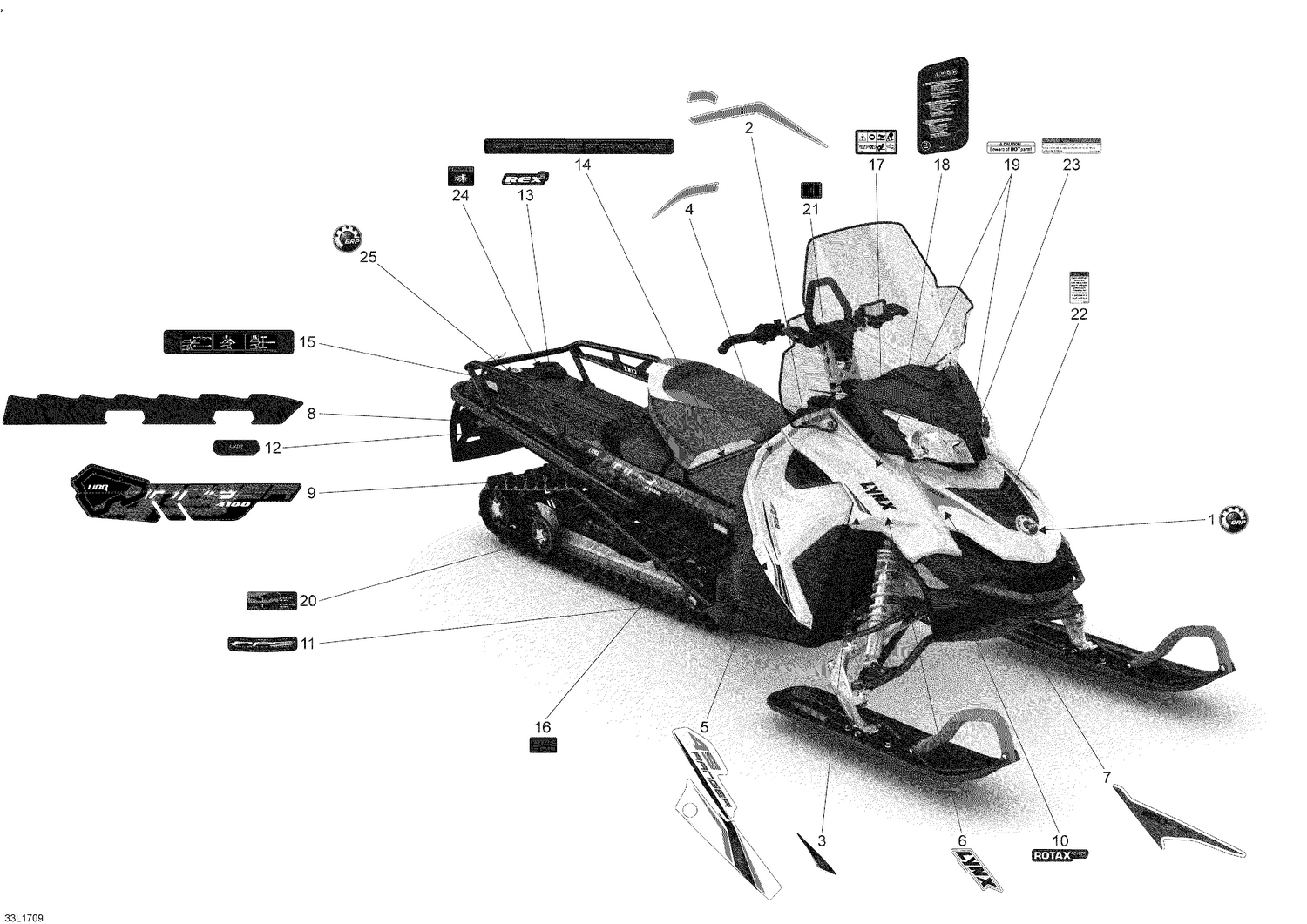

09- Decals 900 ACE
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 516008739 | Logo 68mm "BRP" This part replaces 516006888. |
| 2 | 516007095 | LH Upper Side Panel |
| 2 | 516007096 | RH Upper Side Panel |
| 3 | 516006876 | LH Upper Side Panel |
| 3 | 516006877 | RH Upper Side Panel |
| 4 | 516007097 | LH Side Panel Decal |
| 4 | 516007098 | RH Side Panel Decal |
| 5 | 516006727 | LH Side Panel Decal |
| 5 | 516006728 | RH Side Panel Decal |
| 6 | 516006334 | Upper Side Panel Decal |
| 7 | 516007109 | LH Hood Decal |
| 7 | 516007110 | RH Hood Decal |
| 8 | 516007103 | LH Top Tunnel Decal |
| 8 | 516007104 | RH Top Tunnel Decal |
| 9 | 516007100 | LH Top Tunnel Decal |
| 9 | 516007101 | RH Top Tunnel Decal |
| 10 | 516006331 | Rotax Power Decal |
| 11 | 516006805 | PPS2 Decal |
| 12 | 516006485 | Q-Link Decal |
| 13 | 516007534 | REX II Platform Decal |
| 14 | 516007099 | A-Force Frame Decal |
| 15 | 516004757 | Warining Label |
| 16 | 5447012 | Oil Checking Label |
| 17 | 516003919 | Warning Decal |
| 18 | 516004607 | Label EN/FI/SWE |
| 19 | 516006903 | Hot Parts Decal |
| 20 | 516007589 | Track Tension Decal |
| 21 | 516006361 | Cover Decal |
| 23 | 516006900 | Security Label, Belt Guard |
| 24 | 516007584 | Warning Decal |
| 25 | 516008738 | Logo 48mm "BRP" This part replaces 516006887. |
