08- Front Arm, Rear Suspension

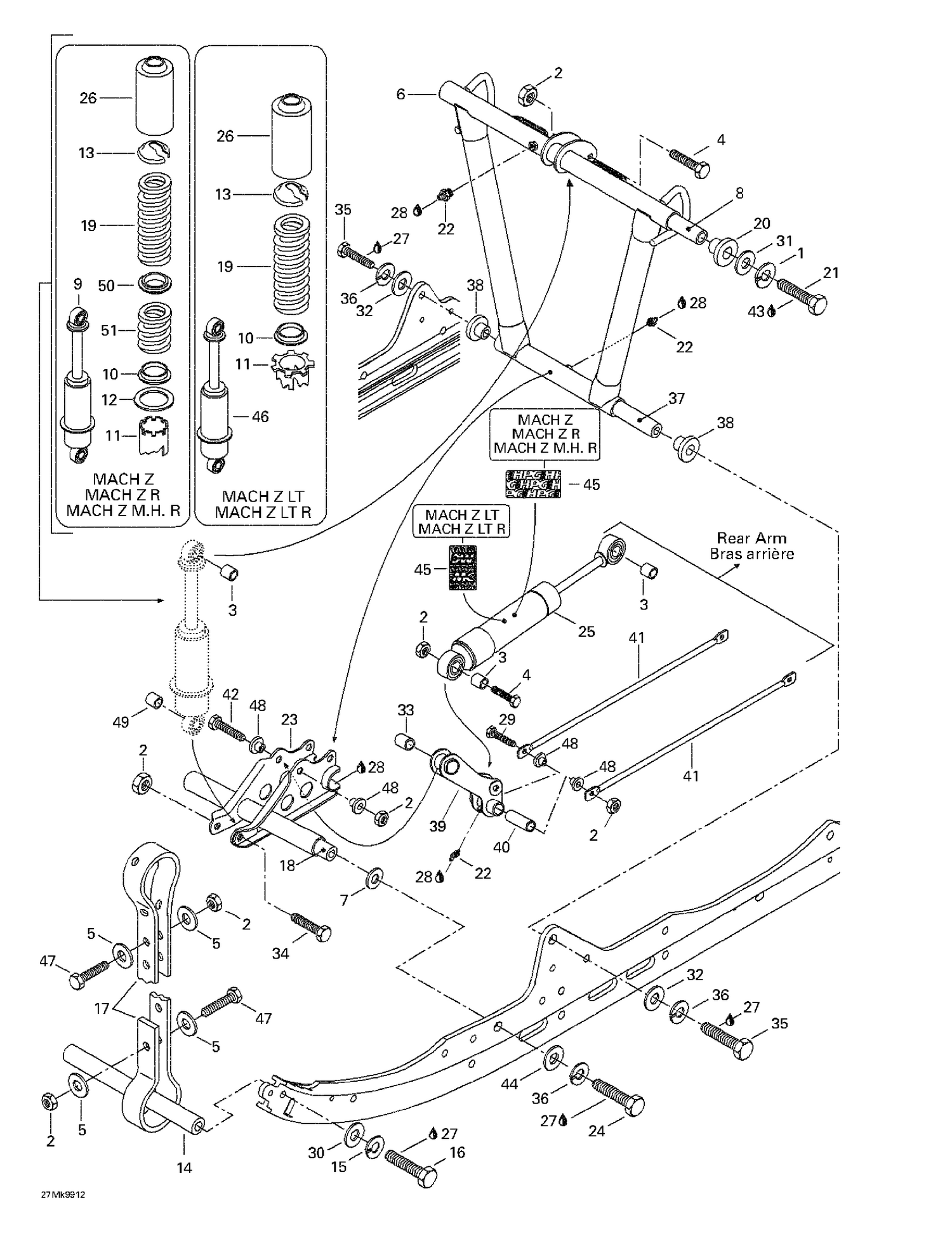

08- Front Arm, Rear Suspension

Parts (34)

RefPart NumberDescription
1 234101601 Helicoidal Lock Washer M10
2 232581414 Hex. Elastic Stop Nut M8
4 207084044 Hex. Screw M8 X 40 This part replaces 222084065.
5 517078700 WASHER - Call your local BRP dealership
6 503171100 Welded Front Arm
7 503175400 Hardened Washer
8 503190387 SHAFT - Call your local BRP dealership This part replaces 503188938.
13 706200881 Spring Stopper This part replaces 503140600.
14 503151600 Axle
15 234181401 Lock Washer 8 mm This part replaces 224781140.
16 207183044 Hex. Screw M8 X 30 This part replaces 222083065.
17 570069300 Stopper Strap
18 503174900 Lower Axle
20 503189324 Bushing This part replaces 503188939.
21 207006044 HEX. SCREW M10 X 60 - Call your local BRP dealership
22 408200700 Grease Fitting
23 503188976 Welded Shock Support
24 222024065 Hex. Screw M12 x 40
26 503193663 Protector This part replaces 503188930.
27 293800005 Loctite 271, 10 ml
28 219700417 SYNTHETIC GREASE, 400 G - Call your local BRP dealership
30 234081410 Flat Washer 8 mm This part replaces 224081171.
31 234001410 Flat Washer 10 mm This part replaces 224001211.
32 234021410 Flat Washer 12 mm This part replaces 224021251.
34 207085544 Hex. Screw M8 X 55 This part replaces 222085565.
35 207026044 HEX. SCREW M12 X 60 - Call your local BRP dealership
36 224721218 Lock Washer 12 mm
37 503182000 Shaft
38 503188940 Cushion
42 207085044 Hex. Screw M8 X 50
43 293800060 Loctite 243, 10 ml This part replaces 293800015.
44 234021410 Flat Washer 12 mm This part replaces 224021251.
47 207182544 Hex. Screw M8 X 25 This part replaces 222082565.
49 414917900 Cushion
