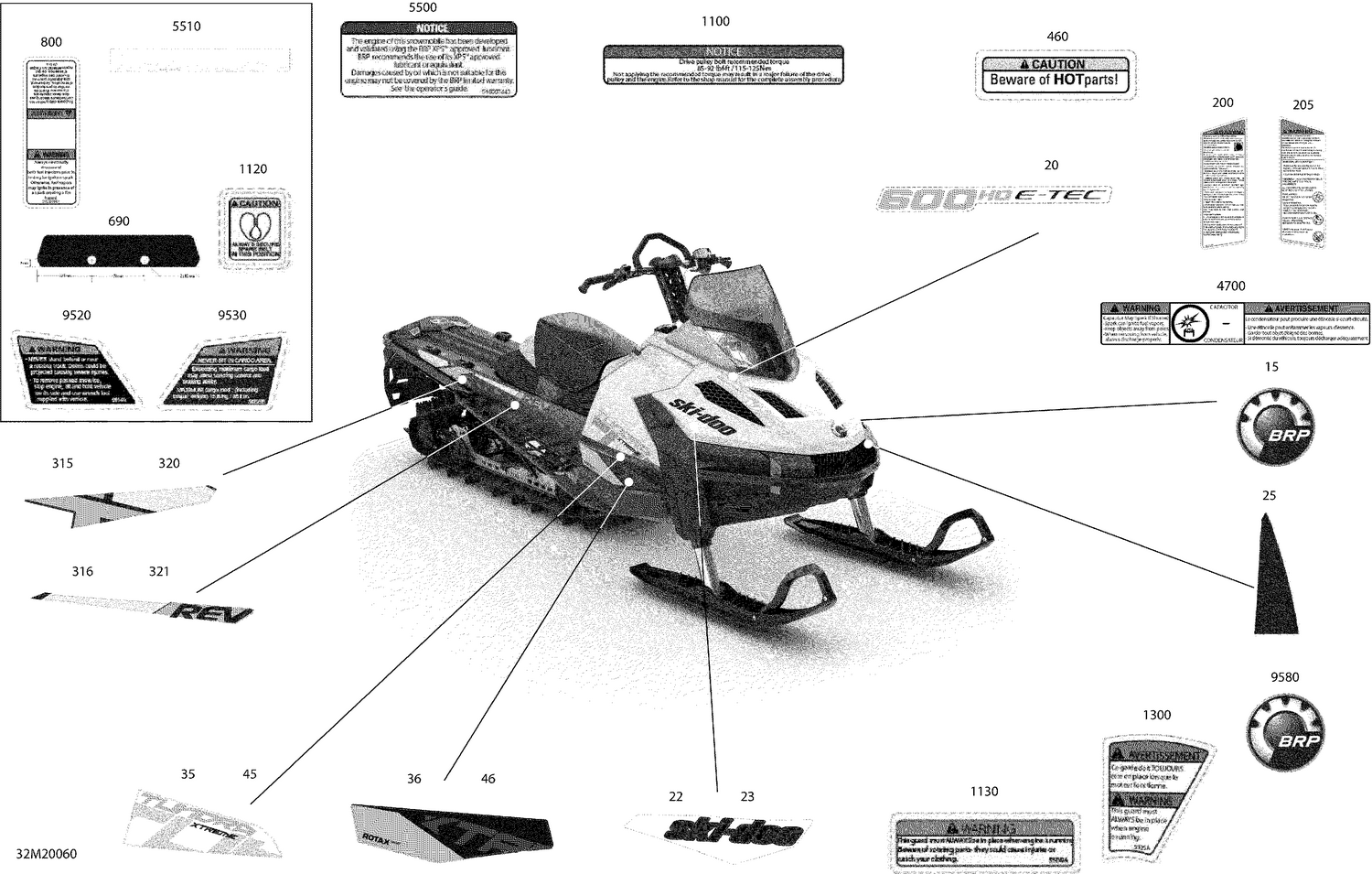

09- Body - Decals - XTREME
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 516008739 | BRP Logo 68mm |
| 20 | 516009754 | Hood Decal "600HO E-TEC" |
| 22 | 516009763 | RH Hood Decal "SKI-DOO" |
| 23 | 516009764 | LH Hood Decal "SKI-DOO" |
| 25 | 516006382 | Hood Mask |
| 35 | 516009755 | RH Side Decal " TUNDRA XTREME" |
| 36 | 516009756 | RH Hull Decal ROTAX POWER XTR |
| 45 | 516009757 | LH Side Decal "TUNDRA XTREME" |
| 46 | 516009758 | LH Hull Decal ROTAX POWER XTR |
| 200 | 516009180 | Warning Decal, Security |
| 205 | 516009522 | RH Warning Security Decal |
| 315 | 516009759 | RH frame Decal |
| 316 | 516009761 | RH Front Frame Decal "REV" |
| 320 | 516009760 | LH Frame Decal |
| 321 | 516009762 | LH Front Frame Decal "REV" |
| 460 | 516005280 | Caution Decal Hot Parts |
| 690 | 516007594 | Frame Decal |
| 800 | 516007661 | Warning Decal, Injectors |
| 1100 | 516005503 | Decal English |
| 1120 | 516007493 | Belt Gard Decal |
| 1130 | 516005509 | Safety Belt Guard Decal |
| 1300 | 516005525 | Warning Decal |
| 4700 | 516008593 | Capacitor Decal |
| 5500 | 516008439 | Oil Warning Decal This part replaces 516007443. |
| 5510 | 516004648 | Protection Decal / Lexan |
| 9520 | 516006914 | Security Label, XS |
| 9530 | 516005058 | Warning Decal, Safety |
