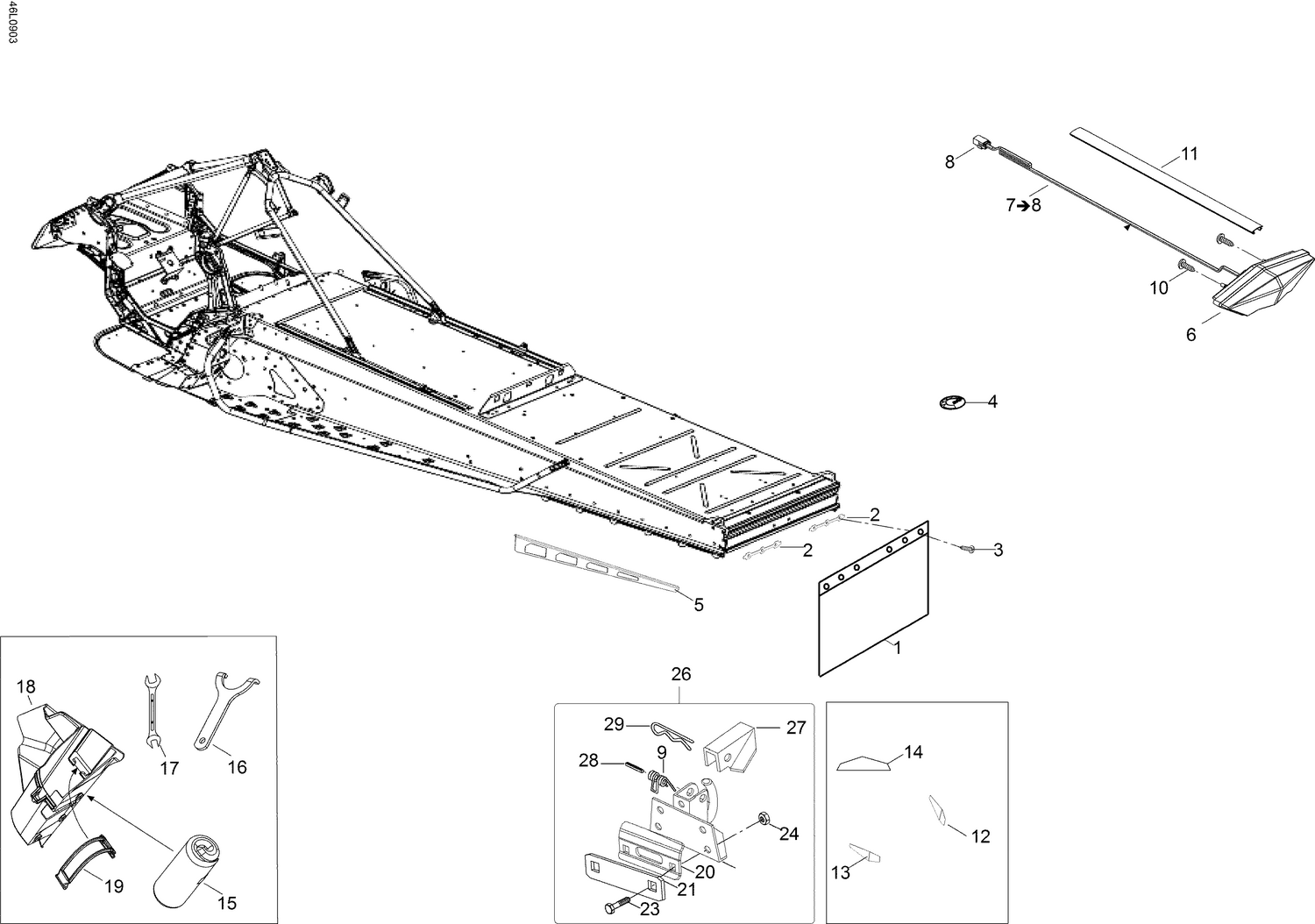

09- Utilities
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520000857 | SNOW GUARD - Call your local BRP dealership |
| 2 | 520000847 | THREADED PLATE - Call your local BRP dealership |
| 3 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
| 4 | 516008738 | Logo 48mm "BRP" This part replaces 219902468. |
| 5 | 520000693 | RH Protector |
| 5 | 520000694 | LH Protector |
| 6 | 520000692 | Rear light |
| 7 | 515176746 | HARNESS - Call your local BRP dealership |
| 8 | 515175494 | Male Housing, 3 Circuits |
| 9 | 545693 | SPRING - Call your local BRP dealership |
| 10 | 40611 | Screw |
| 11 | 520000829 | Trim This part replaces 520000824. |
| 12 | 520001600 | Yellow RH Reflector This part replaces 520000843. |
| 13 | 520001601 | Yellow LH Reflector This part replaces 520000844. |
| 14 | 705002423 | Reflector |
| 14 | 705003412 | Reflector |
| 15 | 529000065 | Tool Kit This part replaces 520000841. |
| 16 | 529035582 | ADJUSTMENT WRENCH - Call your local BRP dealership |
| 17 | 34017 | Wrench |
| 18 | 520000720 | TOOL KIT RACK - Call your local BRP dealership |
| 19 | 520000528 | Fastening rubber |
| 20 | 520000727 | Pressure plate |
| 21 | 520000728 | Pressure plate |
| 23 | 207784044 | Screw |
| 24 | 233281414 | Hex. Flange Elastic Nut M8 |
| 26 | 5344156 | HITCH ASS'Y - Call your local BRP dealership |
| 27 | 5440767 | Pin-retainer |
| 28 | 41012 | Spring pin |
