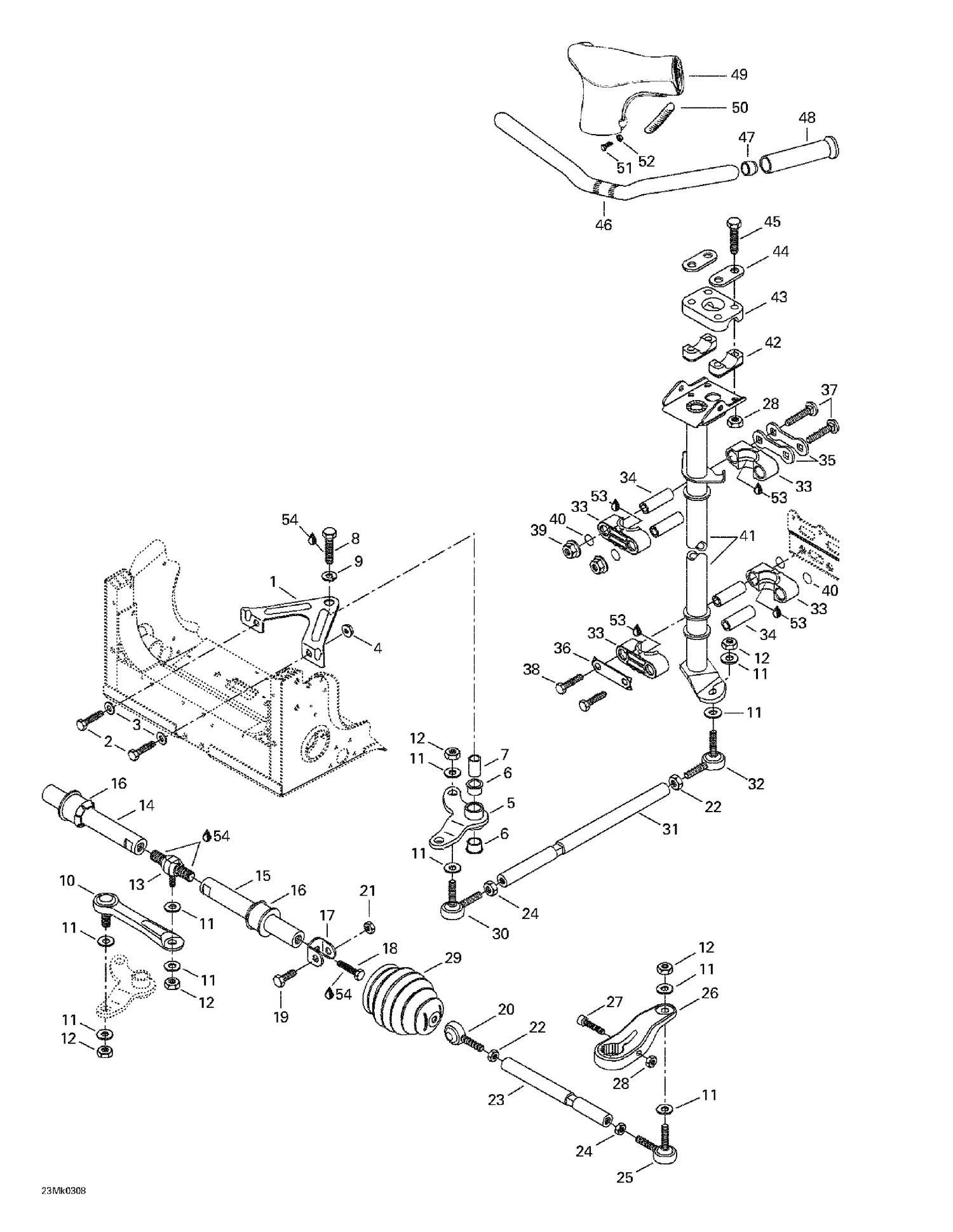

07- Steering System
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506138400 | PIVOT SUPPORT - Call your local BRP dealership |
| 2 | 207066044 | Hex. Screw M6 X 60 |
| 3 | 224061121 | Flat Washer |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 5 | 506129500 | Pivot Arm |
| 6 | 415041100 | CUSHION - Call your local BRP dealership |
| 7 | 506131500 | Pivot |
| 8 | 207006044 | HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 9 | 234101411 | Lock Washer Helical M10 |
| 10 | 415059800 | Ball Stud Lever |
| 11 | 503175800 | Washer |
| 12 | 232501416 | Elastic Flange Nut M10 |
| 13 | 415053300 | Ball Joint (Double) |
| 14 | 506129402 | Sliding Bar (Long) |
| 15 | 506129400 | Sliding Bar (Short) |
| 16 | 572108500 | Cushion |
| 17 | 506138300 | Bracket |
| 18 | 207102544 | Hex. Screw M10 X 25 |
| 19 | 207084544 | Hex. Screw M8 X 45 |
| 20 | 506151497 | LH Ball Joint |
| 21 | 232581414 | Hex. Elastic Stop Nut M8 |
| 22 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 23 | 506129600 | Tie-Rod |
| 24 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 25 | 506151491 | Ball Joint |
| 26 | 506151385 | RH Steering Arm |
| 27 | 205083544 | SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership |
| 28 | 232581414 | Hex. Elastic Stop Nut M8 |
| 29 | 570054100 | Tie-Rod Cap |
| 30 | 506151492 | RH BALL JOINT - Call your local BRP dealership |
| 31 | 506151394 | Tie-Rod |
| 32 | 506151845 | LH JOINT BALL - Call your local BRP dealership This part replaces 506151495. |
| 33 | 506150400 | Housing Half |
| 34 | 506150500 | Housing Bushing |
| 35 | 506150600 | Stopper Plate |
| 36 | 506151332 | Lock Tab |
| 37 | 207787044 | Carriage Bolt M8 X 70 |
| 38 | 207085544 | Hex. Screw M8 X 55 |
| 39 | 233281414 | Hex. Flange Elastic Nut M8 |
| 40 | 506151140 | O-RING - Call your local BRP dealership |
| 41 | 506151169 | Main Tube |
| 42 | 709400919 | Steering Support This part replaces 506151622. |
| 43 | 277000142 | STEERING CLAMP - Call your local BRP dealership |
| 44 | 709400509 | Stiffner This part replaces 506151196. |
| 45 | 207086044 | HEX. SCREW M8 X 60 - Call your local BRP dealership |
| 46 | 506142000 | Handlebar |
| 47 | 572081900 | HANDLEBAR END - Call your local BRP dealership |
| 48 | 506151530 | RH Grip 6-1/2" This part replaces 572100500. |
| 49 | 506151182 | Steering Padding |
| 50 | 572106200 | KEYWAY - Call your local BRP dealership |
| 51 | 208652044 | Phillips Screw M5 X 20 |
| 52 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 53 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 506151386 | Bras | De Direction GA 506151386 |
| 506151386 | LH | Steering Arm 506151386 |
