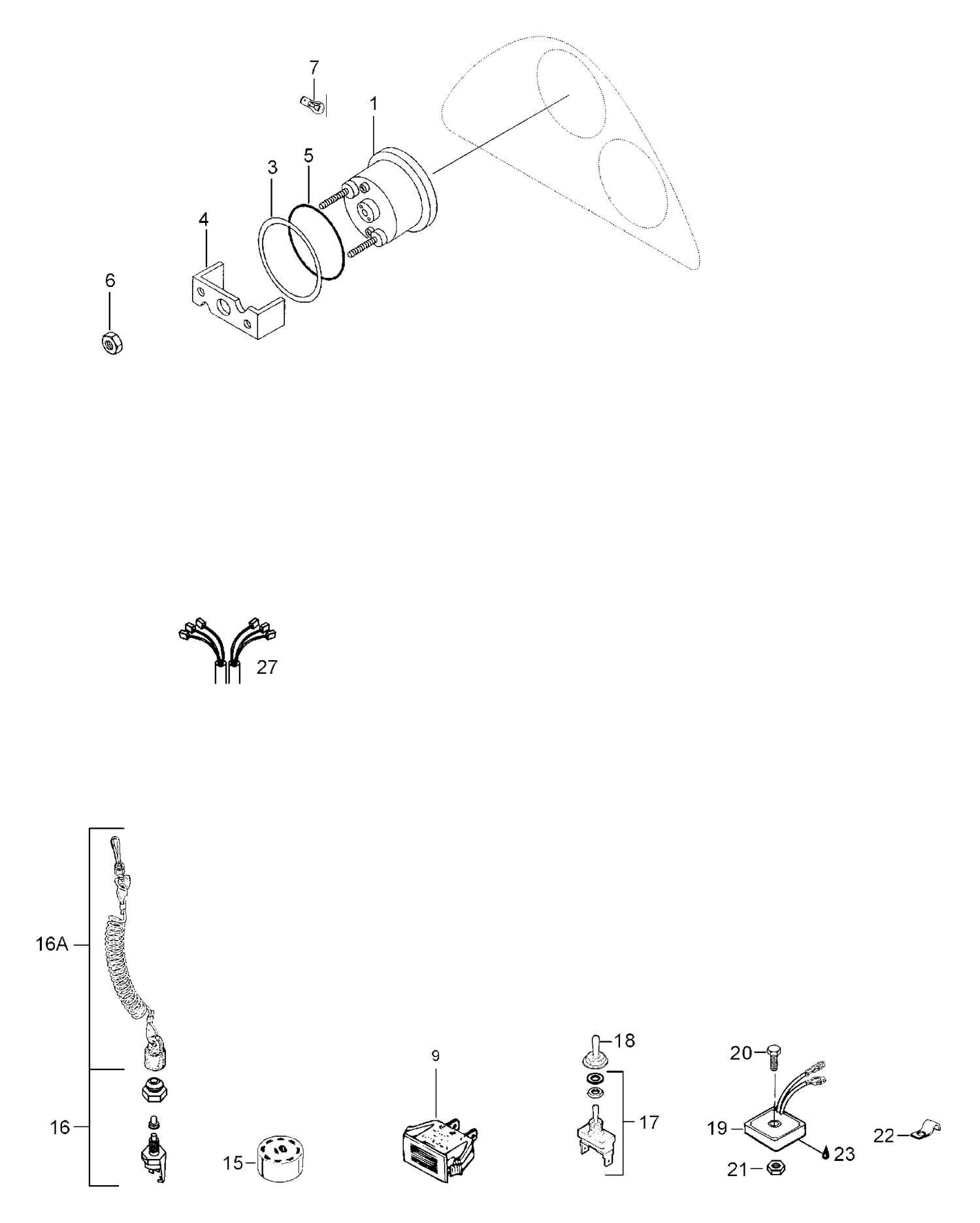

10- Electric
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 415096500 | Tachometer white |
| 3 | 517258500 | Washer |
| 4 | 414806500 | Holder |
| 5 | 414807100 | O-ring |
| 6 | 33009 | Nut elastic M6 |
| 7 | 410504200 | INSTRUMENTATION BULB - Call your local BRP dealership |
| 9 | 410109700 | Lamp-pilot |
| 15 | 572150700 | FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership |
| 16A | 4299163 | Switch cap assy |
| 17 | 410110700 | Switch |
| 18 | 515175281 | Rubber cover for switch This part replaces 570013900. |
| 19 | 5441403 | Regulator assy |
| 20 | 40003 | Screw M6x35 |
| 21 | 33010 | Lock Nut M6 (1=10Pcs) |
| 22 | 414227300 | Clip |
| 23 | 413706400 | Litium grease |
