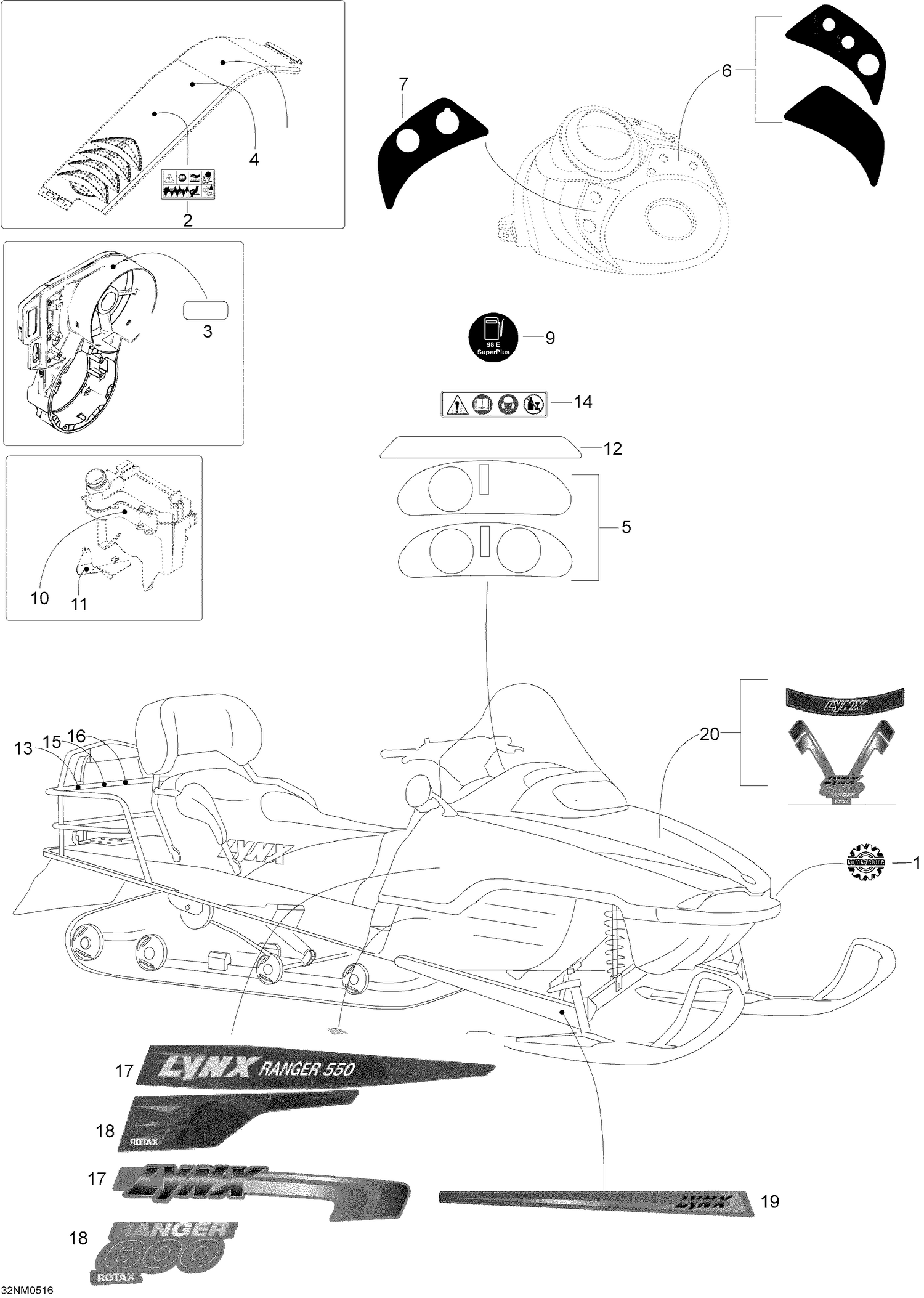

09- Decals
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 516008738 | Logo 48mm "BRP" This part replaces 516002487. |
| 2 | 5447014 | Pulley decal |
| 4 | 5447012 | Oil check decal |
| 8 | 415064400 | R.H. Reflector |
| 8 | 415064401 | L.H. Reflector |
| 9 | 5447020 | Fuel label |
| 10 | 605449628 | Label, oil level |
| 11 | 605449565 | Instruction decal |
| 12 | 5346800 | Instruction decal |
| 13 | 5447930 | Instruction decal |
| 14 | 5447124 | Warning label |
| 15 | 605448799 | PULLING BAR DECAL - Call your local BRP dealership |
| 16 | 605448801 | Warning label |
