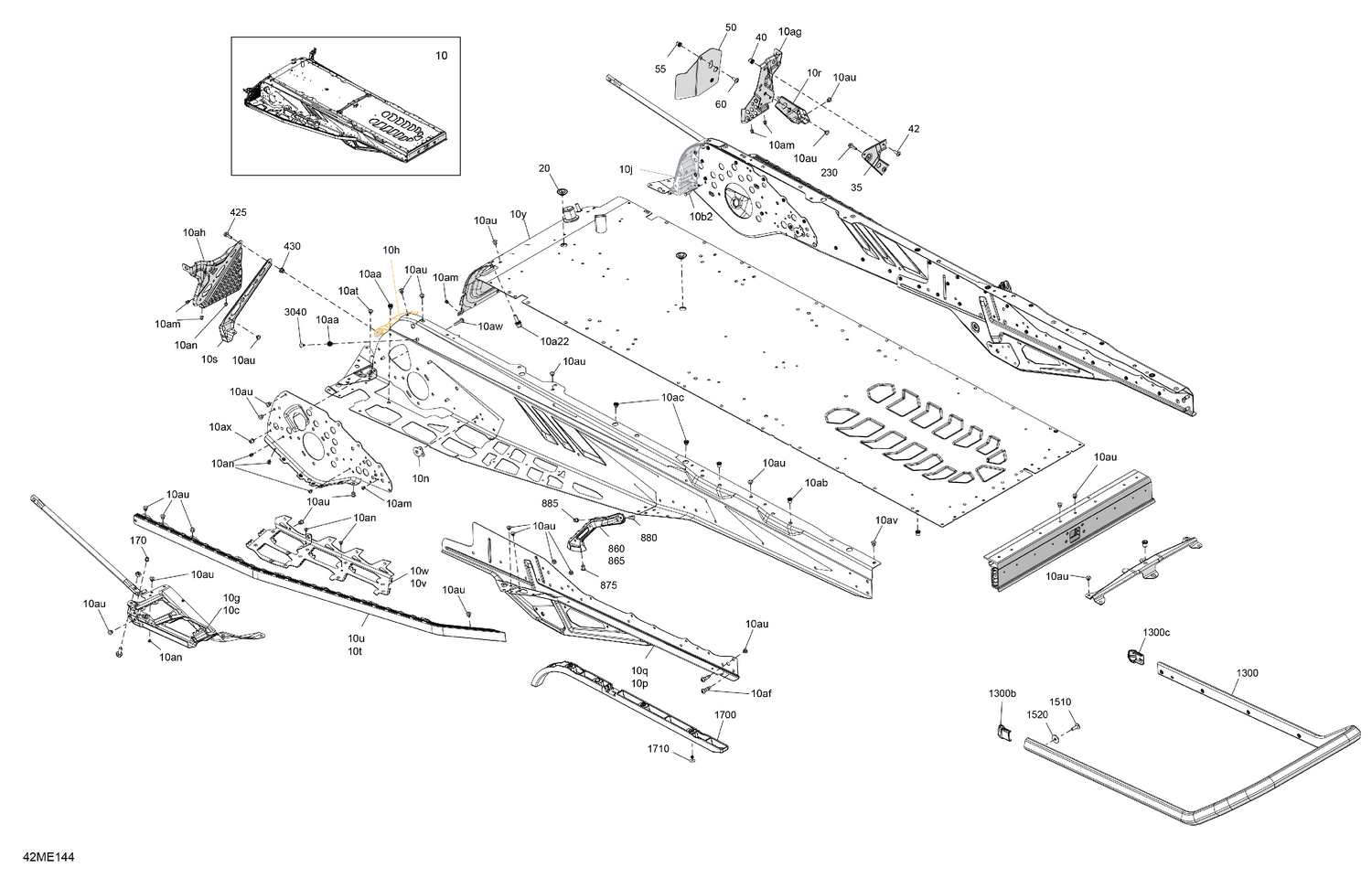

| Ref | Part Number | Description |
|---|
| 10a22 |
250300652 |
Protruding Stud M8 x 22 |
| 10aa |
605636003 |
Clinch Nut M6 Hexsert |
| 10ab |
293450275 |
Insert |
| 10ac |
605636003 |
Clinch Nut M6 Hexsert |
| 10af |
250001151 |
Torx Button Head Screw M8 X 25 |
| 10ag |
518331822 |
RH Footrest |
| 10ah |
518332978 |
LH Footrest |
| 10am |
390909100 |
Avex Rivet |
| 10an |
390909200 |
Avex Rivet |
| 10at |
293150264 |
Rivet Ornit 6,5 X 10.5 |
| 10au |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 10av |
293150266 |
Ornit Rivet 6,5 X 14.5 |
| 10aw |
293150154 |
Magna-Grip Rivet 6.4 X 65,9 |
| 10ax |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 10b2 |
250300027 |
Clinch Stud M6 X 20 |
| 10c |
518332803 |
Deep Black, RH Footrest Reinforcement |
| 10g |
518332802 |
Deep Black, LH Footrest Reinforcement |
| 10h |
518329368 |
LH Frame Corner 20 |
| 10j |
518329369 |
RH Molded Spacer |
| 10n |
518335959 |
Front Suspension Arm Reinforcement This part replaces 518329659. |
| 10p |
518333792 |
RH Rear Suspension Support |
| 10q |
518333791 |
LH Rear Suspension Support |
| 10r |
518329789 |
RH Footrest Reinforcement |
| 10s |
518332924 |
Deep Black, LH Chassis Reinforcement |
| 10t |
518329648 |
RH Roller |
| 10u |
518328452 |
LH Roller |
| 10v |
518334842 |
Central Rear Tunnel Reinforcement |
| 10w |
518334843 |
LH Central Reinforcement Tunnel |
| 10y |
518335119 |
Radiator Tunnel 154 |
| 20 |
293730052 |
Black, Plug |
| 35 |
518331727 |
RH Stirrup Reinforcement |
| 40 |
293450275 |
Insert |
| 42 |
250000717 |
Torx Head Screw M6 X 16 |
| 50 |
518331823 |
Heat Shield |
| 55 |
293450275 |
Insert |
| 60 |
250000717 |
Torx Head Screw M6 X 16 |
| 170 |
293450267 |
Insert M5 - 0.8 |
| 230 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 425 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 430 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 860 |
518335168 |
Deep Black, LH Rear Footrest Reinforcement |
| 865 |
518335169 |
Deep Black, RH Rear Footrest Reinforcement |
| 875 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 880 |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 885 |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 1300b |
520001837 |
LH Cap |
| 1300c |
520001841 |
Cap |
| 1510 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1520 |
224061201 |
Flat Washer |
| 1700 |
518329982 |
Front Protector |
| 1710 |
293150308 |
Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
