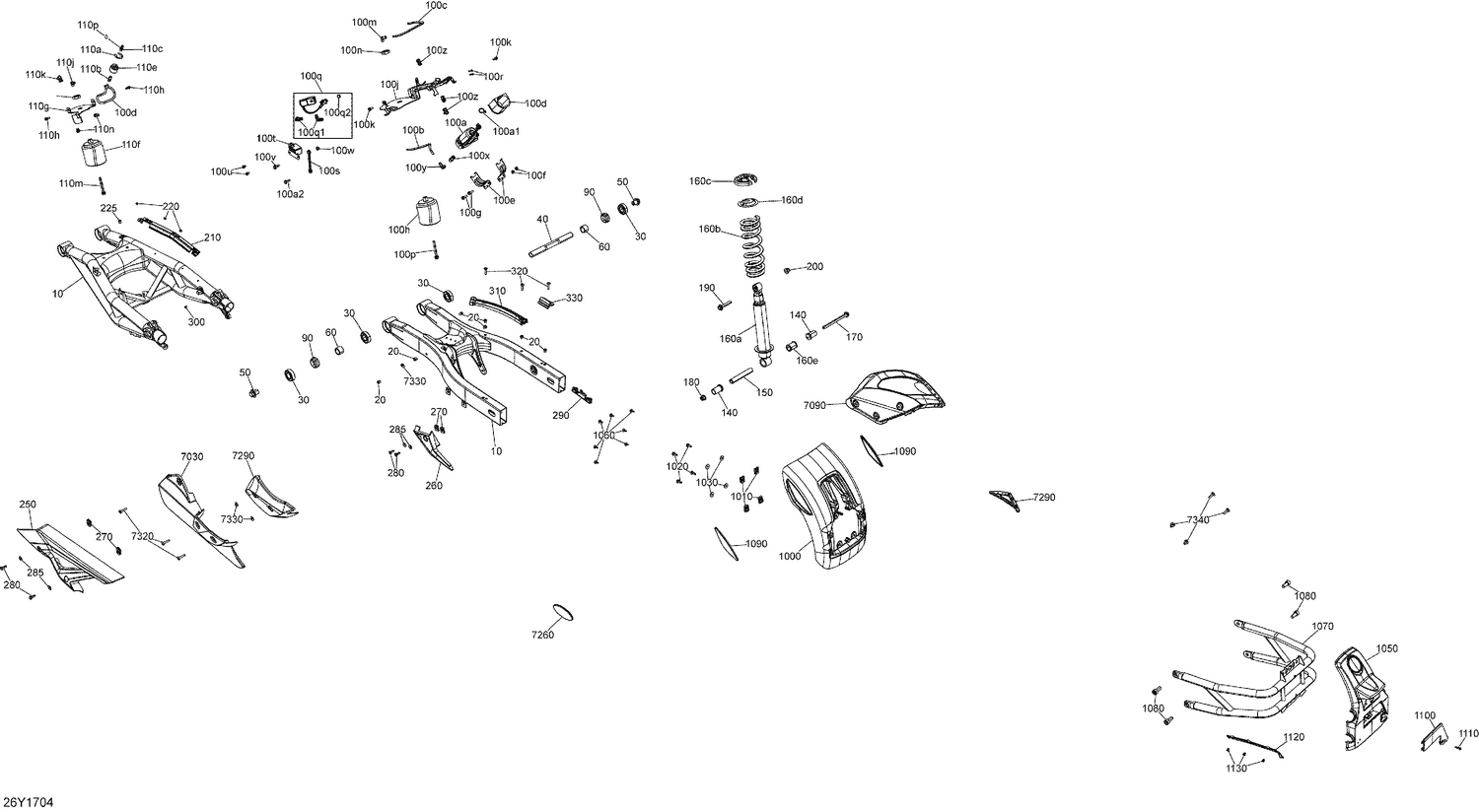

08- Suspension, Rear - All Models

08- Suspension, Rear - All Models

Parts (7)

RefPart NumberDescription
30 293350115 Ball Bearing This part replaces 293350055.
40 706001182 Swing Arm Axle
50 706001579 Bolt M20
60 706001152 Spacer
90 706001366 Sleeve
190 207605554 Hex. Flange Screw M10 X 55
200 233201464 Hex. Flange Elastic M10 x 1.5
